All SARGENT Products

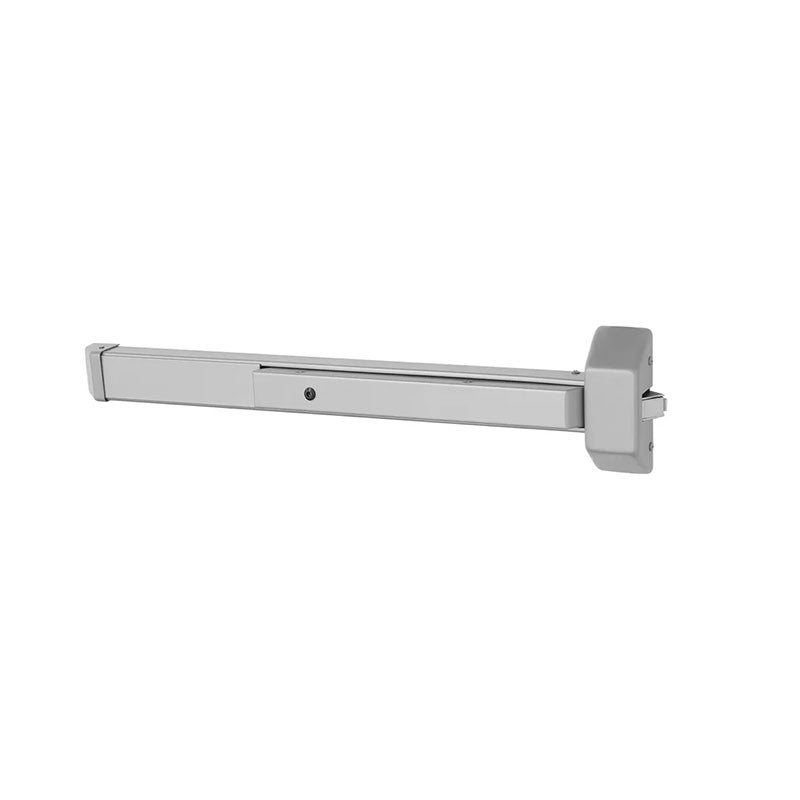

Sargent 3828-E Rim Exit Device, Exit Only, 24-32" Device, Allen Key Dogging, Non-Handed

  • SKU: 3828EEB
Sargent 3828-E-EN Rim Exit Device
Sargent 3828-E-EB Rim Exit Device
Sargent 3828-E-EN Rim Exit Device
Sargent 3828-E-EB Rim Exit Device
All SARGENT Products

Sargent 3828-E Rim Exit Device, Exit Only, 24-32" Device, Allen Key Dogging, Non-Handed

  • SKU: 3828EEB
$460.94/ea
Available (3‑4 Weeks)
3-4 Weeks Lead Time
Finish: EB Dark Bronze Enamel (690)
Handing Guide:
handing chart image

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 3828-E Rim Exit Device, Exit ...
Quantity
–
+
$460.94
Sargent 28 Series Trims for 30 Series...
Quantity
–
+
From $217.70
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
From $373.39
Total
The Sargent 3828-E is a 32" Wide Stile Rim Exit Device that is Exit Only when just a Bar, but can be Multi-Function when paired with Sargent 28 Series Trims, is Allen Key Dogging, and is for use with 24"-32" door widths. The Sargent 3828-E Is Non-Handed and its Seven Functions are Determined By The Function Of The Trim.


Multi-Function Device: Trims below decide the function of the device;
Lever Trims:
  • 28-C-LL Classroom - Key in lever locks or unlocks lever.
  • 28-K-LL Night Latch - Key in Lever Retracts latchbolt.
  • 28-N-LL Night Latch - Lever operates only when key is in cylinder and turned.
  • 28-D-LL Dummy - Lever Rigid at all times & no outside trim
  • 28-L-LL Passage - Latchbolt operated by lever. (No Cylinder)
Knob Trims:
  • 28-C-OB Classroom - Key in knob locks or unlocks knob.
  • 28-K-OB Night Latch - Key in knob retracts latchbolt.
  • 28-L-OB Passage - Latchbolts operated by knob. (No Cylinder)
 Pull and Plate Trims:
  • 814-HTB Night Latch -Outside by pull and key. (3828 only)
  • 810-GTB Exit Only with Pull - Outside pull when push bar is locked down.
  • 802-GTB Exit Only - Black plate to cover 161 cutout.


    Sargent 3828 Series Rim Exit Devices
    A rugged exit device in a rim design.

    • Outside Trim: 28 series lever and rose trims, GTB Pulls and plates, OB knob and trims, and Thumb Piece trims
    • Mounting: Furnished standard with wood and machine screws; Available with through bolts and mortise nuts
    • Cover: steel
    • Chassis: Nonferrous alloy
    • Rail Assembly: Roll formed steel
    • End Cap: Steel
    • Hand: Non-handed
    • Latchbolt: Stainless steel 3/4" (19mm) throw
    • Strike: 649 packed standard
    • Dogging Feature: Allen-type key furnished standard (non-fire rated devices only)



    Manufacturer Sargent
    SKU 3828E
    Unit of Measure Each
    Finish 689/US28 or 690/US20
    Finish Description Aluminum Painted or Dark Bronze Painted

    Physical Appearance Wide Stile Pushpad
    Device Type Rim
    Mechanical Function Exit Only
    Device Length 32"
    Hand Non-Handed
    Dogging Options Allen Key Dogging
    Includes Trim No
    Trim Type Less trim
    Includes Cylinder(s) No
    Cylinder Type Non-Keyed
    Door Width 24" to 32"
    Fire Rated No
    Reversible Yes
    Product Type Rim Exit Devices

    Product Cut Sheet

    Panic Handing Chart
