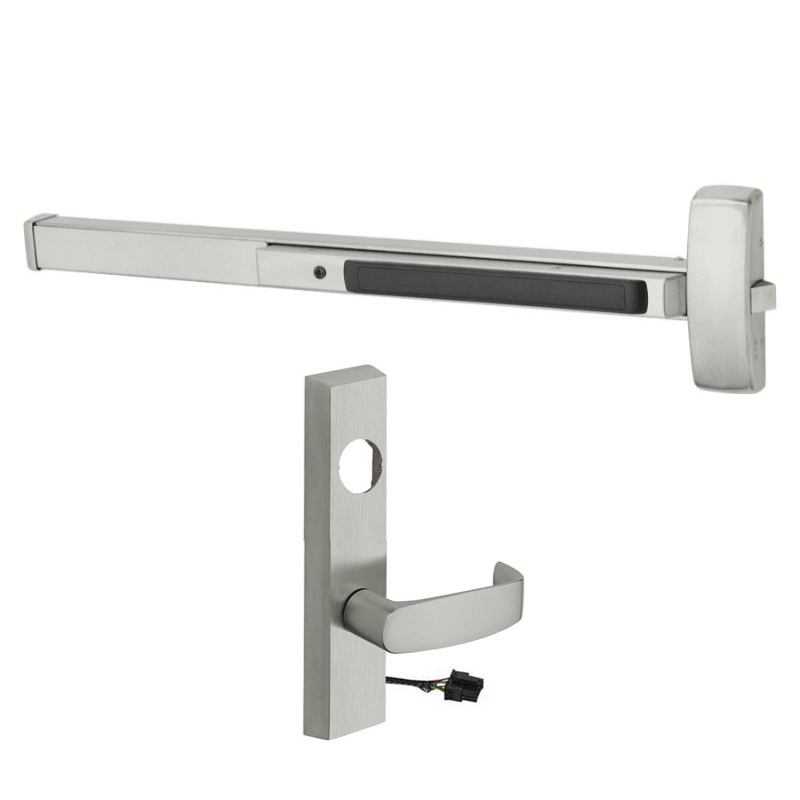

Sargent 55-56-70-8876-F-ETL-24V Rim Exit Device, 24V Fail Secure, L-Lever, PWR off Unlocks Lever Key retracts Latch, Electric Latch Retraction, Request To Exit, 33-36 Inch Door, SFIC Cyl Less Core, US32D Stainless Steel Finish

The Sargent 55-56-70-8876-F-ETL-24V Rim Exit Device is a 24V Fail Secure device specifically designed for 33-36 inch doors. It features an L-Lever which can be unlocked by powering off, allowing the key to retract the latch. This device also includes electric latch retraction and a request-to-exit function. Compatible with SFIC Cylinders, core not included.

76 Electrified ET Trim - Fail Secure
Power Off, Locks Lever, SFIC Cyl Less Core

Sargent 55-56-70-8876-F-ETL-24V-US32D is a Wide Stile Rim Panic Bar With Electrified Trim Is Handed LHR Or RHR, US32D Finish, and in Grade 1.

8800 Series Rim Exit Devices

The 8800 series is designed for standard-width stile applications on wood and metal doors.

Door Types: Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" specify thickness and order as a 31- prefix.

Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Features:

• Single-point rim latching device
• Single door & double door applications with mullions
• Quiet operation and solid security
• Devices are ANSI A156.3 - Grade 1
• UL Fire and Panic listed
