All Sargent Products

Sargent 55-8813-F-ETJ Rim Exit Device, Classroom Function, Request To Exit, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder

  • SKU: 558813FETJUS32DLHRLC
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,822.26/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 55-8813-F-ETJ Rim Exit Device...
Quantity
–
+
From $1,822.26
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

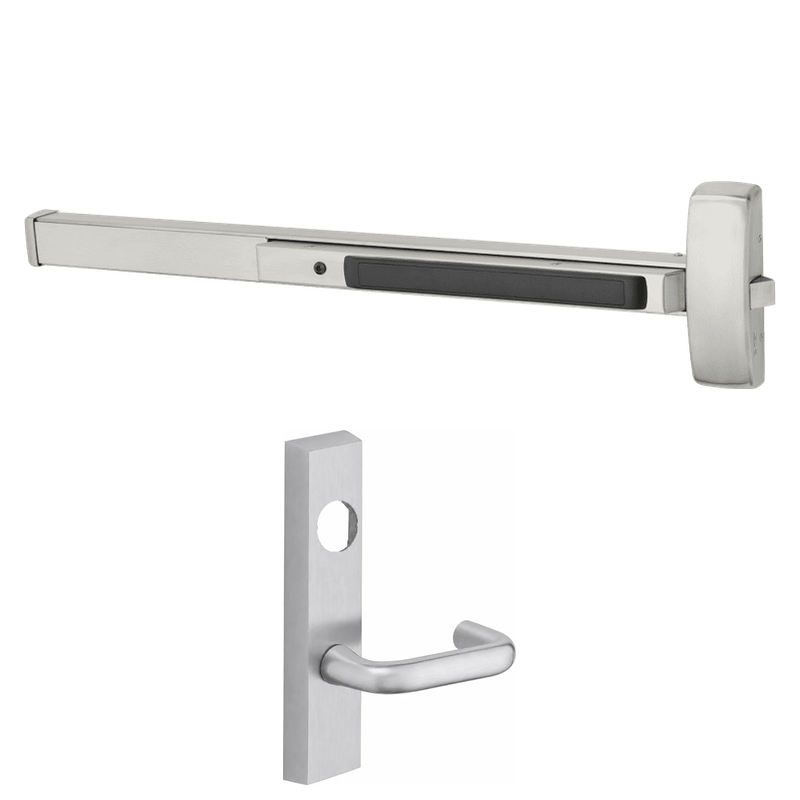

Sargent 55-8813-F-ETJ Rim Exit Device, Classroom Function, Request To Exit, ET Control, J Lever, 33"-36" Door Width, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 55-8813-F-ETJ is a Grade 1 rim exit device built for demanding commercial and institutional openings that need both security and reliable egress monitoring. Configured in Classroom (ET) function with the J lever trim, it fits doors from 33" to 36" in width and includes an integrated Request to Exit (REX) signal switch for tying the opening into access control or alarm systems. Hex key dogging allows the device to be held in a push-pull state for scheduled free passage, while the "less cylinder" designation lets you match the lock to your existing keying system. It ships prepped for fire-rated applications, making it a dependable choice for schools, offices, and healthcare facilities.

Features

  • Grade 1 rim exit device engineered for heavy-duty commercial traffic.
  • Classroom (ET) function with J lever trim for controlled outside access.
  • Built-in Request to Exit switch for integration with access control and monitoring systems.
  • Sized for 33" to 36" door widths.
  • Hex key dogging holds the latch retracted for push-pull operation.
  • Supplied less cylinder so the device can match existing keying.
  • Fire-rated construction suitable for labeled door assemblies.

Functional Details

The Classroom function allows the outside lever to be locked or unlocked by key, while the Request to Exit switch sends a signal each time the device is operated from the inside, letting connected security systems recognize authorized egress and shunt alarms accordingly.

  • Request to Exit (REX) switch signals valid egress to access control systems.
  • Classroom function: outside lever locked or unlocked by key; latchbolt retracted by lever when unlocked.
  • Inside lever or touchpad always allows free egress.

Arm Type Details

The ETJ designation refers to the ET escutcheon trim paired with the J lever design, providing a comfortable, ADA-friendly lever pull for controlled entry from the exterior side of the opening.

Included Components

Device ships with the rim exit chassis, ET control trim with J lever, Request to Exit switch, and hex key dogging hardware. Cylinder is ordered separately.

Manufacturer Sargent
SKU 55-8813-F-ETJ
Function Classroom (ET)
Grade Grade 1
Trim / Lever ET Control with J Lever
Door Width Range 33" - 36"
Dogging Type Hex Key Dogging
Cylinder Less Cylinder
UL Listing Type Fire Rated
Origin USA
Unit of Measure Each
Limited Warranty Yes
Device Type Rim Exit Device
Series 8800 Series
Function Code 13 (Classroom)
Mounting Surface Rim Mounted
Latchbolt Deadlocking Pullman Type
Switch Type Request to Exit (REX)
Dogging Mechanism Hex Key
Door Width Range 33" - 36"
Fire Rating Fire Rated (F prefix)
Trim Prep ET Control Trim
Lever Style J Lever
