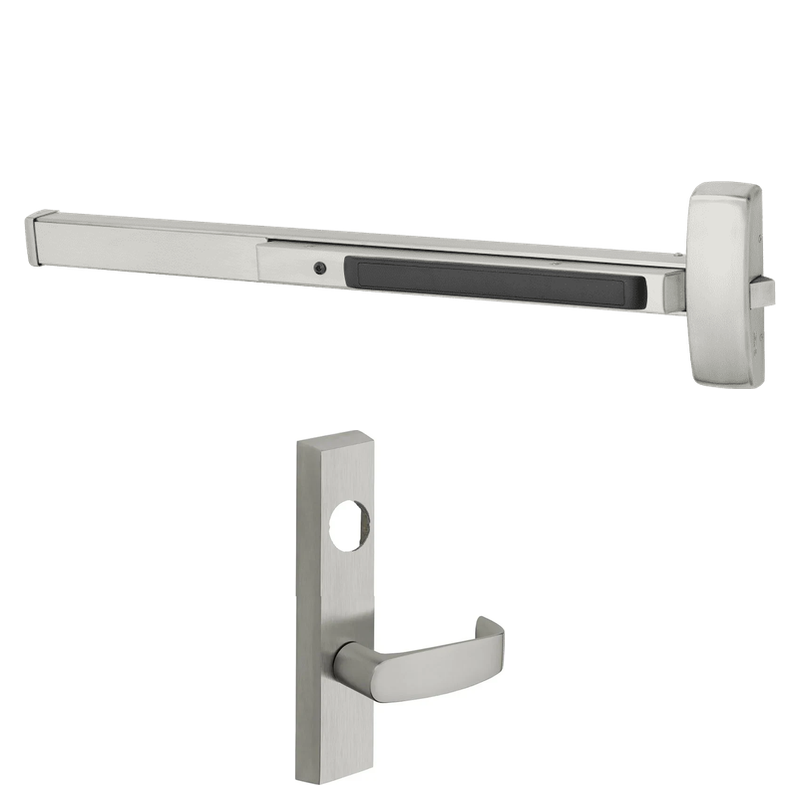

Sargent 55-8813-F-ETL Rim Exit Device, Classroom Function, Request To Exit, ET Control, L Lever, 33"-36" Door Width, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 55-8813-F-ETL is a Grade 1 rim exit device built for busy commercial openings that require secure classroom control along with a request-to-exit signal. Designed for 33" to 36" wide doors, it pairs the dependable 8800 Series rim mechanism with the ET trim and an L lever for comfortable, code-compliant egress. The classroom function lets authorized staff lock or unlock outside access with a key, while the integrated request-to-exit switch communicates with access control and alarm systems. Hex key dogging holds the pushbar depressed for push-pull operation during peak traffic, and the device ships less cylinder for flexible keying. Built for durability, security, and smooth daily use.

Features

• Grade 1 rim exit device rated for high-traffic commercial and institutional doors.
• Classroom (8813) function with ET trim and L lever for secure, convenient outside control.
• Built-in request-to-exit signal switch for integration with access control systems.
• Sized for doors measuring 33" to 36" in width.
• Hex key dogging allows the latch to be held retracted for push-pull operation.
• Supplied less cylinder to accommodate your preferred keying system.

Functional Details

The 8813 classroom function provides latching with key-controlled outside access, while the request-to-exit (RX) switch reports pushbar activation to building security systems. This lets the opening remain secure from the outside while signaling authorized egress without triggering an alarm.

• Classroom – Latchbolt retracted by lever unless outside lever is locked by key.
• Request to exit switch signals use of the exit device for access control.
• Outside lever is locked and unlocked by key.

Arm Type Details

The ETL trim configuration uses the L lever design, providing an ergonomic, ADA-friendly pull on the exterior while the rim exit device handles interior egress through the pushbar.

Included Components

This device includes the 8800 Series rim exit device chassis, ET trim with L lever, and the integrated request-to-exit switch. A cylinder is not included and must be ordered separately for keyed functions.
