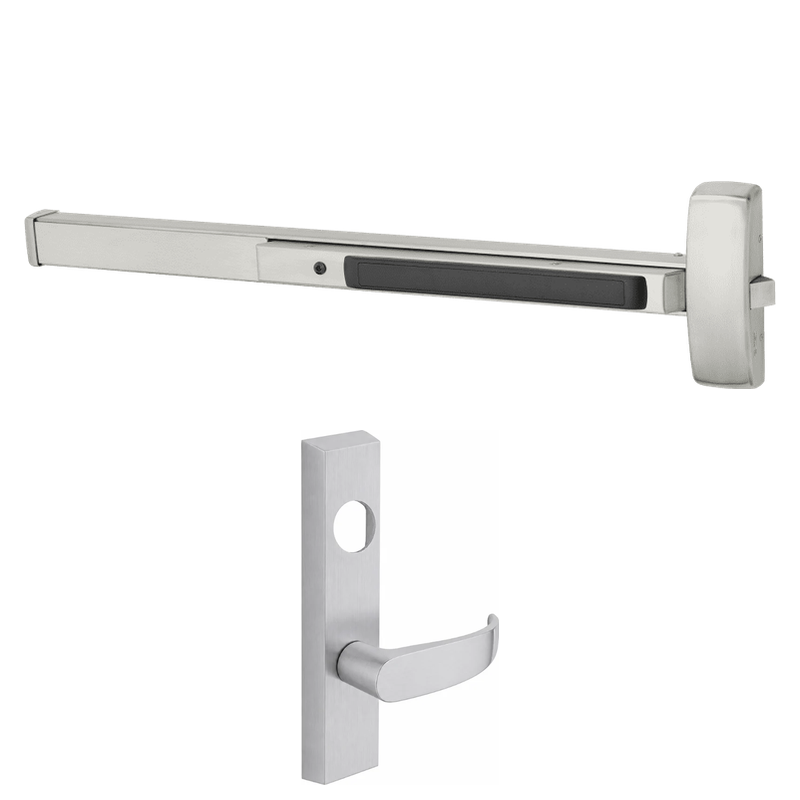

Sargent 55-8813-F-ETP Rim Exit Device, Classroom Function, Request To Exit, ET Control, P Lever, 33"-36" Door Width, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 55-8813-F-ETP is a Grade 1 rim exit device engineered for high-traffic commercial and institutional openings where secure classroom access and reliable monitoring are essential. Built for doors measuring 33" to 36" wide, it pairs the 8800 Series fire-rated chassis with ET trim and the P lever design for durable everyday use. The integrated Request to Exit (RX) switch signals access control systems when the push bar is operated, while hex key dogging allows the latch to be held retracted for push-pull operation during peak hours. Supplied less cylinder, this device offers the flexibility to match existing keying systems while delivering dependable classroom function security.

Features

  • Grade 1 rim exit device suited for demanding commercial and institutional applications.
  • Classroom (8813) function provides secure outside trim operation with key control.
  • Built-in Request to Exit (RX) switch integrates with access control and monitoring systems.
  • ET trim with P lever offers a comfortable, durable gripping surface.
  • Hex key dogging retracts and holds the latch for convenient push-pull entry.
  • Sized for door widths of 33" to 36".
  • Fire-rated (F) construction for life-safety compliance.
  • Shipped less cylinder for compatibility with existing keying systems.

Functional Details

The 8813 classroom function lets the outside lever retract the latch when unlocked by key, while the inside push bar always allows free egress. The Request to Exit feature uses an internal switch that activates when the touchpad is pressed, sending a signal to the access control system to permit egress and suppress alarms.

  • Request to Exit (RX) switch monitors use of the exit device touchpad.
  • Classroom function: outside lever is locked or unlocked by key; latch retracted by key.
  • Inside touchpad always allows free egress.

Arm Type Details

The ET trim design incorporates the P lever, a contoured lever handle mounted to the escutcheon trim. This configuration provides ergonomic outside control for classroom function openings and withstands heavy institutional use.

Manufacturer Sargent
SKU 55-8813-F-ETP
Grade Grade 1
Device Type Rim Exit Device
Function Classroom (8813)
Trim ET Control, P Lever
Cylinder Less Cylinder
Dogging Hex Key Dogging
Fire Rating Fire Rated (F)
Origin USA
Unit of Measure Each
Series 8800 Series
Device Style Rim mounted
Door Width Range 33" - 36"
Switch Type Request to Exit (RX)
ANSI/BHMA Grade Grade 1
Egress Type Single-motion free egress
Latching Deadlatching latchbolt
Dogging Type Hex key
Mounting Surface rim mount
Fire Label UL/cUL listed for fire doors
Trim Function Classroom key control
