All Sargent Products

Sargent 55-8813-G-ETB Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Hex Key Dogging, Less Cylinder

  • SKU: 558813GETBUS32DLHRLC
Sargent 55-8813-G-ETB Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Hex Key Dogging, Less Cylinder, US32D-630 Satin Stainless Steel
Sargent 55-8813-G-ETB Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Hex Key Dogging, Less Cylinder, US32D-630 Satin Stainless Steel
Sargent 55-8813-G-ETB Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Hex Key Dogging, Less Cylinder, US10B-613 Oil Rubbed Bronze
Sargent 55-8813-G-ETB Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Hex Key Dogging, Less Cylinder, US10BE-613E Dark Oxidized Bronze
Sargent 55-8813-G-ETB Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Hex Key Dogging, Less Cylinder, BSP Black Suede Powder Coat
Zoomed view
All Sargent Products

Sargent 55-8813-G-ETB Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Hex Key Dogging, Less Cylinder

  • SKU: 558813GETBUS32DLHRLC
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,822.26/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 55-8813-G-ETB Rim Exit Device...
Quantity
–
+
From $1,822.26
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

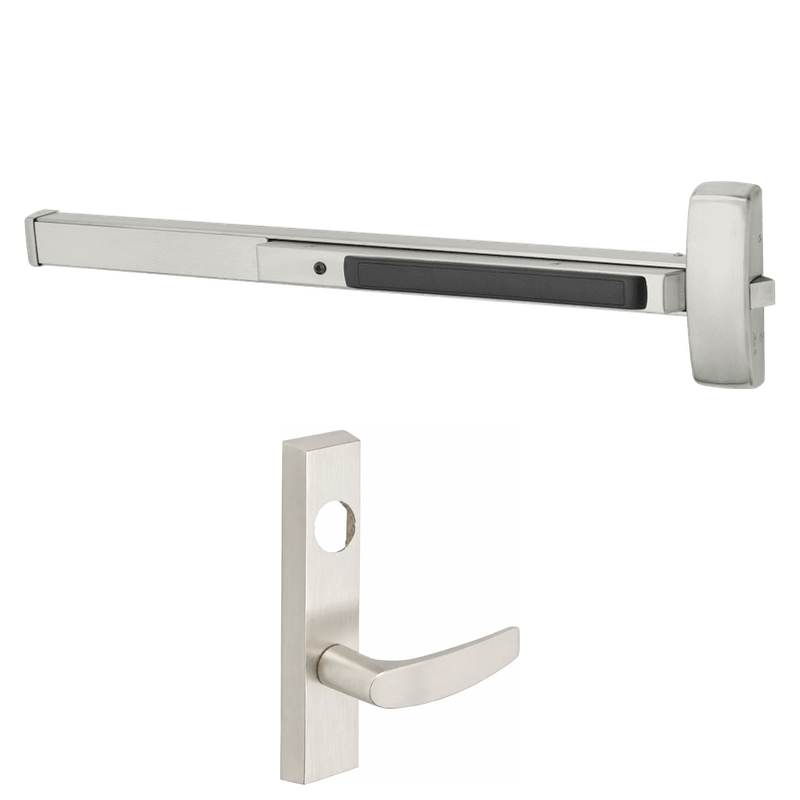

Sargent 55-8813-G-ETB Rim Exit Device, Classroom Function, Request To Exit, ET Control, B Lever, 43"-48" Door Width, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 55-8813-G-ETB is a Grade 1 rim exit device built for demanding commercial and institutional openings measuring 43 to 48 inches wide. Configured for classroom function with ET trim and the B lever, it allows free egress at all times while controlling entry from the exterior via key. The integrated 55 Request to Exit option provides a signal output for access control and monitoring systems, making it a strong fit for schools, healthcare facilities, and secure corridors. Hex key dogging holds the pushbar in a retracted position for push-pull operation during high-traffic periods, and the unit ships less cylinder for flexible keying.

Features

  • Grade 1 rim exit device engineered for heavy-duty commercial and institutional use.
  • Classroom function controls entry from the outside by key while permitting free egress at all times.
  • Built-in Request to Exit (55) switch integrates with access control and alarm systems.
  • ET trim with the B lever design for comfortable, code-compliant operation.
  • Sized for door widths from 43 to 48 inches.
  • Hex key dogging allows the latch to be held retracted for push-pull function.
  • Supplied less cylinder to accommodate the end user's preferred keying.

Functional Details

The classroom function lets authorized users unlock or lock the outside trim with a key, while the inside pushbar always allows immediate, free egress. The Request to Exit feature sends an electrical signal when the device is operated, coordinating with building security.

  • Outside lever locked or unlocked by key.
  • Latchbolt retracted by lever when unlocked.
  • Free egress at all times from inside.
  • Request to Exit signal provided by internal switch.

Arm Type Details

This is a rim-mounted exit device, meaning the mechanism and latch mount to the surface of the door and engage a strike attached to the frame. Rim configurations are among the most straightforward exit devices to install and service, offering reliable latching for single doors or the active leaf of a pair.

Included Components

The device includes the rim exit chassis, pushbar, ET trim with B lever, and mounting hardware. A cylinder is not included and must be ordered separately.

Manufacturer Sargent
SKU 55-8813-G-ETB
Grade ANSI/BHMA Grade 1
Device Type Rim Exit Device
Function Classroom
Trim ET Control, B Lever
Dogging Hex Key Dogging
Cylinder Less Cylinder
Origin Made in USA
Unit of Measure Each
UL Listing Type Panic Hardware (UL 305)
ANSI Number ANSI/BHMA A156.3
BAA Qualified Yes
Limited Warranty Yes
Door Width Range 43 in. to 48 in.
Device Series 8800 Series
Mounting Type Rim
Latchbolt Type Deadlocking latchbolt
Latchbolt Throw 3/4 in.
Minimum Stile Width Consult manufacturer template
Dogging Type Hex Key
Request to Exit Option 55 (built-in switch)
Handing Non-handed / Reversible
Door Type Single or active leaf of pair
Fire Rating Non-fire rated (dogging version)
Product Cut Sheet

Panic Handing Chart
