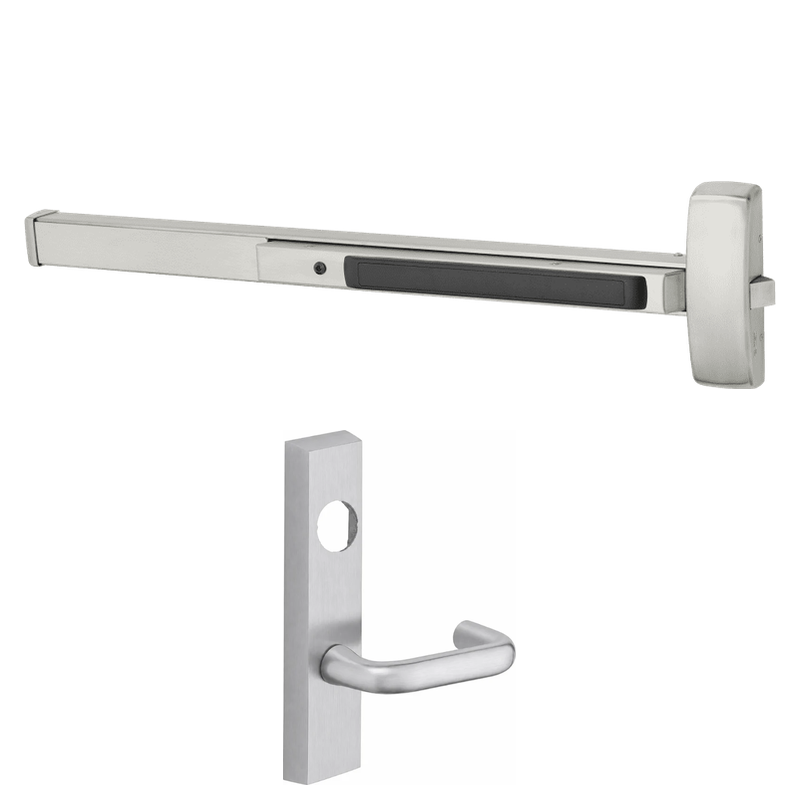

Sargent 55-8813-G-ETJ Rim Exit Device, Classroom Function, Request To Exit, ET Control, J Lever, 43"-48" Door Width, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 55-8813-G-ETJ is a Grade 1 rim exit device built for demanding commercial openings measuring 43 to 48 inches wide. Configured for classroom function with ET control trim and the J lever design, it allows key-controlled access from the outside while always permitting free egress through the push rail. The integrated request-to-exit switch (the 55 prefix) provides a signal to access control or monitoring systems, making it a solid choice for schools, offices, and other security-conscious facilities. Hex key dogging holds the latch retracted for push-pull operation during high-traffic periods. This unit ships less cylinder, giving you the flexibility to match your existing keying system.

Features

  • Grade 1 rim exit device rated for heavy-duty commercial use.
  • Classroom function controls access with a key while allowing free egress at all times.
  • Built-in request-to-exit switch for integration with access control and monitoring systems.
  • ET control trim paired with the durable J lever design.
  • Sized for wider doors from 43 to 48 inches.
  • Hex key dogging retracts the latch for convenient push-pull operation.
  • Supplied less cylinder for compatibility with your keying system.

Functional Details

The classroom function (8813) lets authorized users unlock or lock the outside lever with a key while the interior push rail remains active for immediate egress. The 55 request-to-exit option adds a monitoring switch that reports when the device is used to exit.

  • Key outside controls lever.
  • Inside lever is always free for immediate egress.
  • Latchbolt is retracted by lever or by key.

Arm Type Details

This device uses the ET control trim with the J lever style, providing a sturdy lever pull that operates the latch when the outside is unlocked. The lever design matches Sargent's broader ET escutcheon trim family for a consistent appearance across an opening.

Manufacturer Sargent
SKU 55-8813-G-ETJ
Device Type Rim Exit Device
Function Classroom
Grade ANSI/BHMA Grade 1
Trim ET Control, J Lever
Dogging Hex Key
Cylinder Less Cylinder
Origin USA
Unit of Measure Each
Limited Warranty Yes
Door Width Range 43 in. to 48 in.
Device Series 8800 Series
Mounting Rim Mounted
Latchbolt Throw 3/4 in.
Minimum Stile Width 3-1/2 in.
Request To Exit Integrated Switch (55 Option)
Handing Non-Handed
Fire Rating Non-Fire (Dogging Equipped)
ANSI/BHMA Standard A156.3
Door Type Wood or Metal
