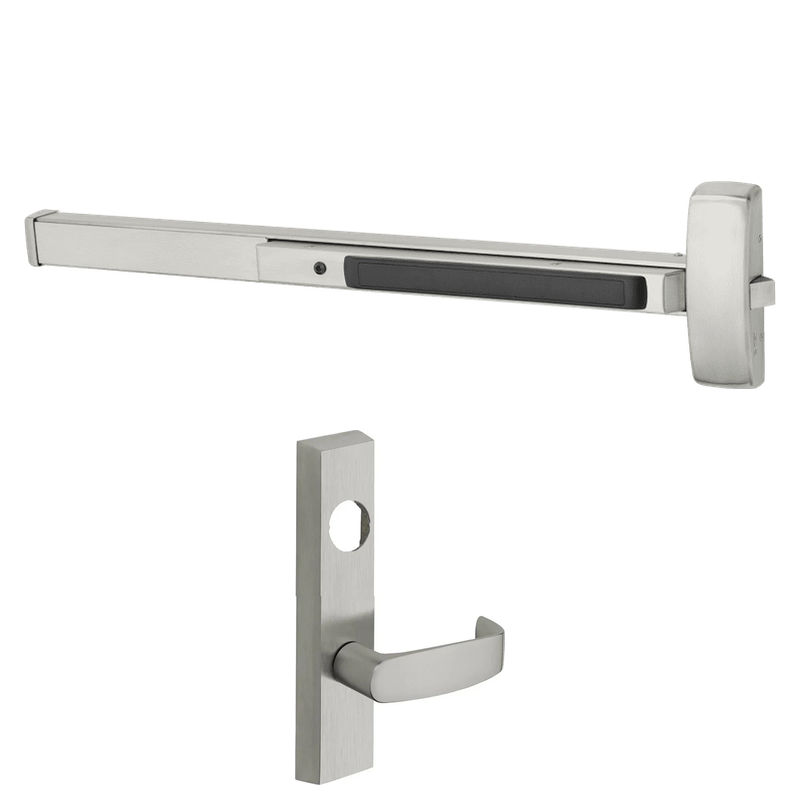

Sargent 55-8813-G-ETL Rim Exit Device, Classroom Function, Request To Exit, ET Control, L Lever, 43"-48" Door Width, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 55-8813-G-ETL is a Grade 1 rim exit device built for high-traffic commercial openings up to 48 inches wide. Designed for classroom function with ET control and the L lever trim, it allows secured access from the outside while permitting free egress at all times. The integrated 55 Request to Exit (REX) switch signals door activity to access control and alarm systems, making it well suited for secure facilities. Hex key dogging lets staff hold the pushbar retracted for push-pull operation during peak periods. Supplied less cylinder, it offers flexible keying to match existing hardware across your building.

Features

  • Grade 1 rim exit device rated for heavy-duty commercial use.
  • Classroom function provides keyed control of the outside lever while allowing continuous free egress.
  • Factory-installed 55 Request to Exit switch integrates with access control and monitoring systems.
  • ET control with L lever trim for durable, comfortable operation.
  • Hex key dogging holds the pushbar depressed for push-pull convenience.
  • Sized for doors 43 to 48 inches wide.
  • Supplied less cylinder for custom keying flexibility.

Functional Details

Classroom function allows the outside lever to be locked or unlocked by key, while the inside pushbar always permits free egress. The 55 Request to Exit option monitors egress activity electronically to coordinate with the building's security system.

  • Outside lever locked or unlocked by key from the outside.
  • Inside pushbar always allows free egress.
  • Request to exit switch signals use of the device for access control integration.

Arm Type Details

The ET trim with the L lever design offers a vandal-resistant, through-bolted lever assembly that withstands continuous institutional use while maintaining smooth latch retraction.

Included Components

Exit device chassis, ET control with L lever trim, integrated request to exit switch, and hex key dogging hardware. Cylinder is not included and must be ordered separately.

Manufacturer Sargent
SKU 55-8813-G-ETL
Grade ANSI/BHMA Grade 1
Device Type Rim Exit Device
Function Classroom
Trim ET Control, L Lever
Dogging Type Hex Key Dogging
Cylinder Less Cylinder
Origin Made in USA
Unit of Measure Each
UL Listing Type UL Listed for Panic Hardware
ANSI Number ANSI/BHMA A156.3
BAA Qualified Yes
Limited Warranty Yes
Door Width Range 43 in. to 48 in.
Device Series 80 Series
Function Number 13 (Classroom)
Mounting Rim (Surface) Mount
Latchbolt Type Deadlatching Pullman
Latchbolt Throw 3/4 in.
Switch Type SPDT Request to Exit
Switch Rating Up to 125 VAC / 24 VDC
Minimum Stile Width 5 in.
Handing Non-handed
Fire Rating Panic hardware (non-fire)
