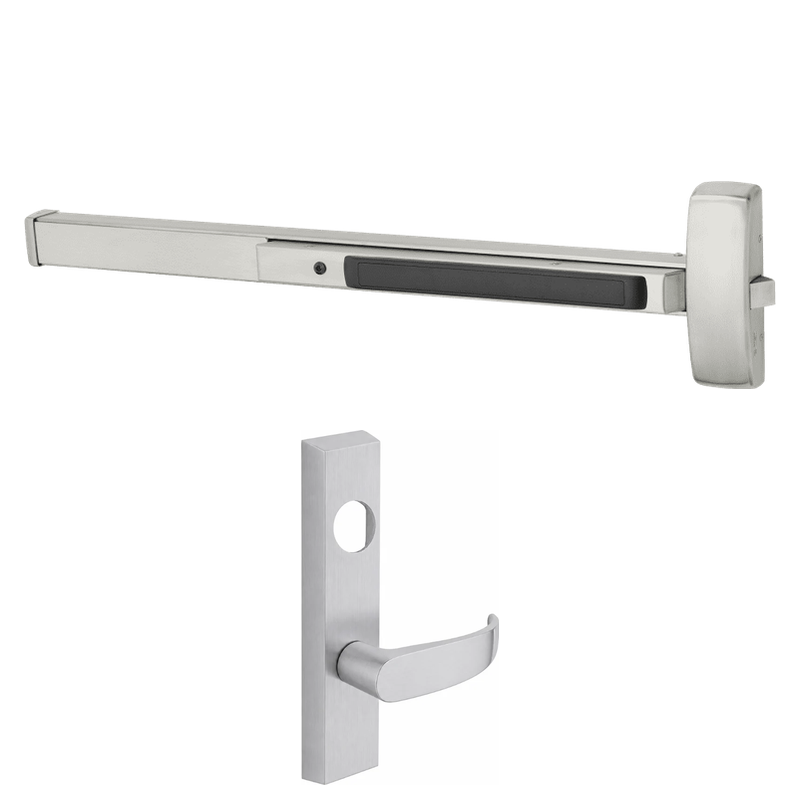

Sargent 55-8813-G-ETP Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Hex Key Dogging, Less Cylinder

  • SKU: 558813GETPUS32DLHRLC
Sargent 55-8813-G-ETP Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Hex Key Dogging, Less Cylinder, US32D-630 Satin Stainless Steel
Sargent 55-8813-G-ETP Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Hex Key Dogging, Less Cylinder, US32D-630 Satin Stainless Steel
Sargent 55-8813-G-ETP Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Hex Key Dogging, Less Cylinder, US10B-613 Oil Rubbed Bronze
Sargent 55-8813-G-ETP Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Hex Key Dogging, Less Cylinder, US10BE-613E Dark Oxidized Bronze
Sargent 55-8813-G-ETP Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Hex Key Dogging, Less Cylinder, BSP Black Suede Powder Coat
Zoomed view
All Sargent Products

Sargent 55-8813-G-ETP Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Hex Key Dogging, Less Cylinder

  • SKU: 558813GETPUS32DLHRLC
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,822.26/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 55-8813-G-ETP Rim Exit Device...
Quantity
–
+
From $1,822.26
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

Sargent 55-8813-G-ETP Rim Exit Device, Classroom Function, Request To Exit, ET Control, P Lever, 43"-48" Door Width, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 55-8813-G-ETP is a Grade 1 rim exit device built for classroom applications where dependable security and code-compliant egress are essential. Designed for doors measuring 43 to 48 inches wide, it pairs classroom (ET) function with the P lever trim and a built-in Request to Exit (RX) switch, allowing it to integrate with access control and monitoring systems. Hex key dogging lets staff hold the latch retracted for push/pull operation during high-traffic periods. Supplied less cylinder, it accommodates your preferred keying hardware. With Sargent's heavy-duty construction and reputation for durability, this device is a reliable choice for schools and institutional openings.

Features

  • Grade 1 rim exit device engineered for demanding commercial and institutional use.
  • Classroom (ET) function with P lever trim provides secure, controlled access.
  • Built-in Request to Exit (RX) switch enables integration with access control and monitoring systems.
  • Sized for doors 43 to 48 inches wide.
  • Hex key dogging allows the latch to be held retracted for free operation.
  • Supplied less cylinder for flexible keying options.

Functional Details

The classroom (ET) function allows the outside lever to be locked or unlocked by key, while the exit device always permits free egress from the secure side. The integrated Request to Exit switch signals building systems when the device is used from the inside.

  • Outside lever locked or unlocked by key.
  • Latchbolt retracted by lever when unlocked or by inside push rail at all times.
  • Request to Exit switch monitors interior egress.

Included Components

The device ships with the 55 series rim exit chassis, ET control with P lever trim, and hex key dogging hardware. A cylinder is not included and must be ordered separately.

Manufacturer Sargent
SKU 55-8813-G-ETP
Grade ANSI/BHMA Grade 1
Device Type Rim Exit Device
Function Classroom (ET)
Trim ETP (P Lever)
Dogging Hex Key
Cylinder Less Cylinder
Origin USA
Unit of Measure Each
UL Listing Type UL Listed Panic Hardware
ANSI Number A156.3
Limited Warranty Yes
Door Width Range 43 in. to 48 in.
Device Series 8800 Series
Mounting Rim (surface) mounted
Latchbolt Type Deadlatching Pullman type
Latchbolt Throw 3/4 in.
Handing Non-handed
Switch Type Request to Exit (RX) monitoring switch
Strike Rim strike included
Maximum Door Width 48 in.
Fire Rating Panic hardware (non-fire rated when dogging is used)
