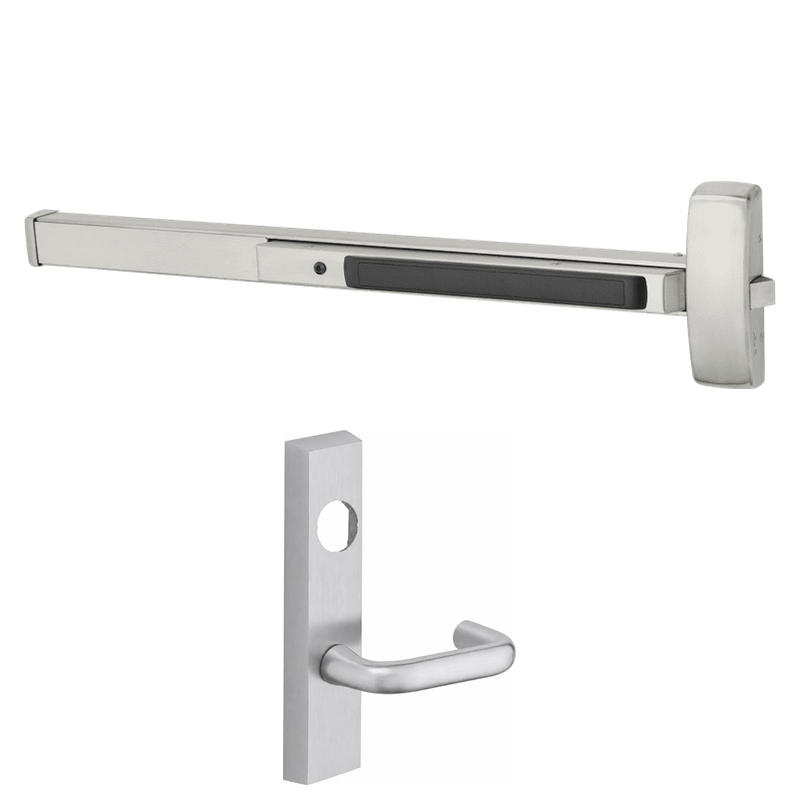

Sargent 55-8813-J-ETJ Rim Exit Device, Classroom Function, Request To Exit, ET Control, J Lever, 37"-42" Door Width, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 55-8813-J-ETJ is a Grade 1 rim exit device built for high-traffic commercial openings that demand reliable security and dependable egress. Configured for classroom function with ET control trim and the J lever design, it suits doors measuring 37 to 42 inches wide and comes prepped for request-to-exit monitoring, making it ideal for access-controlled entrances. The device ships less cylinder, giving you the flexibility to pair it with your facility's preferred keyway. Hex key dogging allows the push bar to be held in a retracted, inactive state for push/pull operation during peak hours. Durable construction ensures long-term performance in schools, offices, and institutional settings.

Features

  • Grade 1 rated rim exit device engineered for demanding commercial applications.
  • Classroom (ET) function with exterior J lever trim for controlled entry and free egress.
  • Fits door widths from 37 to 42 inches.
  • Request-to-exit (RX) switch for integration with access control and monitoring systems.
  • Hex key dogging lets the latch be held retracted for push/pull use.
  • Supplied less cylinder to accommodate your chosen cylinder and keyway.

Functional Details

The classroom function allows the outside lever to be locked or unlocked by key, while the inside push bar always retracts the latch for immediate, free egress. The integrated request-to-exit signal reports when the device is operated from the inside.

  • Classroom function – outside lever controlled by key; inside always allows free egress.
  • Request-to-exit switch monitors push bar activation.
  • Hex key dogging holds the latch retracted for push/pull operation.

Arm Type Details

This rim-mounted exit device installs directly on the surface of the door face, with the latch engaging a surface-mounted strike on the frame for straightforward, reliable operation.

Included Components

The package includes the rim exit device chassis, ET control trim with J lever, request-to-exit switch, hex key dogging mechanism, and standard mounting hardware. A cylinder is not included.

Manufacturer Sargent
SKU 55-8813-J-ETJ
Grade ANSI/BHMA Grade 1
Function Classroom (ET)
Trim/Lever ET Control, J Lever
Door Width Range 37 in. to 42 in.
Dogging Type Hex Key Dogging
Cylinder Less Cylinder
Origin Made in USA
Unit of Measure Each
ANSI Number A156.3
Limited Warranty Yes
Device Type Rim Exit Device
Series 80 Series
Minimum Door Width 37 in.
Maximum Door Width 42 in.
Latchbolt Type Deadlatching, Pullman-type
Latchbolt Throw 3/4 in.
Mounting Surface mounted rim
Request to Exit Built-in RX switch
Dogging Hex key
Handing Non-handed
Fire Rating Non-fire rated (dogging model)
Product Cut Sheet

Panic Handing Chart
