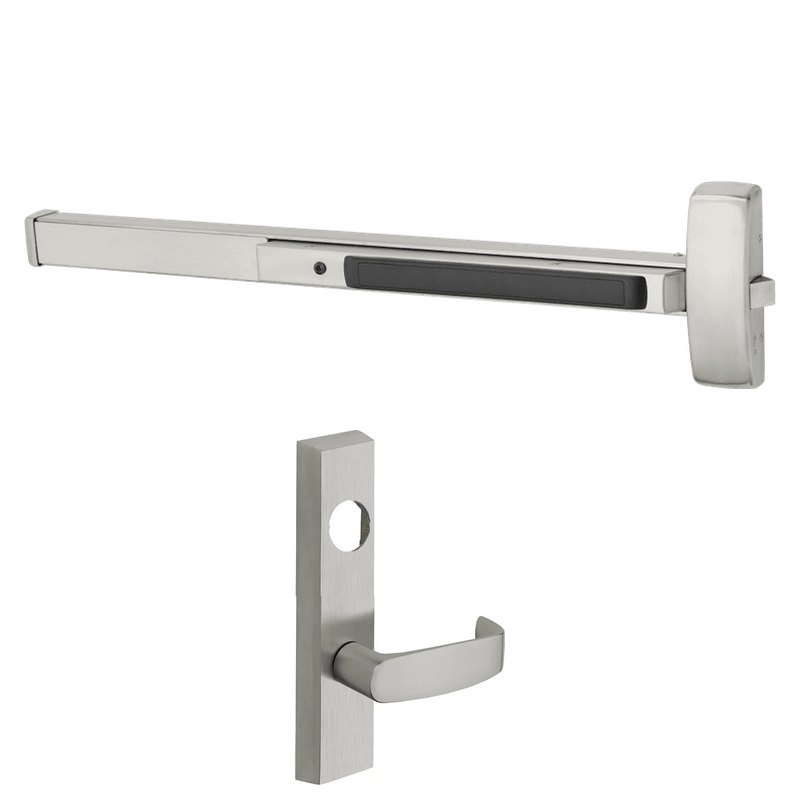

Sargent 55-8813-J-ETL Rim Exit Device, Classroom Function, Request To Exit, ET Control, L Lever, 37"-42" Door Width, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 55-8813-J-ETL is a Grade 1 rim exit device built for demanding commercial openings, engineered for classroom function with an integrated Request to Exit (REX) signal switch. It accommodates doors from 37 to 42 inches wide and pairs push-bar exit security with ET trim and the L lever design for comfortable, code-compliant egress. The hex key dogging feature lets staff hold the latch retracted for push/pull operation during high-traffic periods. Shipped less cylinder, it allows you to match existing keying systems. This device suits schools, offices, healthcare, and other facilities that need reliable access control and dependable single-motion egress.

Features

• Grade 1 rim exit device rated for heavy-duty commercial use.
• Classroom function with ET control and L lever trim for secure, accessible operation.
• Built-in Request to Exit switch for integration with access control and monitoring systems.
• Fits door widths from 37 to 42 inches.
• Hex key dogging to hold the latch retracted for free push/pull access.
• Supplied less cylinder so you can key it to an existing system.

Functional Details

The Request to Exit option adds an internal switch that signals the access control system when the device is operated from the egress side, allowing the door to be released without triggering an alarm. The classroom function controls entry through the outside trim while always permitting free egress.

• Request to Exit (REX) switch monitors operation of the push bar.
• Switch provides a signal to shunt an alarm or release an electric lock.
• Classroom function: outside lever retracts latch unless locked by key; inside push bar always allows exit.

Included Components

This order includes the 55-8813 rim exit device with ET control and L lever trim configured for Request to Exit and hex key dogging. The cylinder is not included and must be ordered separately to match your keying requirements.
