Sargent 55-8813-J-ETP Rim Exit Device, Classroom Function, Request To Exit, For 37-42 Inch Width Door, Hex Key Dogging, Less Cylinder

  • SKU: 558813JETPUS32DLHRLC
Sargent 55-8813-J-ETP Rim Exit Device, Classroom Function, Request To Exit, For 37-42 Inch Width Door, Hex Key Dogging, Less Cylinder, US32D-630 Satin Stainless Steel
Sargent 55-8813-J-ETP Rim Exit Device, Classroom Function, Request To Exit, For 37-42 Inch Width Door, Hex Key Dogging, Less Cylinder, US32D-630 Satin Stainless Steel
Sargent 55-8813-J-ETP Rim Exit Device, Classroom Function, Request To Exit, For 37-42 Inch Width Door, Hex Key Dogging, Less Cylinder, US10B-613 Oil Rubbed Bronze
Sargent 55-8813-J-ETP Rim Exit Device, Classroom Function, Request To Exit, For 37-42 Inch Width Door, Hex Key Dogging, Less Cylinder, US10BE-613E Dark Oxidized Bronze
Sargent 55-8813-J-ETP Rim Exit Device, Classroom Function, Request To Exit, For 37-42 Inch Width Door, Hex Key Dogging, Less Cylinder, BSP Black Suede Powder Coat
Zoomed view
All Sargent Products

Sargent 55-8813-J-ETP Rim Exit Device, Classroom Function, Request To Exit, For 37-42 Inch Width Door, Hex Key Dogging, Less Cylinder

  • SKU: 558813JETPUS32DLHRLC
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,822.26/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 55-8813-J-ETP Rim Exit Device...
Quantity
–
+
From $1,822.26
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

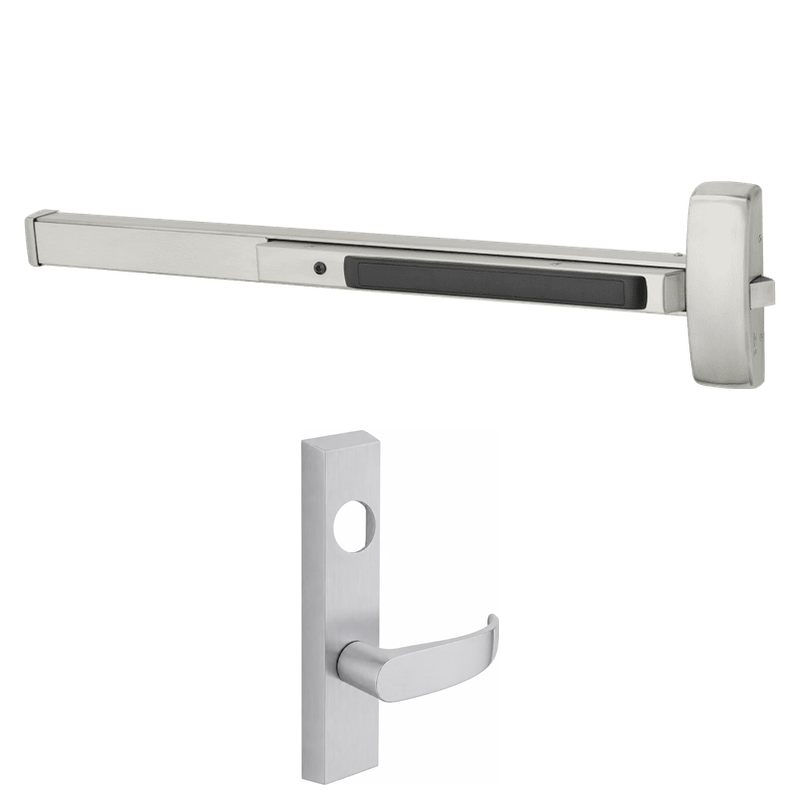

Sargent 55-8813-J-ETP Rim Exit Device, Classroom Function, Request To Exit, ET Control, P Lever, 37"-42" Door Width, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 55-8813-J-ETP is a Grade 1 rim exit device engineered for high-traffic openings that require secure, reliable egress and classroom-style access control. Configured for doors 37" to 42" wide, it pairs ET trim with the P lever design and includes a built-in Request to Exit (RX) switch for monitoring door status and integrating with access control systems. The classroom function lets the outside lever be locked or unlocked by key, while free egress is always available from the inside. Hex key dogging holds the pushbar retracted for push/pull operation during busy periods. Shipped less cylinder, this device accepts a standard mortise cylinder for flexible keying.

Features

  • Grade 1 rim exit device built for durable performance on heavy-use commercial doors.
  • Classroom function allows the outside lever to be key-locked or unlocked while egress remains free at all times.
  • Integrated Request to Exit (RX) switch signals authorized exits to compatible access control and monitoring systems.
  • ET trim with the P lever design provides a clean, ADA-friendly outside operation.
  • Sized for door widths from 37" to 42".
  • Hex key dogging mechanically holds the latch retracted for push/pull functionality.
  • Supplied less cylinder to accommodate your preferred keying system.

Functional Details

The classroom (J) function keeps egress available from the inside at all times while the outside lever is locked or unlocked by key. The RX feature uses an internal switch tied to the pushbar to report when the device is operated for exit.

  • Classroom function: outside lever locked or unlocked by key; latchbolt retracted by lever when unlocked or by inside pushpad.
  • Request to Exit switch monitors pushpad activity for access control integration.

Arm Type Details

This is a rim-mounted surface exit device. The pushpad actuates a rim latch that engages a surface-mounted strike on the frame, making it ideal for single doors or the active leaf of a pair.

Included Components

Ships with the 8800 series rim exit device chassis, ET escutcheon trim with P lever, Request to Exit switch, and hex key dogging. Mortise cylinder is not included and must be ordered separately.

Manufacturer Sargent
SKU 55-8813-J-ETP
Series 8800 Series Rim Exit Device
Function Classroom
Trim ET Control with P Lever
Grade ANSI/BHMA Grade 1
Origin Made in USA
Unit of Measure Each
UL Listing Type UL/cUL Listed Panic Hardware
ANSI Number ANSI/BHMA A156.3
BAA Qualified Yes
Limited Warranty Sargent Limited Warranty
Device Type Rim Exit Device
Door Width Range 37" to 42"
Dogging Type Hex Key Dogging
Cylinder Less Cylinder (mortise cylinder required)
Latchbolt Deadlatching Pullman type
Latchbolt Throw 3/4"
Switch Request to Exit (RX) monitoring switch
Mounting Surface mounted
Door Type Single or active leaf of pairs
Fire Rating Panic rated (fire-rated versions available less dogging)
Product Cut Sheet

Panic Handing Chart
