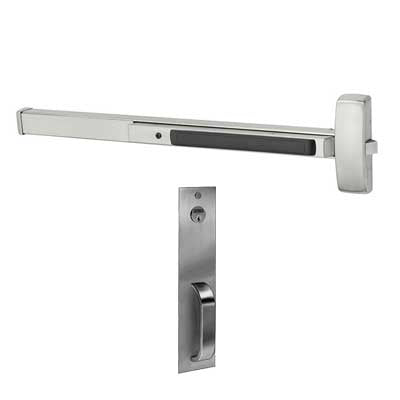

Sargent 56-12-8804-F-PSB (12) Fire Rated Rim Exit Device (56) Electric Latch Retraction, Night Latch Function, 33"-36" Bar, PSB Pull Trim

  • SKU: 56128804FPSBUS32DLHR

Sargent 56-12-8804-F-PSB (12) Fire Rated Rim Exit Device (56) Electric Latch Retraction, Night Latch Function, 33"-36" Bar, PSB Pull Trim

  • SKU: 56128804FPSBUS32DLHR
Sale price$1,834.80/ea
In Stock
In Stock
Finish: US32D Satin Stainless Steel (630)
Core Options: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock
Handing: LHR - Left Hand Reverse

The Sargent 56-12-8804-F-PSB is Fire Rated Rim Exit Device with an Electric Latch Retraction, PSB Pull Trim, Key Retracts Latch Bolt, and a 33"-36" Bar.

SARGENT Electric Latch Retraction exit device is the perfect choice for high traffic egress doors that require access control. This non-handed exit device rail is durable and easy to install. It utilizes a latch retraction motor rather than a solenoid, ensuring quiet operation ideal for locations such as conference rooms, theaters, and libraries. Once retracted, the door functions in a push/pull manner. The 56- exit device can be dogged for momentary ingress and egress and is commonly used in conjunction with an automatic door operator. The device can be dogged continuously on fire-rated devices that are tied into the building fire detection system.

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated Yes
Burglar Rated No
ADA Compliance No



Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Night Latch
Device Length 36"
Includes Trim Yes, PSB
Minimum Stile Size 4-3/4"
Door Material Metal or Wood
Door Width 33"- 36"
Door Thickness 1-3/4" to 2-1/4"
Fire Rated Yes
Product Type Rim Exit Devices

Panic Handing Chart
