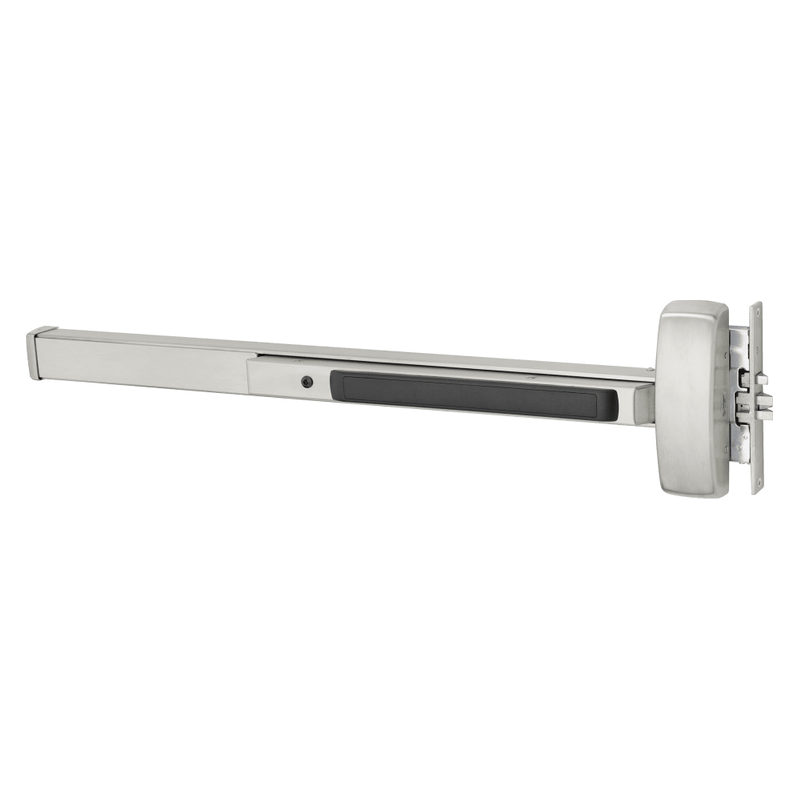

Sargent 56-12-8910-G Electrified Fire Rated Mortise Exit Device, Exit Only, For 43-48" Dr Widths, Electric Latch Retraction

The Sargent 56-12-8910-G is an electrified fire rated mortise exit device built for high-traffic commercial openings that demand both life-safety compliance and access control integration. Designed as an exit-only device, it fits door widths ranging from 43 to 48 inches and features Electric Latch Retraction (56 option), allowing the latch to be electrically retracted for remote unlatching, push-pull operation, and card reader integration. As a fire rated unit, it provides positive latching without a mechanical dogging feature, meeting UL requirements for fire door assemblies. The robust mortise lock case delivers dependable security and long-term durability in demanding institutional and commercial environments.

Features

• Electrified mortise exit device engineered for exit-only applications.
• Fire rated construction suitable for labeled fire door assemblies.
• Electric Latch Retraction (ELR) permits remote latch control and access integration.
• Sized for wide door openings between 43 and 48 inches.
• Heavy-duty mortise lock case for reliable latching and extended service life.
• Compatible with low-profile and standard trim configurations across the 80 Series platform.

Functional Details

The 56 Electric Latch Retraction function uses an internal motor to retract the latch bolt electrically, enabling momentary or sustained release of the device. This supports remote operation, automatic operators, and credential-based access while maintaining fire-rated positive latching when the device is not energized.

• Electric latch retraction allows remote and automatic unlatching.
• Latch returns to a secure latched position when power is removed.
• Permits integration with access control, push-pull paddles, and automatic door operators.
