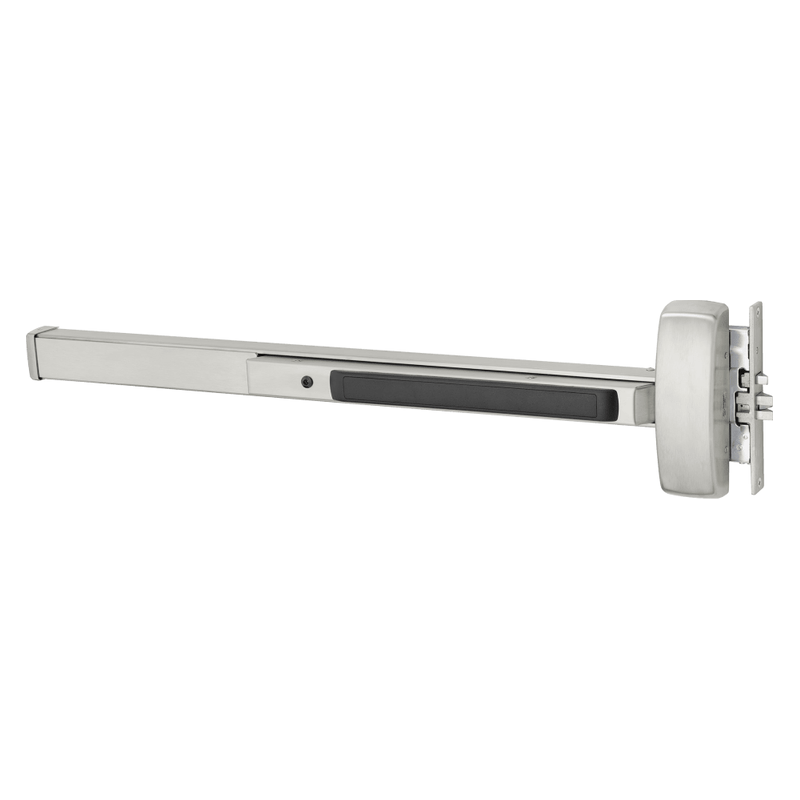

Sargent 56-12-8910-J Electrified Fire Rated Mortise Exit Device, Exit Only, For 37-42" Dr Widths, Electric Latch Retraction

The Sargent 56-12-8910-J is an electrified fire rated mortise exit device designed for high-traffic commercial openings that require reliable security and controlled access. Built for doors ranging from 37 to 42 inches wide, this exit-only device features Electric Latch Retraction (ELR), allowing the latch to be retracted electrically for remote unlocking, access control integration, and automatic operator compatibility. The J designation indicates the lever trim or arm configuration, while the fire rating makes it suitable for labeled door assemblies. As part of Sargent's durable 80 Series platform, this device delivers dependable performance, Grade 1 strength, and smooth egress for demanding institutional, healthcare, and educational environments.

Features

• Electrified fire rated mortise exit device engineered for secure, code-compliant openings.
• Electric Latch Retraction (ELR) permits remote unlatching and access control integration.
• Designed for door widths of 37 to 42 inches for wide-opening applications.
• Exit-only configuration provides free egress without outside trim.
• Fire rated construction suitable for labeled fire door assemblies.
• Grade 1 ANSI/BHMA rating for heavy-duty commercial durability.
• Mortise lock body offers added strength and security over rim-style devices.

Functional Details

This device uses Electric Latch Retraction to electrically pull the latch bolt in, allowing the door to be released remotely or momentarily held in a retracted state for push/pull operation and automatic door operator coordination. When power is removed, the device returns to its secure latched condition while always permitting free mechanical egress from the inside.

• Electric latch retraction retracts the latch electrically for remote access and operator compatibility.
• Mechanical egress is always available regardless of electrical status.
