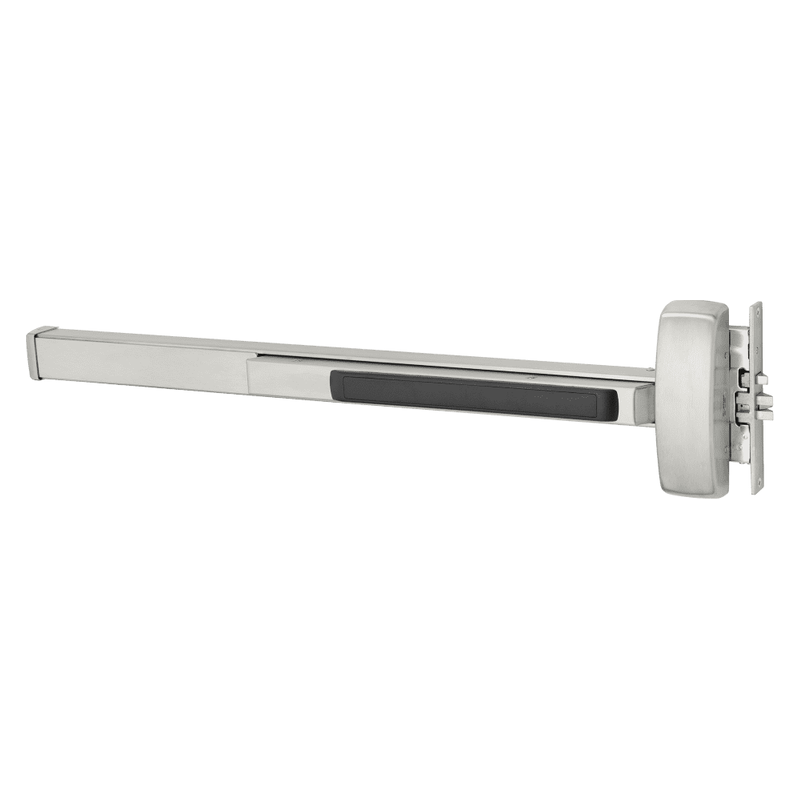

Sargent 56-8910-F Electrified Mortise Exit Device, Exit Only, For 33-36" Dr Widths, Electric Latch Retraction

The Sargent 56-8910-F is a heavy-duty electrified mortise exit device built for high-traffic commercial openings where remote access control is a priority. Designed for exit-only applications on door widths from 33" to 36", this device features Electric Latch Retraction (ELR), allowing the latch to be withdrawn electrically for momentary or sustained free passage. The mortise lock case delivers excellent security and durability, while the fire-rated "F" designation makes it suitable for labeled openings. Ideal for office buildings, schools, healthcare facilities, and other environments that require integration with access control, card readers, or automatic operators, the 56-8910-F combines rugged performance with modern electrified convenience.

Features

• Electric Latch Retraction (ELR) permits remote latch retraction for controlled access and hands-free entry.
• Mortise lock case design provides superior strength and reliable long-term operation.
• Exit-only configuration with no outside trim for secure one-way egress.
• Fire-rated (F) construction for use on labeled fire door assemblies.
• Sized for 33" to 36" door widths to fit most standard commercial openings.
• Compatible with access control systems, card readers, and automatic door operators.

Functional Details

The 56 prefix indicates Electric Latch Retraction. When power is applied, a built-in motor retracts the latch, allowing the door to be pushed or pulled open without operating the push bar. Removing power restores normal mechanical latching and egress through the device.

• Electric latch retraction allows remote unlocking of the device.
• Latch can be retracted momentarily or held retracted for continuous free access.
• Fail secure operation ensures the device relatches when power is removed.
• Compatible with automatic operators for low-energy and barrier-free openings.
