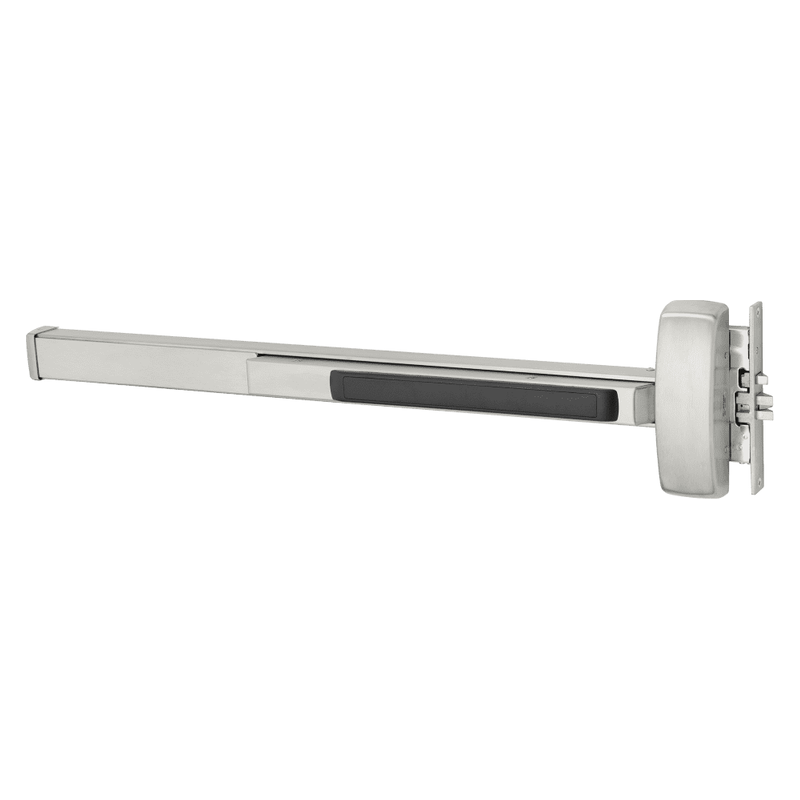

Sargent 56-8910-G Electrified Mortise Exit Device, Exit Only, For 43-48" Dr Widths, Electric Latch Retraction

The Sargent 56-8910-G is a heavy-duty electrified mortise exit device engineered for exit-only applications on doors measuring 43 to 48 inches wide. Built around Sargent's proven 8900 Series mortise platform, this device incorporates Electric Latch Retraction (ELR), allowing the latch bolt to be retracted electronically for remote access control, momentary unlocking, and integration with automatic operators or card reader systems. Grade 1 rated for demanding commercial and institutional environments, it delivers reliable, long-term performance in high-traffic openings. The 56- prefix designates the electric latch retraction feature, while the exit-only configuration means there is no outside trim, making it ideal for secured egress points.

Features

• Electric Latch Retraction (ELR) permits remote and controlled retraction of the latch for access control integration.
• Mortise lock body construction provides superior strength and security over rim-style alternatives.
• Sized specifically for wide openings between 43 and 48 inches.
• Exit-only design with no outside trim, suited for secure egress applications.
• ANSI/BHMA Grade 1 certified for heavy commercial and institutional use.
• Compatible with automatic operators, electromagnetic locks, and card access systems.
• Durable finish options to match surrounding door hardware.

Functional Details

The Electric Latch Retraction function electrically withdraws the mortise latch bolt, allowing the door to be pushed or pulled open without manually depressing the push rail. When power is applied, the latch retracts and holds; when power is removed, the latch returns to its secured position. This makes the device well suited for controlled access openings and automatic door operation.

• Electric latch retraction allows remote operation of the exit device.
• Used with access control systems for momentary or sustained unlocking.
• Compatible with automatic operators for hands-free entry.
