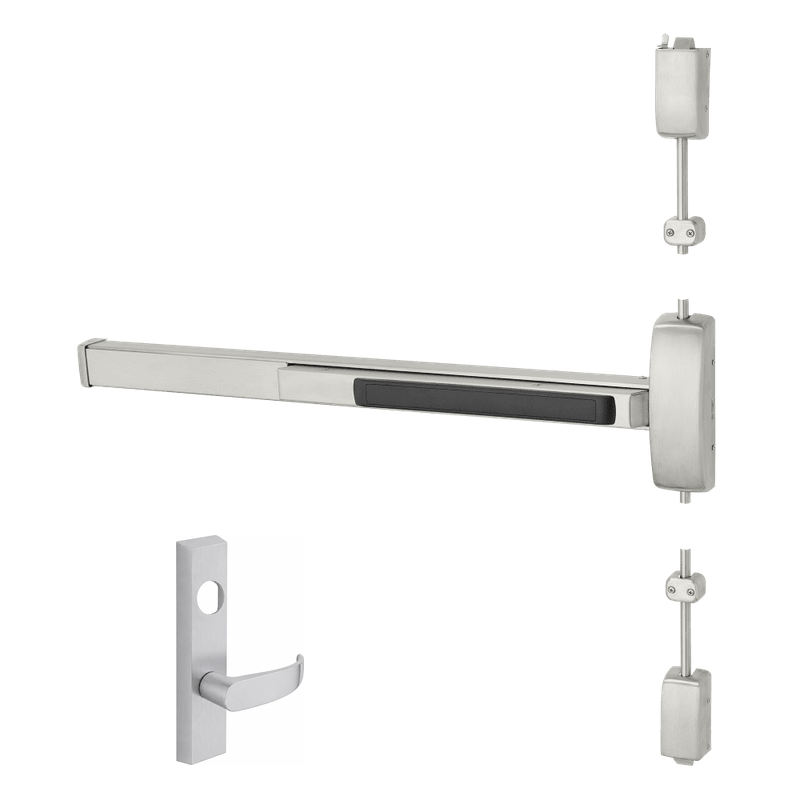

Sargent 56-LC-12-8706-G-ETP-84 Electrified Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 84" Ht Door, Less Cylinder

The Sargent 56-LC-12-8706-G-ETP-84 is a fire rated surface vertical rod exit device engineered for demanding commercial openings up to 48 inches wide and 84 inches tall. Built around Sargent's rugged 80 Series platform, it combines reliable panic egress with electrified storeroom function (ETP trim), making it ideal for secured corridors, stairwells, and high-traffic entries that require positive latching and controlled access. The device ships less cylinder (LC), giving facilities the flexibility to install their preferred keying system. With its durable construction and UL fire rating, this exit device delivers dependable performance and code compliance for schools, hospitals, and institutional buildings.

Features

• Surface-mounted vertical rod design provides secure top and bottom latching on fire rated openings.
• Electrified storeroom (ETP) trim allows controlled access while maintaining free egress at all times.
• Fire rated and UL listed for use on labeled door assemblies.
• Sized for doors 43" to 48" wide and up to 84" in height.
• Supplied less cylinder for compatibility with existing keying systems.
• G (Gramercy) decorative lever trim offers a clean, contemporary appearance.

Functional Details

The storeroom function keeps the outside lever locked at all times, requiring key access from the exterior, while the inside push bar always allows free egress. Electrification of the trim lets the lever be released remotely through an access control system.

• Outside lever is always locked.
• Latchbolt retracted by key outside or by lever inside.
• Free egress at all times from the inside.

Arm Type Details

This is a surface vertical rod (SVR) configuration, with top and bottom latch rods mounted to the door face. When the push bar is depressed, both rods retract simultaneously to release the door, and they re-engage automatically on closing to secure the opening at two points.

Included Components

The device includes the 8700 series fire rated chassis, surface mounted vertical rods with top and bottom latches, and the ETP electrified Gramercy (G) lever trim. A cylinder is not included and must be ordered separately.
