Sargent 56-LC-12-8706-G-ETP-96 Electrified Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 96" Ht Door, Less Cylinder

The Sargent 56-LC-12-8706-G-ETP-96 is an electrified fire rated surface vertical rod exit device built for heavy-duty commercial openings. Configured for storeroom function with the G trim design and ETP electrified trim, it provides secure access control on fire-rated doors measuring 43" to 48" wide and up to 96" tall. The 56 prefix indicates electric latch retraction capability, while the LC option ships the device less cylinder for field-matched keying. Backed by Sargent's reputation for durability, this device delivers reliable life-safety egress and controlled entry in schools, hospitals, and institutional facilities where code compliance and dependable performance matter.

Features

• Surface-mounted vertical rod design provides top and bottom latching for secure two-point locking.
• Fire rated construction meets code requirements for fire door assemblies.
• Storeroom function keeps the outside trim locked at all times while allowing free egress from the inside.
• Electrified ETP trim enables integration with access control and remote locking systems.
• Sized for wide 43-48" doors and tall 96" openings for large commercial applications.
• Supplied less cylinder (LC) for compatibility with existing keying systems.
• Grade 1 heavy-duty rating ensures long service life in high-traffic environments.

Functional Details

The storeroom function (12) keeps the exterior lever continuously locked, requiring a key or electric release for entry, while the interior push bar always permits free egress. The ETP electrified trim allows the lever to be remotely controlled by an access system without affecting fire-rated egress performance.

• Outside trim is locked at all times.
• Key retracts latch for entry.
• Free egress at all times from the inside.

Included Components

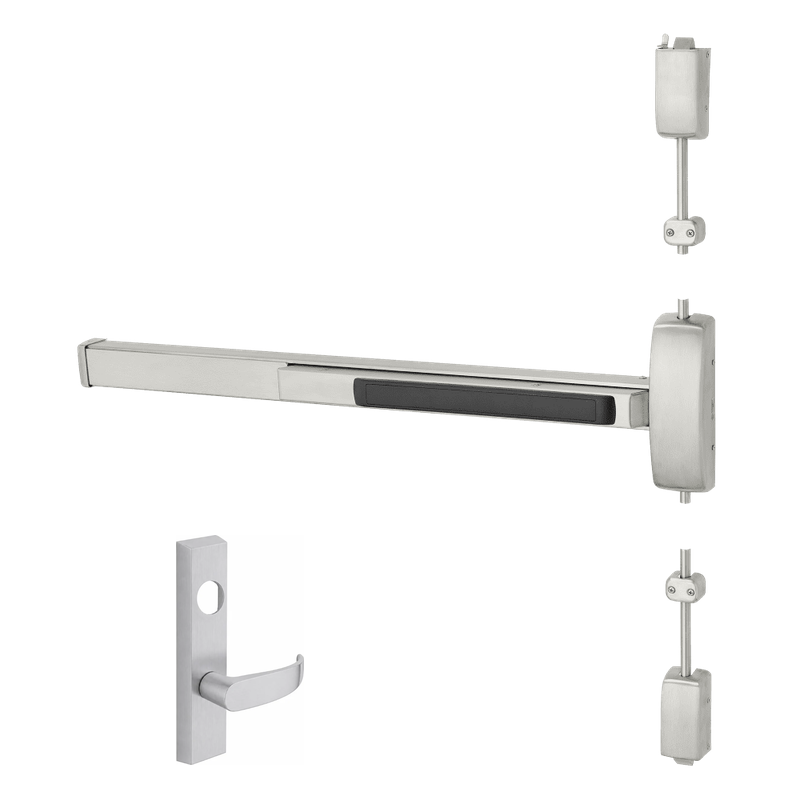

This device includes the surface vertical rod chassis, top and bottom latch assemblies, vertical rods, and the ETP electrified lever trim with the G design. A cylinder is not included and must be ordered separately to match existing keying.
