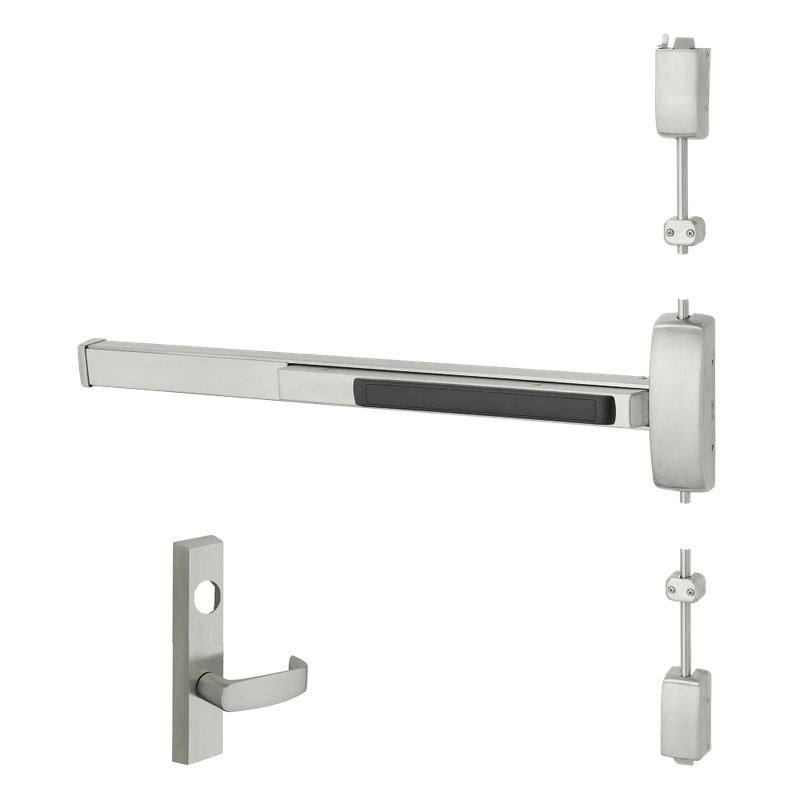

Sargent 56-LC-12-8706-J-ETL-84 Electrified Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 37-42" Width, 84" Ht Door, Less Cylinder

The Sargent 56-LC-12-8706-J-ETL-84 is an electrified fire rated surface vertical rod exit device built for demanding commercial openings. Designed for storeroom function, it keeps the outside lever locked while permitting free egress at all times, making it ideal for high-security applications. This model fits doors measuring 37" to 42" wide and 84" tall, and ships less cylinder so you can match your existing keying system. With its 56 electrified trim option and durable 8700 series construction, this device delivers reliable access control and life-safety compliance for schools, hospitals, offices, and institutional facilities.

Features

• Fire rated surface vertical rod exit device suitable for labeled door assemblies.
• Electrified trim (56 option) provides access control and remote locking capability.
• Storeroom function keeps the outside lever locked while allowing free egress.
• Sized for doors 37" to 42" wide and 84" in height.
• Supplied less cylinder (LC) for integration with your existing keyway.
• ETL lever trim with the J design for comfortable, durable operation.
• Heavy-duty construction built to withstand high-traffic commercial use.

Functional Details

The storeroom function (12) ensures the outside lever remains continuously locked, and the latch can only be retracted by key or by activating the exit device from the inside. The door is self-locking on closing, while egress through the device is always available for occupant safety.

• Outside lever is always locked.
• Key retracts latch for entry.
• Free egress at all times from the inside.
• Auxiliary latch deadlocks the pullman when door is closed.

Arm Type Details

As a surface vertical rod device, the 8706 uses top and bottom latching points connected by surface-mounted rods. This configuration secures the door at both the head and sill, providing added resistance and reliable alignment on fire rated openings without mortising into the door edge.

Included Components

This device includes the surface vertical rod exit mechanism with 56 electrified trim, ETL lever trim with J design, top and bottom latch assemblies, and mounting hardware. A cylinder is not included and must be ordered separately.
