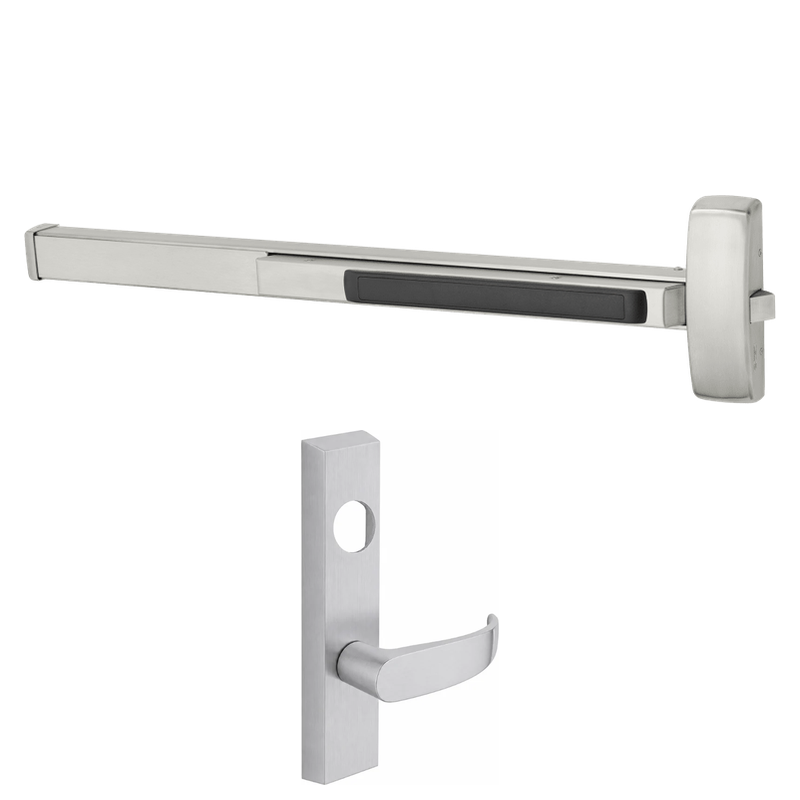

Sargent 56-LC-12-8876-G-ETP-12V Electrified Fire Rated Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 43-48" Width Door, Less Cylinder, Less Dogging

The Sargent 56-LC-12-8876-G-ETP-12V is an electrified fire rated rim exit device built for wide openings measuring 43 to 48 inches. Designed with electric latch retraction and a fail secure configuration, this device keeps the opening locked when power is lost, while allowing remote retraction for controlled access and traffic management. It ships less cylinder and less dogging, making it ideal for fire-rated applications where mechanical dogging is prohibited. Featuring the ET trim with the G lever design and 12V operation, this exit device delivers dependable life-safety performance and smooth integration with access control systems for commercial and institutional entrances.

Features

• Electrified rim exit device for fire-rated door assemblies.
• Fail secure operation keeps the lever locked when power is removed.
• Electric latch retraction allows remote unlocking and latch hold-back.
• Sized for door widths from 43 to 48 inches.
• Supplied less cylinder for field-specified keying.
• Less dogging, as required for fire-rated listings.
• ET escutcheon trim with the G lever style for durable everyday use.
• Operates on 12V DC for compatibility with common access control power supplies.

Functional Details

The 56-8876 fail secure function means the outside lever remains locked whenever power is off, and a key or authorized credential is required to retract the latch and gain entry. Electric latch retraction momentarily pulls the latchbolt in to permit push/pull operation or remote release.

• Fail Secure: Power off locks lever.
• Key retracts latch.
• Electric latch retraction.

Arm Type Details

This device uses the ET (ETP) escutcheon trim with the G lever design, providing a robust, forged lever that returns to a neutral position and resists abuse in high-traffic settings.
