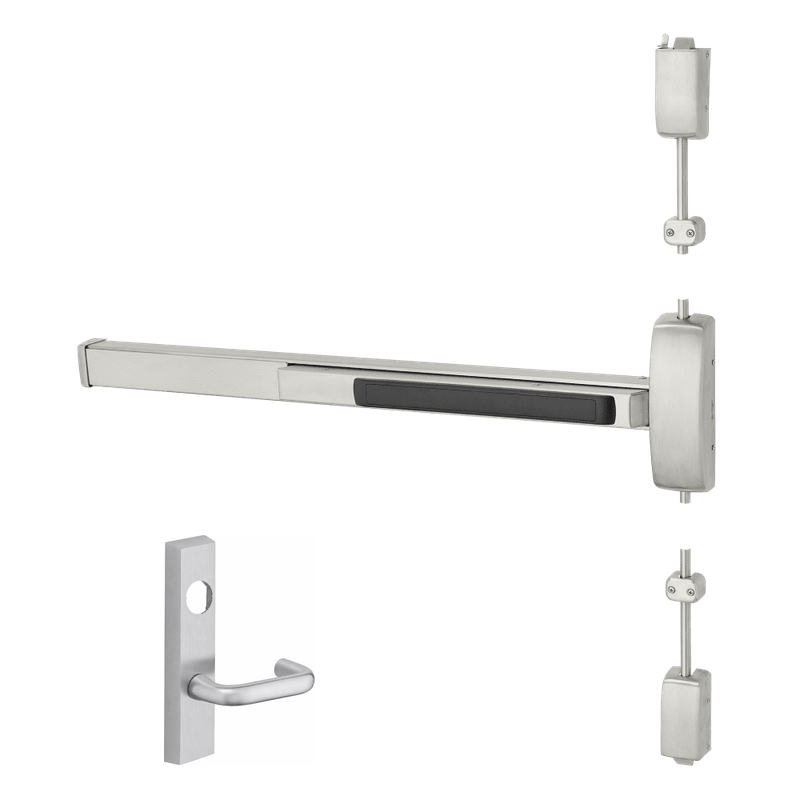

Sargent 56-LC-8706-F-ETJ-96 Electrified Surface Vertical Rod Exit Device, Storeroom, For 33-36" Width, 96" Ht Door, Less Cylinder

The Sargent 56-LC-8706-F-ETJ-96 is an electrified surface vertical rod exit device built for demanding commercial openings up to 96 inches tall and 33–36 inches wide. Configured for storeroom function with the ETJ lever trim, it keeps the outside lever locked at all times while allowing free egress from the inside at any moment. The electrified 56 option supports access control integration, and the device ships less cylinder to accommodate your preferred keying. With a fire-rated (F) design and durable surface-mounted rods, this unit delivers reliable security and life-safety performance for schools, offices, and institutional facilities.

Features

• Surface vertical rod design provides secure top and bottom latching on tall door applications.
• Storeroom function keeps the outside lever locked while permitting free egress from the secured side.
• Electrified 56 option enables integration with access control and electrified locking systems.
• Fire-rated (F) construction suits labeled openings requiring life-safety compliance.
• ETJ lever trim offers rugged, ADA-compliant operation.
• Sized for doors 33–36" wide and up to 96" tall.
• Supplied less cylinder for flexible keying to match your facility's system.

Functional Details

The storeroom function maintains constant security on the exterior while allowing unrestricted egress. The electrified feature controls the outside trim through an access control signal.

• Outside lever is always locked.
• Free egress at all times from the inside.
• Key retracts latch for momentary access.
• Electrically controlled outside trim for access control.

Arm Type Details

This exit device uses a surface-mounted vertical rod configuration, with latching points at the top and bottom of the door. The rods run along the face of the door, securing it at both the header and threshold for enhanced hold-up strength on wide or tall doors.

Included Components

The device includes the surface vertical rod exit chassis, ETJ lever trim, top and bottom latches, and mounting hardware. A cylinder is not included and must be ordered separately.
