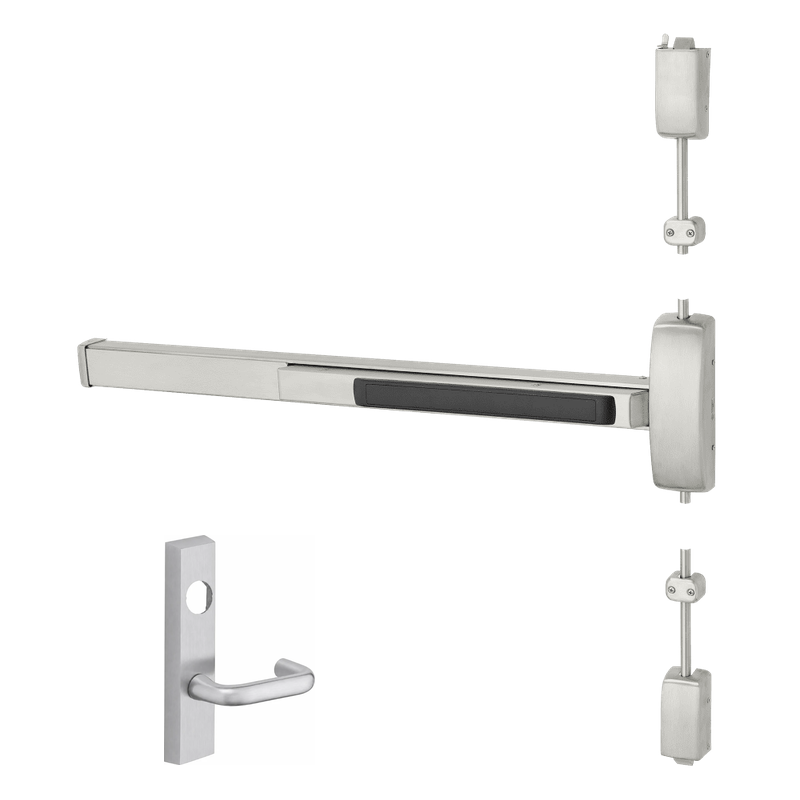

Sargent 56-LC-8706-G-ETJ-96 Electrified Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 96" Ht Door, Less Cylinder

The Sargent 56-LC-8706-G-ETJ-96 is a heavy-duty electrified surface vertical rod exit device engineered for wide, tall openings measuring 43" to 48" in width and up to 96" in height. Built for storeroom function with the ETJ lever trim, this unit provides secure, always-locked exterior access while allowing free egress at all times. The "56" prefix indicates an electric latch retraction configuration, and the "LC" designation means the device ships less cylinder, giving installers the flexibility to match existing keying systems. Ideal for commercial and institutional environments, it combines reliable panic hardware performance with the access control capabilities demanded in modern facilities.

Features

• Surface-mounted vertical rod design suited for doors up to 96" in height.
• Sized for wide openings measuring 43" to 48" in width.
• Storeroom function keeps the outside lever locked at all times while permitting free egress.
• ETJ (J) lever trim provides durable, comfortable operation.
• Ships less cylinder for integration with existing key systems.
• Grade 1 construction rated for high-traffic, heavy-use applications.
• UL listed for panic exit hardware.

Functional Details

The storeroom (Function 06) configuration locks the outside trim continuously, requiring a key to retract the latch from the exterior, while the inside push rail always allows unobstructed exit.

• Outside trim is continuously locked.
• Key retracts latch bolt.
• Latch bolt deadlocks automatically when the door closes.
• Free egress at all times from inside.

Arm Type Details

As a surface vertical rod device, the top and bottom latch rods are mounted to the face of the door, securing the opening at both the head and sill for added strength on wide and tall doors.

Included Components

Device chassis, ETJ (J) lever trim, surface-mounted top and bottom vertical rods, strikes, and mounting hardware. Cylinder is not included and must be ordered separately.
