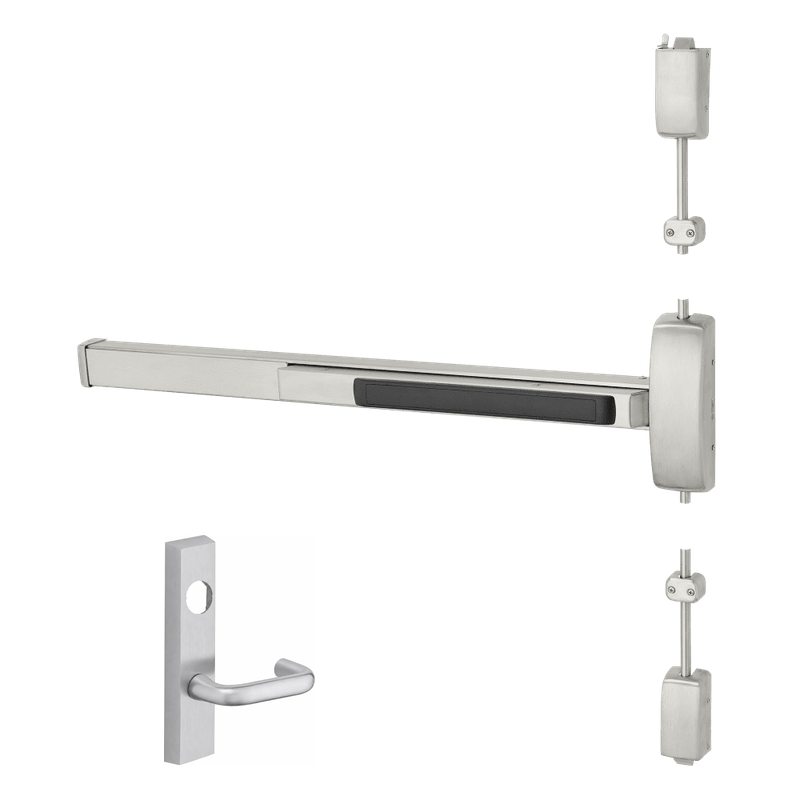

Sargent 56-LC-8706-J-ETJ-96 Electrified Surface Vertical Rod Exit Device, Storeroom, For 37-42" Width, 96" Ht Door, Less Cylinder

The Sargent 56-LC-8706-J-ETJ-96 is an electrified surface vertical rod exit device built for heavy-duty commercial and institutional openings. Configured for storeroom function with the J (ET) lever trim, it provides secure, electrically controlled access on wide doors measuring 37" to 42" and tall 96" openings. The 56 electrification option enables remote control and monitoring integration, while the surface-mounted vertical rods deliver dependable two-point latching at the top and bottom of the door. Supplied less cylinder (LC), this device allows you to pair your preferred mortise cylinder to match an existing keying system, making it a flexible choice for schools, hospitals, and office buildings.

Features

• Surface-mounted vertical rod design for secure top and bottom latching on tall doors.
• Electrified 56 option for remote access control and monitoring capability.
• Storeroom function keeps the door latched and locked, with key access from the outside.
• Sized for wide doors from 37" to 42" and extended 96" door heights.
• ETJ lever trim offers durable, ergonomic operation.
• Supplied less cylinder so you can match your facility's existing keyway.
• Grade 1 construction engineered for high-traffic commercial environments.

Functional Details

The storeroom function (8706) keeps the outside lever continuously locked. The latch is retracted only by key or by depressing the touchpad from the egress side, while free egress is always available from the inside. With the 56 electrification, the trim can be electrically controlled for remote locking and unlocking.

• Outside trim is continuously locked.
• Latchbolt retracted by key from outside or by lever/touchpad from inside.
• Key cannot leave the cylinder unless the outside lever is locked.
• Free egress at all times from the inside.

Arm Type Details

This exit device uses a surface vertical rod configuration, with latching rods mounted on the door face running to top and bottom strikes. This provides two-point latching for added security and door alignment on tall openings without mortising into the door edge.

Included Components

The device ships with the surface vertical rod exit hardware, J-style ETJ lever trim, top and bottom latch assemblies, and mounting hardware. A mortise cylinder is not included and must be ordered separately.
