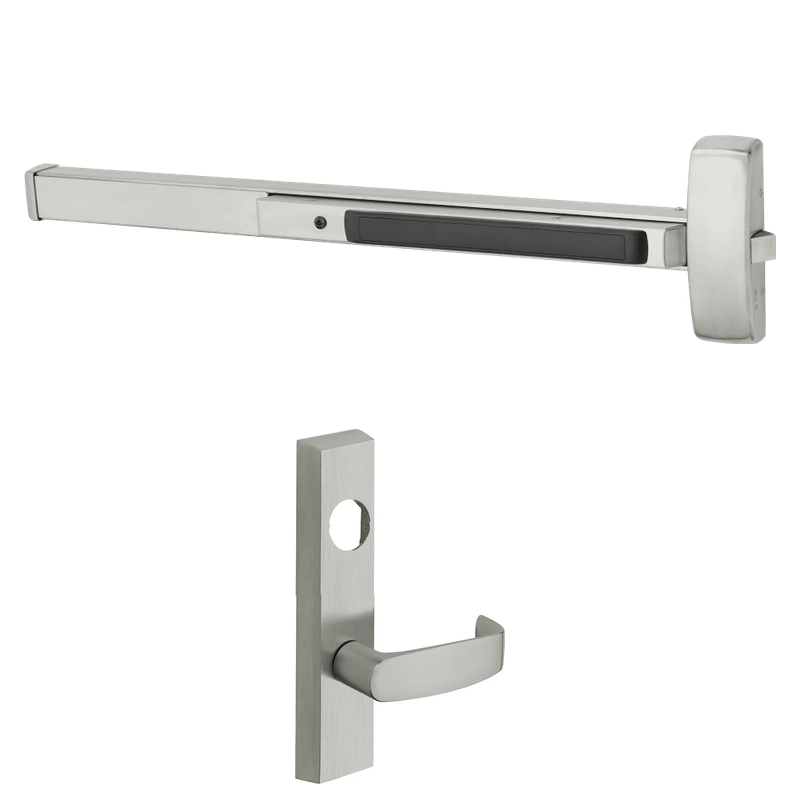

Sargent 56-LC-8875-F-ETL-12V Electrified Rim Exit Device, Fail Safe, For 33-36" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent 56-LC-8875-F-ETL-12V is a heavy-duty electrified rim exit device engineered for secure, high-traffic openings that require remote access control. Built on Sargent's durable 80 Series platform, this fail safe unit features 12V electric latch retraction (ETL), allowing the latch to be retracted electrically for hands-free or remote operation while reverting to a locked state once power is interrupted. Designed for door widths of 33 to 36 inches, it ships less cylinder (LC) for integration with your preferred mortise cylinder. Ideal for office buildings, schools, and commercial facilities, it combines reliable panic egress with modern access control compatibility.

Features

• Electric latch retraction (ETL) operated at 12V for remote and automated latch control.
• Fail safe configuration unlocks the outside trim on loss of power for safe egress and access.
• Rim-mounted exit device suitable for 33" to 36" door widths.
• Less cylinder design lets you specify the matching mortise cylinder for keyed systems.
• Grade 1 construction built for durable performance in high-use commercial openings.
• Compatible with standard Sargent trim and accessory options.

Functional Details

The 8875 fail safe function with electric latch retraction allows the exit device latch to be pulled back electrically, permitting push/pull operation of the door without retracting the latch manually. When power is removed, the device returns to its secured state while always allowing free egress from the inside.

• Electric latch retraction retracts the latchbolt to allow passage without unlocking by key.
• Fail safe: outside trim is unlocked when power is removed.
• Latch retraction powered at 12V DC.
• Free egress at all times from the inside.
