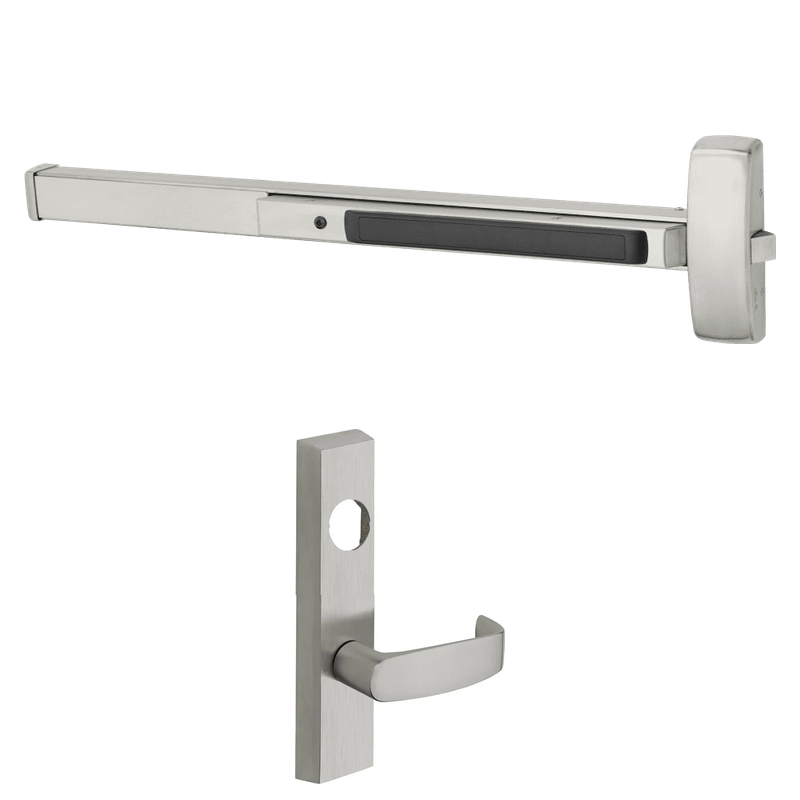

Sargent 56-LC-8875-F-ETL-24V Electrified Rim Exit Device, Fail Safe, For 33-36" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent 56-LC-8875-F-ETL-24V is a heavy-duty electrified rim exit device engineered for commercial openings that demand both reliable egress and integrated access control. Designed for door widths between 33 and 36 inches, this 8800 Series device features 24V electric latch retraction (ETL), allowing the latch to be retracted electronically for remote operation and dogging. Configured as fail safe, the latch releases to the unlocked position during a power loss, making it ideal for applications where free access is required during emergencies. The "LC" designation indicates it ships less cylinder, giving installers the flexibility to match existing keying systems.

Features

• Electrified rim exit device from Sargent's durable 8800 Series platform.
• Electric latch retraction (ETL) operates on 24V DC for quiet, reliable remote unlocking and dogging.
• Fail safe configuration releases the latch during power interruption for secure egress.
• Sized for standard door widths of 33 to 36 inches.
• Supplied less cylinder to accommodate specific keying requirements.
• Rim-mounted design suited for single doors and active leaves of pairs.
• Grade 1 construction built for high-traffic commercial environments.

Functional Details

The electric latch retraction function uses a 24V motor to pull back the latchbolt electronically, enabling push/pull operation, remote release, and electric dogging without mechanical intervention. In fail safe mode, loss of power causes the latch to retract and remain unlocked, ensuring the door can be opened freely for safety-critical applications.

Included Components

The device ships as a complete rim exit assembly with mounting hardware. A compatible mortise cylinder must be ordered separately due to the less-cylinder (LC) configuration.
