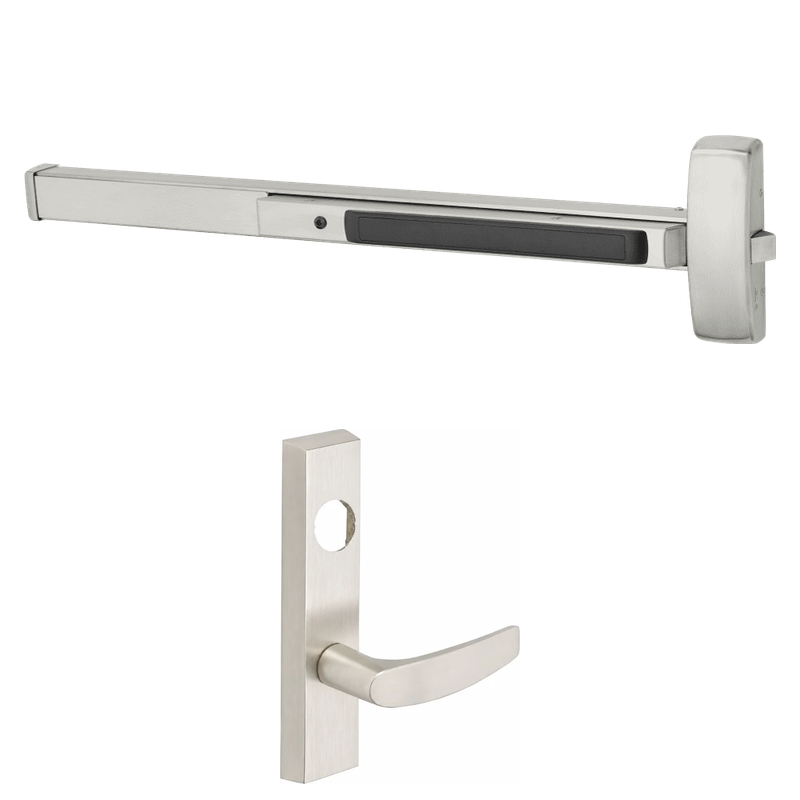

Sargent 56-LC-8875-G-ETB-12V Electrified Rim Exit Device, Fail Safe, For 43-48" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent 56-LC-8875-G-ETB-12V is a heavy-duty electrified rim exit device built for high-traffic commercial openings that require remote access control. Configured for fail-safe operation with 12V electric latch retraction (ELR), it withdraws the latch electrically to allow push/pull access and supports momentary or sustained unlocking. This unit is sized for 43" to 48" door widths and ships less cylinder, giving you flexibility to match your existing keying system. Paired with the ETB exit trim lever, it delivers reliable code-compliant egress while integrating cleanly with access control, fire alarm, and remote release systems in institutional, healthcare, and education environments.

Features

• Electric latch retraction (ELR) retracts the latch for remote, hands-free access control.
• Fail-safe configuration retracts or releases the latch on power loss for secure egress.
• Designed for wide doors measuring 43" to 48".
• Supplied less cylinder (LC) to accommodate your preferred cylinder and keying.
• Rim-mounted design for straightforward installation on single and double doors.
• ETB lever trim provides durable, ADA-compliant exterior operation.
• Grade 1 construction engineered for demanding, high-use applications.

Functional Details

The 56 electric latch retraction function uses a built-in solenoid or motor to pull the latch back electrically, allowing the door to be pushed or pulled open without operating the push bar. When configured fail-safe, the device unlocks on power failure, making it suitable for openings tied to fire alarm release or controlled egress requirements.

• Electric latch retraction for remote operation and access control integration.
• 12V DC operation.
• Fail safe operation.

Included Components

This package includes the 8875 rim exit device chassis with electric latch retraction, the G-ETB exterior lever trim, and standard mounting hardware. A cylinder is not included and must be ordered separately.
