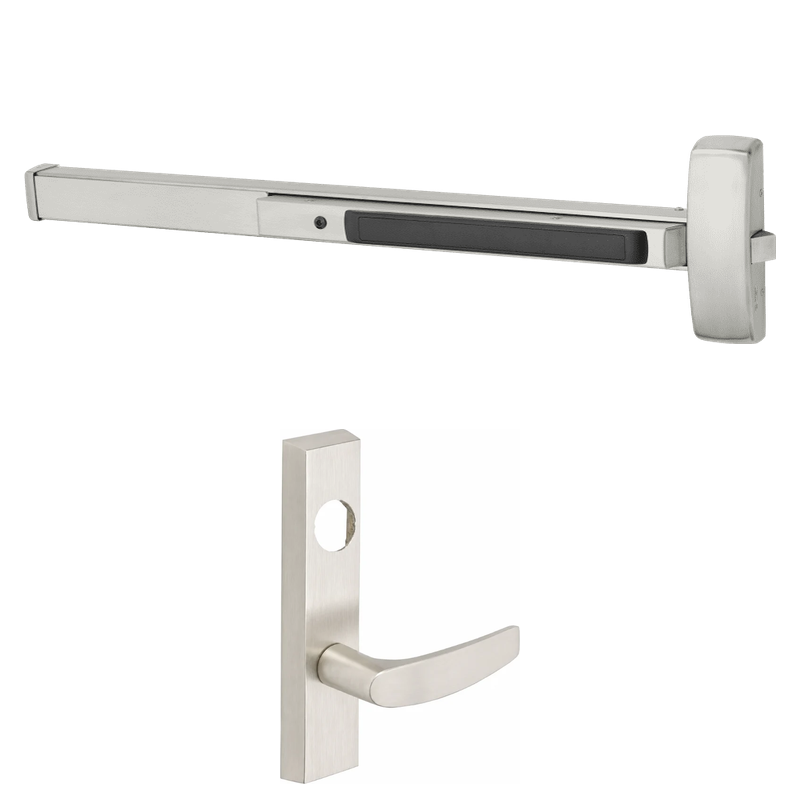

Sargent 56-LC-8875-G-ETB-24V Electrified Rim Exit Device, Fail Safe, For 43-48" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent 56-LC-8875-G-ETB-24V is a heavy-duty electrified rim exit device engineered for secure, high-traffic commercial openings. Designed for door widths from 43 to 48 inches, it combines reliable panic exit hardware with 24V electric latch retraction (ELR) for remote access control and integration with automatic operators. Configured as fail safe, the latch releases during a power loss to support safe egress and controlled entry. The 8875 device includes the G night latch function with ETB trim, and it ships less cylinder so you can match your existing keying system. Backed by Sargent's grade 1 construction, it delivers long-term durability in demanding environments.

Features

• Electric latch retraction allows the latchbolt to be retracted electrically for remote access and dogging.
• Fail safe operation releases the latch on power loss to permit free egress and entry.
• Built for wide openings, accommodating door widths of 43 to 48 inches.
• 24V DC operation for integration with access control and automatic door operators.
• Supplied less cylinder, giving you flexibility to use your preferred cylinder and keyway.
• ETB trim with night latch function for key-controlled entry when the device is secured.
• Grade 1 rated for durability in high-traffic commercial applications.

Functional Details

The 8875 night latch (G) function keeps the outside trim rigid at all times, with the latchbolt retracted by key from the outside. With the electric latch retraction feature, applying 24V to the device retracts the latch electrically, allowing push/pull operation or integration with an automatic operator. In the fail safe configuration, the latch retracts or releases when power is interrupted.

Trim Details

The ETB trim is a thumbpiece-style night latch trim. In the night latch function, the outside lever or thumbpiece is used with a key to retract the latch for entry, while the inside push bar provides free egress at all times.

Because this device ships less cylinder, a compatible mortise cylinder must be ordered separately to complete the outside key-retraction function.
