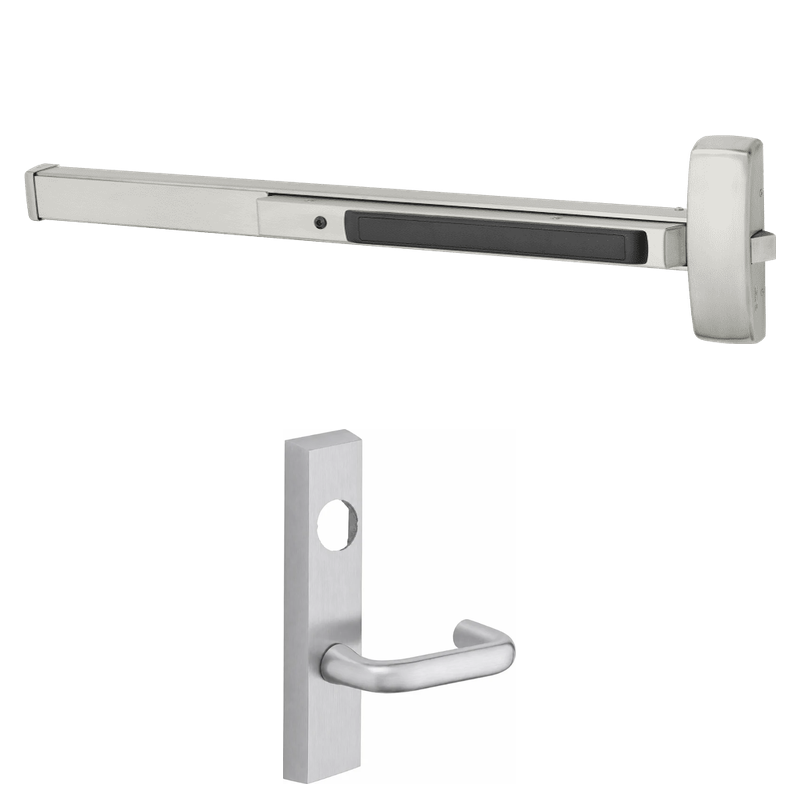

Sargent 56-LC-8875-G-ETJ-12V Electrified Rim Exit Device, Fail Safe, For 43-48" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent 56-LC-8875-G-ETJ-12V is a heavy-duty electrified rim exit device built for high-traffic commercial openings that require remote access control. Designed for door widths from 43 to 48 inches, it features 12V electric latch retraction (ELR) that pulls the latch back electronically, allowing push/pull operation and integration with access control, card readers, or automatic operators. Configured as fail safe, the latch retracts and remains unlocked when power is removed, supporting controlled egress during power loss. The LC designation means the device ships less cylinder, and the ETJ trim provides lever-operated access from the exterior. It's a dependable choice for institutional, healthcare, and commercial facilities.

Features

• Electrified rim exit device with 12V electric latch retraction for remote unlocking and push/pull operation.
• Fail safe configuration unlocks the latch when power is removed for safe egress.
• Sized for door widths between 43 and 48 inches.
• Ships less cylinder (LC), allowing you to supply your preferred mortise cylinder.
• ETJ lever trim provides keyed exterior access with a comfortable, ergonomic lever.
• Grade 1 rated construction for demanding, high-use environments.
• Integrates easily with access control systems and automatic door operators.

Functional Details

Electric latch retraction uses a low-current motor to mechanically withdraw the latchbolt, enabling momentary or sustained retraction. In fail safe mode, removing power releases the latch so the door can be freely pushed or pulled, which is ideal for openings that must unlock during emergencies or power interruptions.

• Electric latch retraction (ELR) allows the latch to be retracted electrically for remote access and push/pull operation.
• Fail safe: latch unlocks when power is removed.
• Designed for use with access control and automatic operators.

Arm Type Details

The ETJ trim is a keyed lever trim configuration. The exterior lever controls access to the opening and works in conjunction with the exit device's latch retraction, providing secure entry while maintaining free egress from the interior push bar.

Included Components

Package includes the 56-8875 rim exit device chassis with 12V electric latch retraction, ETJ lever trim, and mounting hardware. A mortise cylinder is required and not included due to the LC (less cylinder) configuration.
