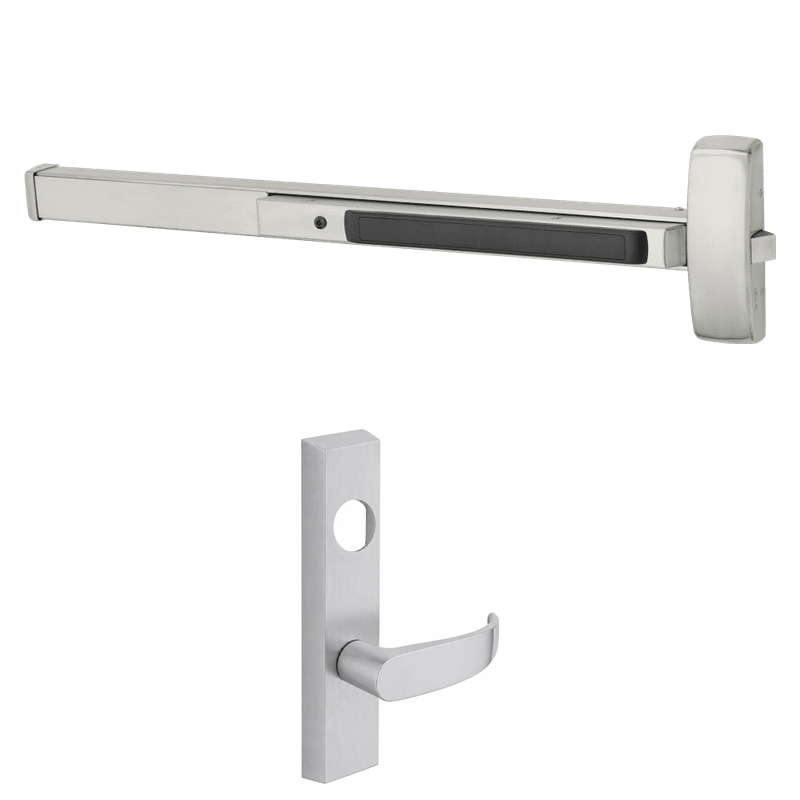

Sargent 56-LC-8875-G-ETP-12V Electrified Rim Exit Device, Fail Safe, For 43-48" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent 56-LC-8875-G-ETP-12V is a heavy-duty electrified rim exit device engineered for high-traffic commercial openings that require remote access control. Built with electric latch retraction (ELR), it allows the latch to be pulled back electronically for push/pull operation, momentary access, or integration with automatic operators and card readers. Configured for fail safe operation, the latch retracts and unlocks on power loss to support egress and life-safety requirements. This model fits 43" to 48" door widths, operates on 12V, and ships less cylinder to accommodate your facility's keying. The ETP trim and durable construction make it a reliable choice for institutional, healthcare, and education applications.

Features

• Electric latch retraction allows remote and electronic latch control for access control and automatic operator integration.
• Fail safe configuration unlocks and retracts the latch on loss of power to support safe egress.
• Sized for 43" to 48" door widths for wide-opening commercial applications.
• Operates on 12V DC power supply.
• Rim-mounted design for straightforward installation on single and double doors.
• Supplied less cylinder (LC) so the device can be keyed to your existing system.
• ETP trim option for pull-side operation and dependable daily use.

Functional Details

The 8875 ELR function uses an electric motor to retract the latch bolt, enabling hands-free entry and compatibility with access control systems. In the fail safe mode, removing power retracts and releases the latch, allowing free passage during a power interruption.

• Electric latch retraction (ELR) for momentary or sustained latch retraction.
• Fail safe: device unlocks upon loss of power.
• Compatible with access control systems and automatic door operators.
