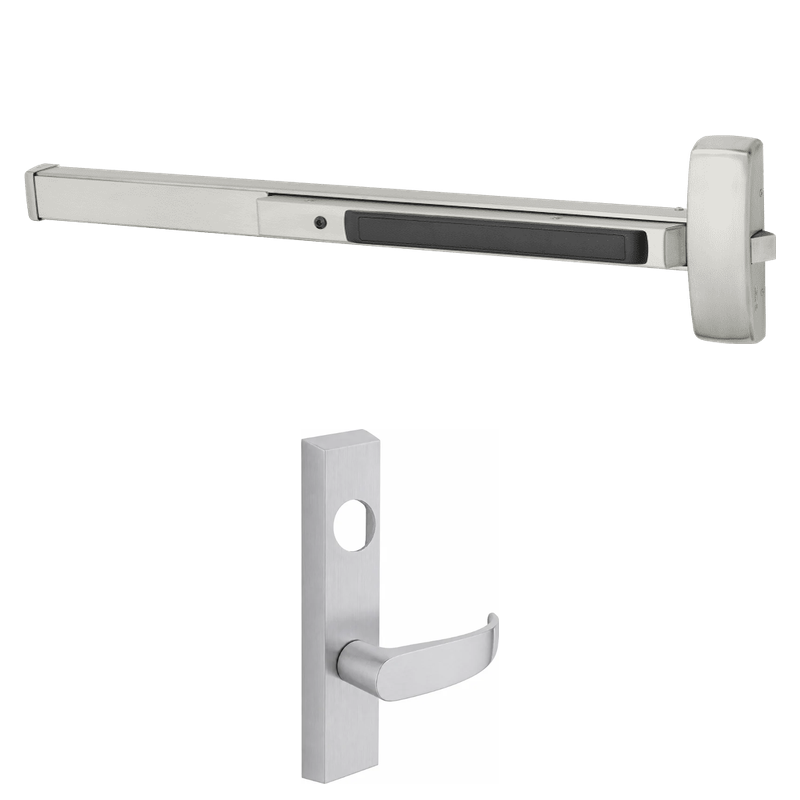

Sargent 56-LC-8875-G-ETP-24V Electrified Rim Exit Device, Fail Safe, For 43-48" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent 56-LC-8875-G-ETP-24V is a heavy-duty electrified rim exit device engineered for commercial openings that demand reliable access control and dependable egress. Built for door widths between 43 and 48 inches, it features electric latch retraction (ELR) powered at 24 volts, allowing remote unlatching for controlled entry and seamless integration with access control systems. The fail-safe configuration ensures the latch retracts and the door remains operable during a power loss, supporting life-safety requirements. Supplied less cylinder (LC) for flexible keying, this Grade 1 device pairs rugged construction with the ETP trim for secure, code-compliant performance in high-traffic entrances.

Features

• Electrified rim exit device with electric latch retraction for remote unlatching and access control integration.
• Fail-safe operation keeps the device unlocked during power interruption for safe egress.
• Designed for wide door openings ranging from 43 to 48 inches.
• Operates on 24V DC for compatibility with standard low-voltage power supplies.
• Supplied less cylinder, allowing you to match your facility's keying system.
• Grade 1 rated construction for durability in demanding commercial environments.
• ETP (G) trim provides a reliable keyed entry function on the exterior.

Functional Details

Electric latch retraction allows the exit device latch to be withdrawn electrically, enabling remote operation and push/pull access during business hours. In the fail-safe mode, the device unlocks automatically when power is removed, ensuring the opening remains accessible for egress and emergency situations. When energized at 24V, the motor-driven mechanism retracts and holds the latch for dogged-free remote operation.

Included Components

This device ships as a rim exit device assembly with the ETP outside trim and electric latch retraction hardware. A mortise cylinder is not included and must be ordered separately to complete keyed access.
