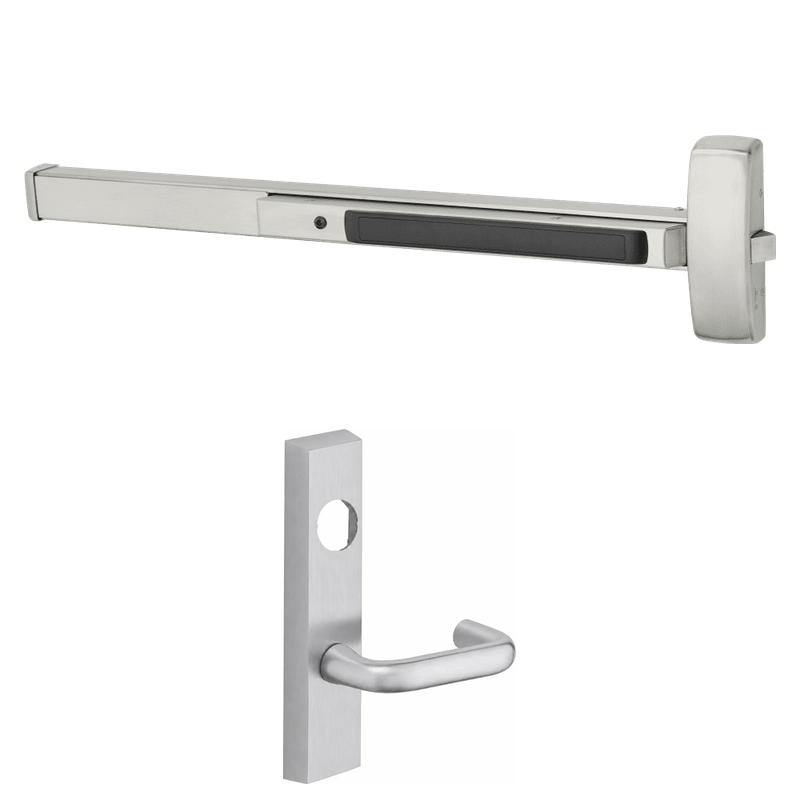

Sargent 56-LC-8875-J-ETJ-24V Electrified Rim Exit Device, Fail Safe, For 37-42" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent 56-LC-8875-J-ETJ-24V is a heavy-duty electrified rim exit device built for high-traffic commercial openings that demand reliable access control. Engineered with Electric Latch Retraction (ELR), it retracts the latch electronically to allow push-pull operation, remote release, and integration with access control systems. This fail-safe configuration retracts the latch during normal operation and releases on power loss, supporting secure egress at all times. Designed for door widths from 37 to 42 inches, it ships less cylinder to accommodate your preferred keying, and features the J trim design with the ETJ exterior lever trim for a clean, functional finish on grade 1 installations.

Features

• Electric latch retraction operates on 24VDC for remote and automated latch control.
• Fail-safe design retracts the latch on power loss for secure, reliable egress.
• Sized for door widths ranging from 37 to 42 inches.
• Supplied less cylinder, allowing you to install the cylinder and keying of your choice.
• Rim-mounted configuration for straightforward surface installation.
• Grade 1 construction suited to demanding commercial and institutional environments.
• ETJ lever trim with J design provides durable exterior operation.

Functional Details

The Electric Latch Retraction function uses a motor to electrically withdraw the latch, enabling the door to be pushed or pulled freely when energized. When paired with access control or automatic operators, the device supports hands-free entry while maintaining code-compliant egress at all times.

• Electric latch retraction allows remote operation of the exit device.
• Motor-driven latch retraction for quiet, dependable performance.
• Compatible with access control and automatic door operator systems.
• Fail-safe operation releases the latch upon loss of power.

Arm Type Details

This device uses the ETJ exterior lever trim with the J design. The lever trim provides controlled access from the outside, while the exit device ensures free egress from the inside at all times.

Included Components

The device includes the rim exit chassis with electric latch retraction and the ETJ exterior lever trim. The cylinder is not included and must be ordered separately to match your keying requirements.
