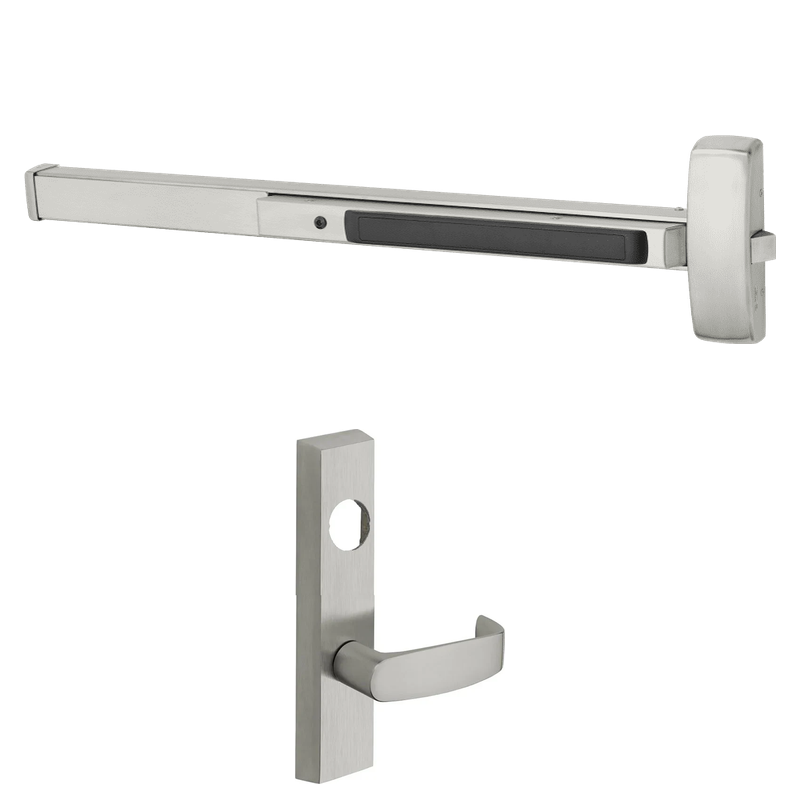

Sargent 56-LC-8875-J-ETL-12V Electrified Rim Exit Device, Fail Safe, For 37-42" Dr Widths, Electric Latch Retraction, Less Cylinder

The Sargent 56-LC-8875-J-ETL-12V is a heavy-duty electrified rim exit device built for high-traffic commercial and institutional openings. Designed for door widths between 37" and 42", it features electric latch retraction (ETL) powered at 12V, allowing the latch to be retracted remotely for momentary or sustained access control. Configured as fail safe, the latch retracts and unlocks on power loss to support safe egress and code-driven security needs. The LC (less cylinder) designation lets you supply your own compatible rim cylinder, while the J trim option provides a durable lever pull. This device combines reliable life-safety egress with access control integration.

Features

• Electric latch retraction (ETL) allows remote unlatching for access control and automatic operators.
• Fail safe configuration retracts and unlocks the latch during power loss for free egress.
• Sized for door widths from 37" to 42" for wide opening coverage.
• Rim-type mounting for straightforward installation on single or paired doors with the correct strike.
• Less cylinder (LC) design lets you install a preferred compatible rim cylinder.
• Operates on 12V DC for integration with common power supplies and controllers.
• J escutcheon trim provides a robust lever-style exterior pull.

Functional Details

The ETL (electric latch retraction) function uses an internal motor to retract the latchbolt electrically, enabling remote release, push/pull operation, and integration with automatic door operators. In the fail safe mode, loss of power retracts the latch so the door can be freely opened, which is ideal for openings that must unlock during an emergency or power interruption.

• Electric latch retraction for remote operation and automatic operator integration.
• Fail safe operation unlocks on power loss.
• 12V DC operation.

Included Components

The device ships as a complete rim exit device assembly with the J trim and electric latch retraction hardware. A compatible rim cylinder must be ordered separately due to the less cylinder (LC) configuration.
