Sargent 5CH-60-16-8888F-88LL-US32D Rim Exit Device, For 33"-36" In Dr Width, LFIC Cylinder Dogging, Grade 1, Satin Stainless Steel

  • SKU: 5CH60168888F88LLUS32D

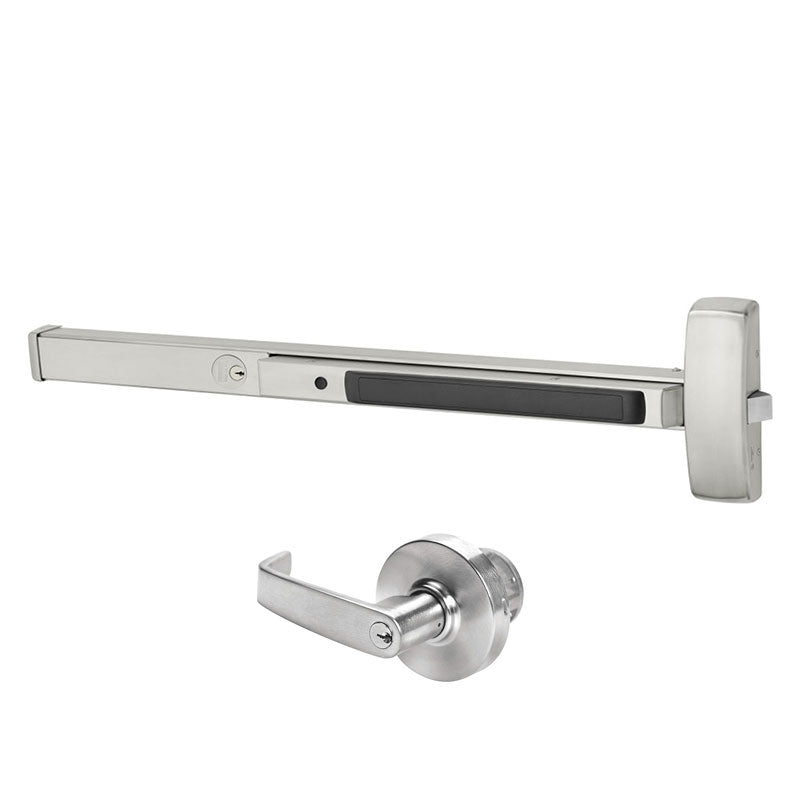

Sargent 5CH-60-16-8888F-88LL-US32D 36" Rim Exit Device
Zoomed view
All SARGENT Products

Sargent 5CH-60-16-8888F-88LL-US32D Rim Exit Device, For 33"-36" In Dr Width, LFIC Cylinder Dogging, Grade 1, Satin Stainless Steel

  • SKU: 5CH60168888F88LLUS32D
  • ✓
    Available (3‑4 Weeks)
    3-4 Weeks Lead Time
Your Price
$1,599.33/ea

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 5CH-60-16-8888F-88LL-US32D Ri...
Quantity
–
+
$1,599.33
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $111.80
Total

Sargent 5CH-60-16-8888F-88LL-US32D Rim Exit Device, 33"-36" Inch Door, 88LL Passage Lever Trim, "60" LFIC Cylinder Dogging, 5CH 5 LB Pressure, Field Reversible, 630 Satin Stainless Steel Finish

The Sargent 5CH-60-16-8888F-88LL-US32D is a Rim Exit Device with a 33"-36" bar, comes with a Sargent 88LL Passage Lever Trim, has a "60" LFIC (Large Format Interchangeable Core) Cylinder Dogging, has a "16" Cylinder lockdown feature, has a "5CH" 5 LB Pressure Release, is Field Reversible, and comes in Satin Stainless Steel Finish.
Cylinder Dogging
16- Cylinder lockdown with # 41 Cylinder & # 97 Ring (not available with 12-, 57, 59- or AL- Option)
Rail Force 5CH - 5lb. Pressure Release (8800, 8500, 8600 & 8400 devices only)
Not available with 14-, 49-, 58-, 59-, BC-59, TI
Consult Factory: 23-, 31-, 36-, 37-, 43-, 54-, 55-, 56-HK, AL-, 76-, 87-, CPC-, SG-, NB-, GL-, TB

    SKU 5CH-60-16-8888F 88LL 32D
    Grade Grade 1
    Installation Commercial
    Origin USA
    Unit of Measure Each
    UL Listing Type UL10C & UL305
    ANSI Number ANSI/BHMA A156.3
    Restrictions None
    BAA Qualified Yes
    Limited Warranty 5 Years
    Fire Rated No
    Burglar Rated No
    ADA Compliance No
    Finish 630/US32D
    Finish Description Satin Stainless Steel
    Finish Family Matte Silver



    Physical Appearance Wide Stile Pushpad
    Device Type Rim
    Mechanical Function Exit Only, Accepts Various Trim
    Device Length 36"
    Hand Non-Handed
    Dogging Options LFIC Cylinder Dogging
    Includes Trim Yes
    Trim Type 88LL Passage Trim
    Includes Cylinder(s) No
    Minimum Stile Size 4 3/4"
    Door Material Metal or Wood
    Door Width 33" to 36"
    Door Thickness 1 3/4" - 2 1/4"
    Fire Rated No
    Reversible Yes
    Product Type Rim Exit Devices

    Product Cut Sheet

    Panic Handing Chart
