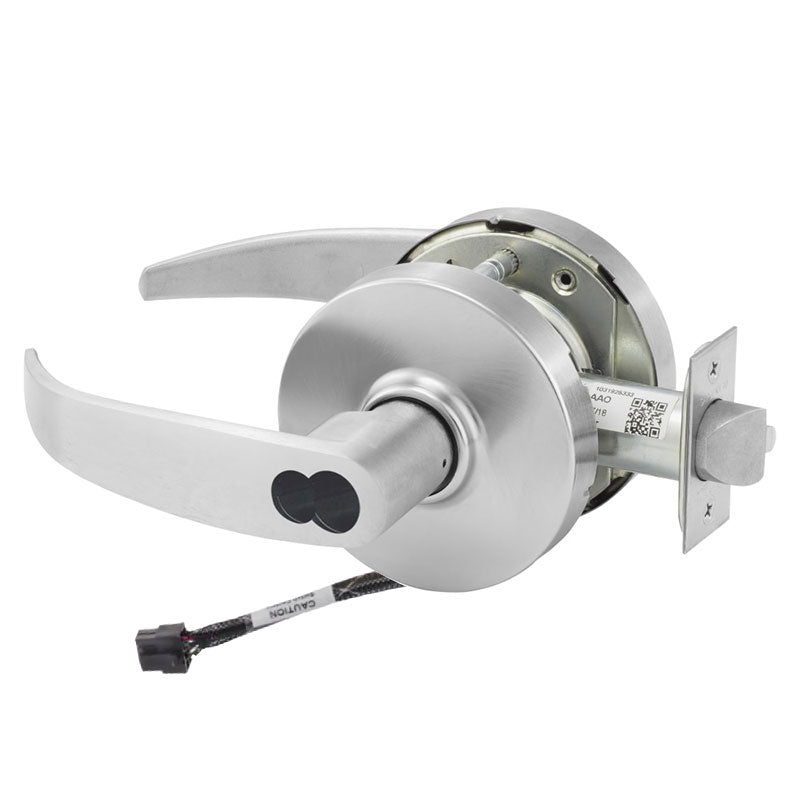

The Sargent 60-10XG70-LP is a Cylindrical Electromechanical Lock that incorporates the Fail-Safe Function, ensuring that the outside lever unlocks in the event of a power failure. The 60 Option is 60 LFIC Interchangeable core, less core. It is equipped with an L-shaped rose, a P-shaped lever, a 2-3/4" backset, and a 4-7/8" strike. The lock is available in voltage options of 12VDC or 24VDC. Sargent 60-10XG70-LP Locks are field-selectable, fail-safe, and fail-secure.

Key Features:

• 70 Function - Fail Safe
• 60 Option - Prepped LFIC Less Core
• 2 3/4" Backset
• 4 7/8" Strike
• ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times
• UL-cUL listed for 3 hour fire doors and windstorm applications

10X-Line Bored Lever Locks

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.

Features

• Compatible with several security key systems (Degree, Signature, KESO, etc.)
• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
• Innovative push/turn button design prevents damage from door stops and walls
• 26 mechanical functions offered
• Available in 14 finishes with multiple lever designs
• Optional Microshield ® antimicrobial coating available
• Lockbody design supports all cylinder formats - from fixed to interchangeable core
• Provides maximum resistance to vandalism and other malicious attacks
• Certified above & beyond testing to withstand high volume traffic
• Complements the look of any design style
• Minimizes inventory stocking requirements
• Simplifies installation in new and retrofit applications
• Integrates with new or existing facility key systems
