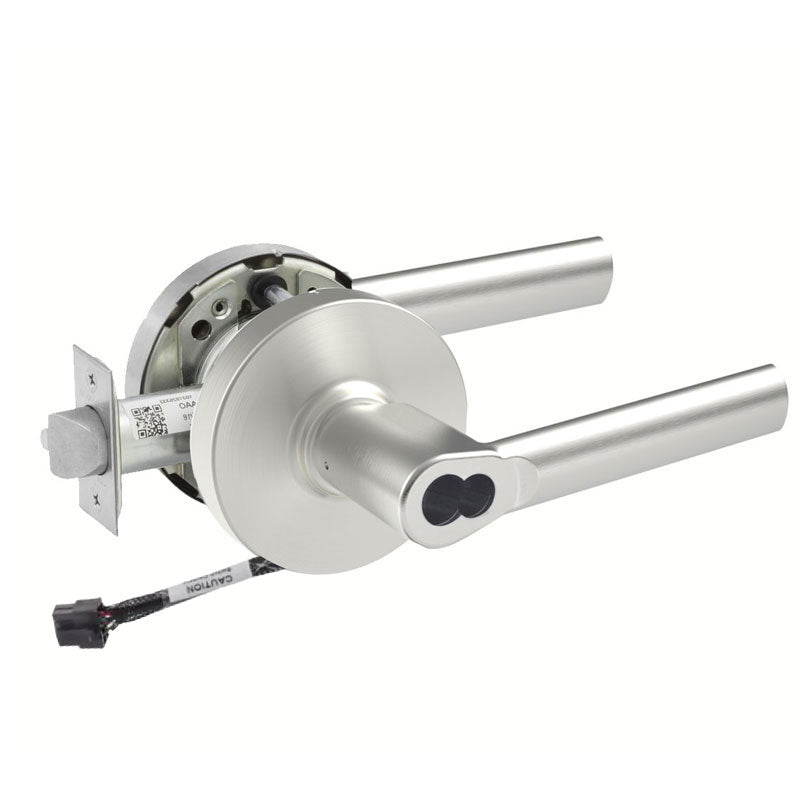

Sargent 60-10XG71-LMB Fail Secure Cylindrical Electromechanical Lock, LFIC Less Core, L Rose, MB Lever, Grade 1

  • SKU: 6010XG71LMBUS26D

Sargent 60-10XG71-LMB Fail Secure Cylindrical Electromechanical Lock, LFIC Less Core, L Rose, MB Lever, Grade 1

  • SKU: 6010XG71LMBUS26D
Sale price$647.51/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time
Finish: US26D Satin Chrome (626)

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 60-10XG71-LMB Fail Secure Cyl...
Quantity
+
Sale priceFrom $647.51
Sargent 6300 LA LFIC Core, LA Keyway,...
Quantity
+
Sale price$98.69
Total

Sargent 60-10XG71-LMB-LFIC Cylindrical Electromechanical Lever Lockset, Fail Secure, LFIC Less Core, Field Reversible, L Rose, MB Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1

The Sargent 60-10XG71-LMB is a Cylindrical Electromechanical Lock that incorporates the Fail-Secure Function, ensuring that the outside lever locks in the event of a power failure. The 60 Option is 60 LFIC Interchangeable core, less core. It is equipped with an L-shaped rose, a MB-shaped lever, a 2-3/4" backset, and a 4-7/8" strike. The lock is available in voltage options of 12VDC or 24VDC. Sargent 60-10XG71-LMB Locks are field-selectable, fail-safe, and fail-secure.

Sargent 10XG71 Function

Key Features:

  • 71 Function - Fail Secure
  • 60 Option - Prepped LFIC Less Core
  • 2 3/4" Backset
  • 4 7/8" Strike
  • ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times
  • UL-cUL listed for 3 hour fire doors and windstorm applications

10X-Line Bored Lever Locks

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.



Features

  • Compatible with several security key systems (Degree, Signature, KESO, etc.)
  • Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
  • Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
  • Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
  • Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
  • Innovative push/turn button design prevents damage from door stops and walls
  • 26 mechanical functions offered
  • Available in 14 finishes with multiple lever designs
  • Optional Microshield ® antimicrobial coating available
  • Lockbody design supports all cylinder formats - from fixed to interchangeable core
  • Provides maximum resistance to vandalism and other malicious attacks
  • Certified above & beyond testing to withstand high volume traffic
  • Complements the look of any design style
  • Minimizes inventory stocking requirements
  • Simplifies installation in new and retrofit applications
  • Integrates with new or existing facility key systems



Manufacturer Sargent
SKU 60-10XG71 LMB
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No






Function 71 Electromechanical (Fail Secure)
Lever/Knob Design MB Lever
Rose/Escutcheon Design L Rose
Cylinder Type LFIC Prep, Disposable Core
Hand Non-handed
Door Thickness 1-3/4" to 2"
Latch Number Oct-00
Latch Type Deadlatch
Latch Backset Dim 2-3/4"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Strike Number 808
Strike Type ANSI Curved Lip Strike
Strike Height 4-7/8"
Strike Width 1-1/4"
Screws Wood/Machine Screws
Operating Voltage 12 or 24 VAC/DC
Amp Draw 250 mA @ 12VAC/VDC or 150mA @ 24VAC/VDC
Product Type Electric Cylindrical Lock
