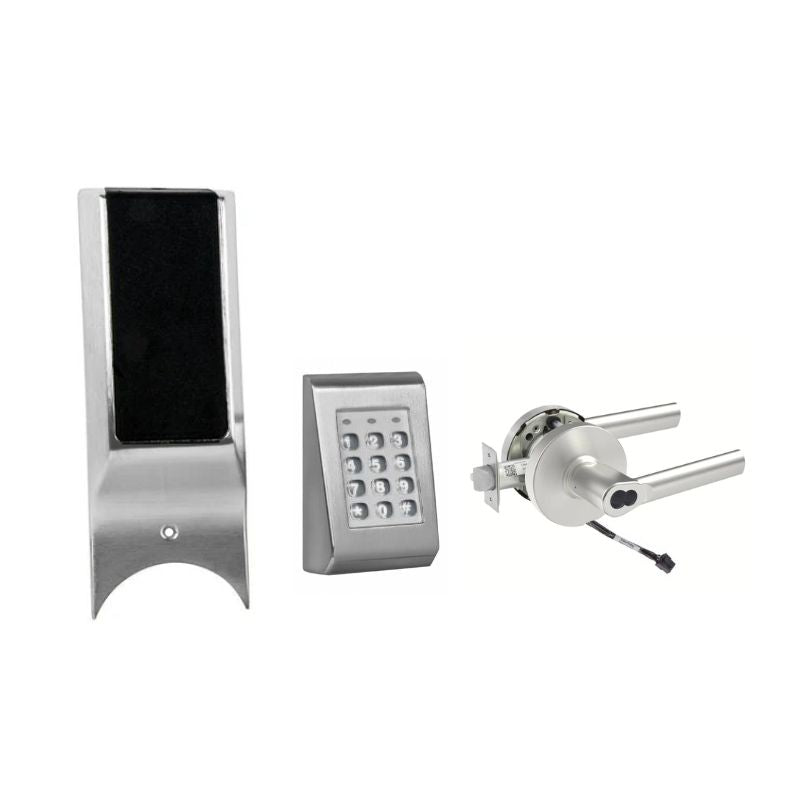

Sargent 60-KP-10XG77-LMB Cylindrical Keypad Lock, With Key Override, L Rose, MB-Lever, LFIC "60" Large Format Interchangeable Prep, Furnished Less Core, Non Handed

The Sargent 60-KP-10XG77-LMB Cylindrical Keypad Lock features key override and a "60" large format interchangeable prep, with a L Rose and MB-Lever. Furnished less core, this non-handed lock is suitable for professional and industry use.

Sargent Keypad (KP) 10X Line Cylindrical Locks Features

The Keypad Operated Products 10X Line Cylindrical lock is available with a wide selection of lever designs and hardware finishes. Its unique design provides uniformity when used with other SARGENT locks at a facility. The KP products offer economical, standalone access control solutions.

• Certified ANSI A156.2 Series 4000 - Grade 1
• UL listed to U.S.A. and Canadian safety standards Listed for 3-hour doors (double doors require 41 - option)
• Motor driven 10X Line cylindrical lock
• Latchbolt brass, 1/2" (13mm) throw; UL Listed 3/4" (19mm) throw (41- option) available
•  2-3/4" (70mm) backset standard. Consult the factory for other backsets available
• Non-handed
• Heavy-duty lever spring return rose assembly
• Steel spacer bushing and extended one-piece bearing sleeves
• Steel mounting studs
• 3 through-bolt position combinations
• Key override standard
• Includes code to activate a horn when keypad buttons are pushed
• Not available with 82-, F1-82, 83-, F1-83, or 84- options
• For 1-3/4" (44mm) thick doors standard
