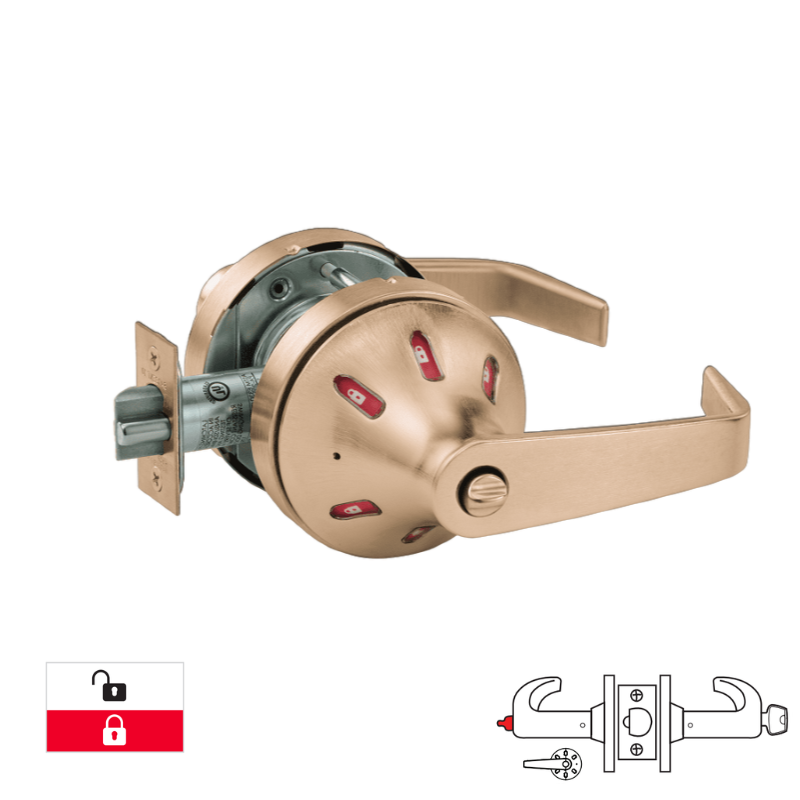

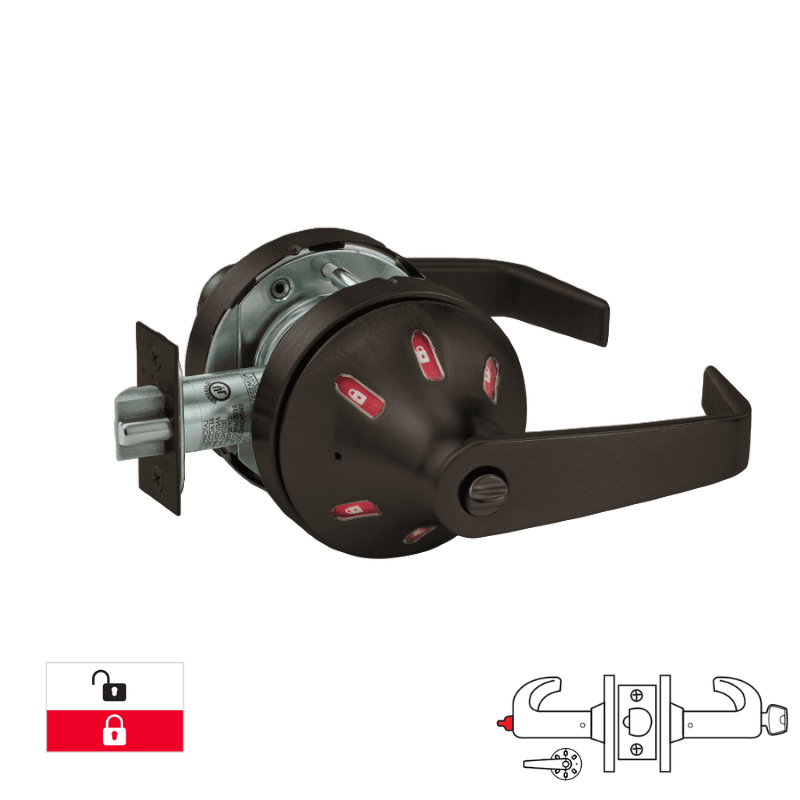

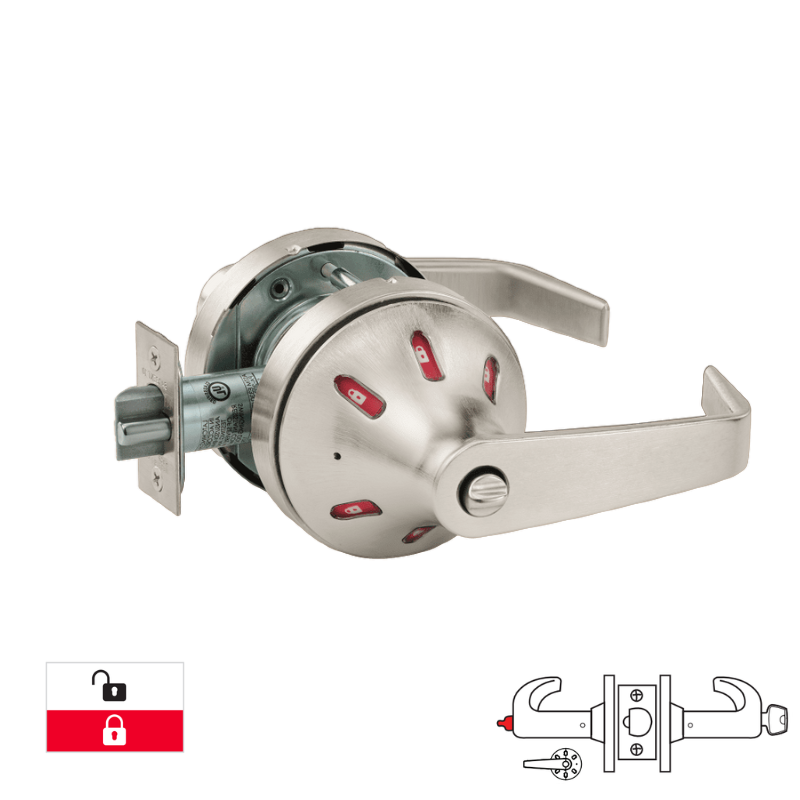

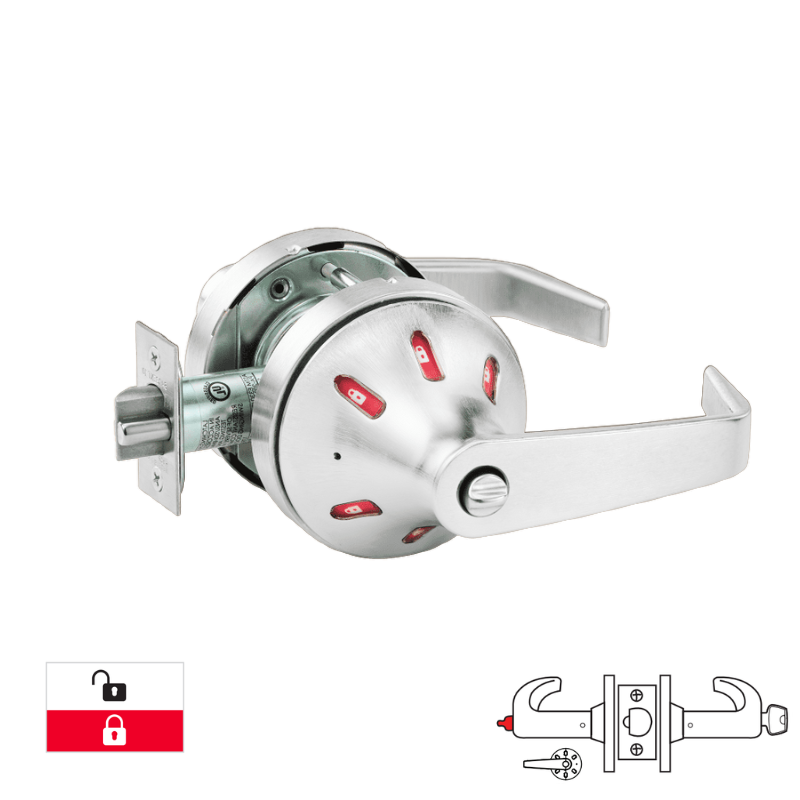

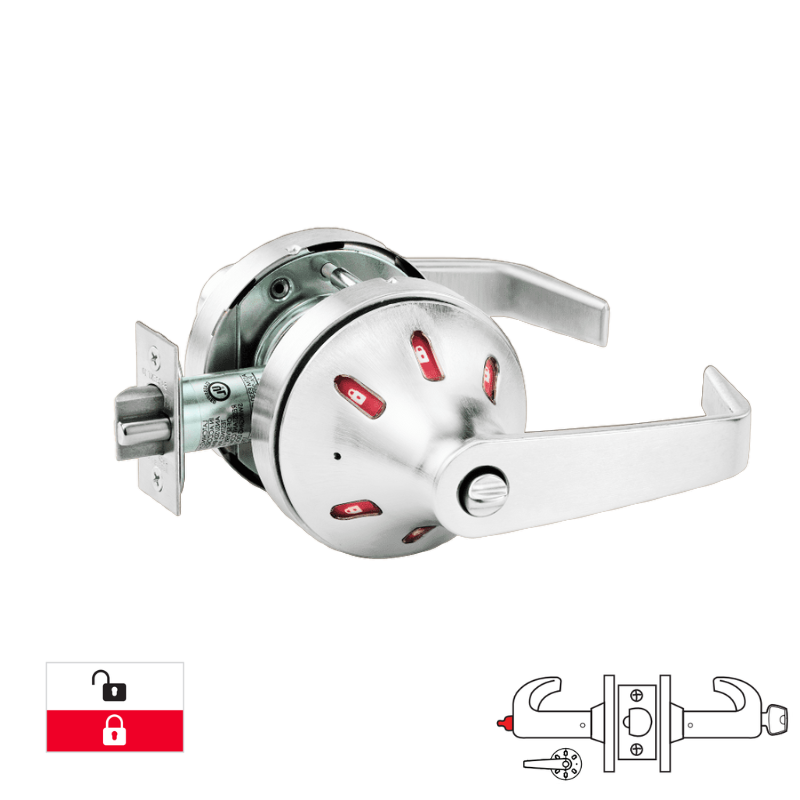

Sargent 60-V06-10XG05-VSLL Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, LFIC, Less Core, Grade 1
Sargent 60-V06-10XG05-VSLL Office Function Cylindrical Lock features a "VSL" rose and an "L" lever design with a visual indicator trim visible only from the inside. It includes a 2 3/4-inch backset, a 4 7/8-inch strike, and is Grade 1 rated. This LFIC model is sold without a core for flexible installation options.
Entrance or Office Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push/turn button in inside lever
- Push button released by key outside or lever inside
- Turn button must be released manually
- Key retracts latch when outside lever is locked
- ANSI/BHMA F109
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
