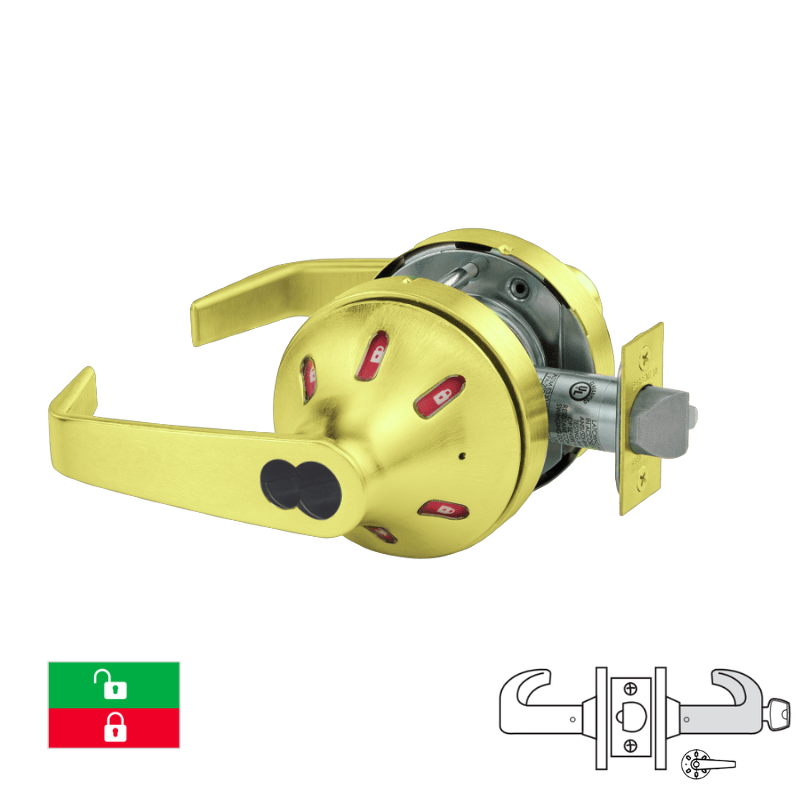

Sargent 60-V30-10XG04-VSLL-US3
Sargent 60-V30-10XG04-VSLL-US4
Sargent 60-V30-10XG04-VSLL-US10
Sargent 60-V30-10XG04-VSLL-US10
Sargent 60-V30-10XG04-VSLL-US10BE

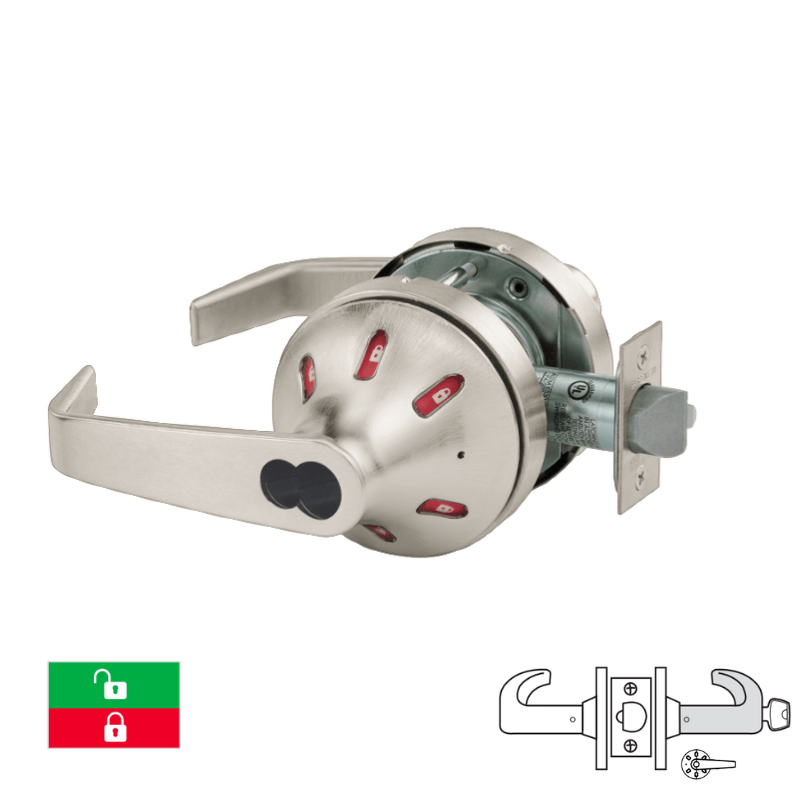

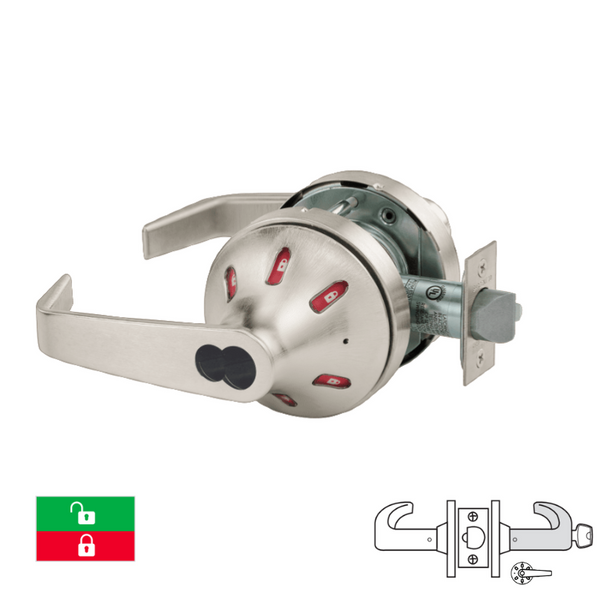

Sargent 60-V30-10XG04-VSLL-US15
Sargent 60-V30-10XG04-VSLL-US26

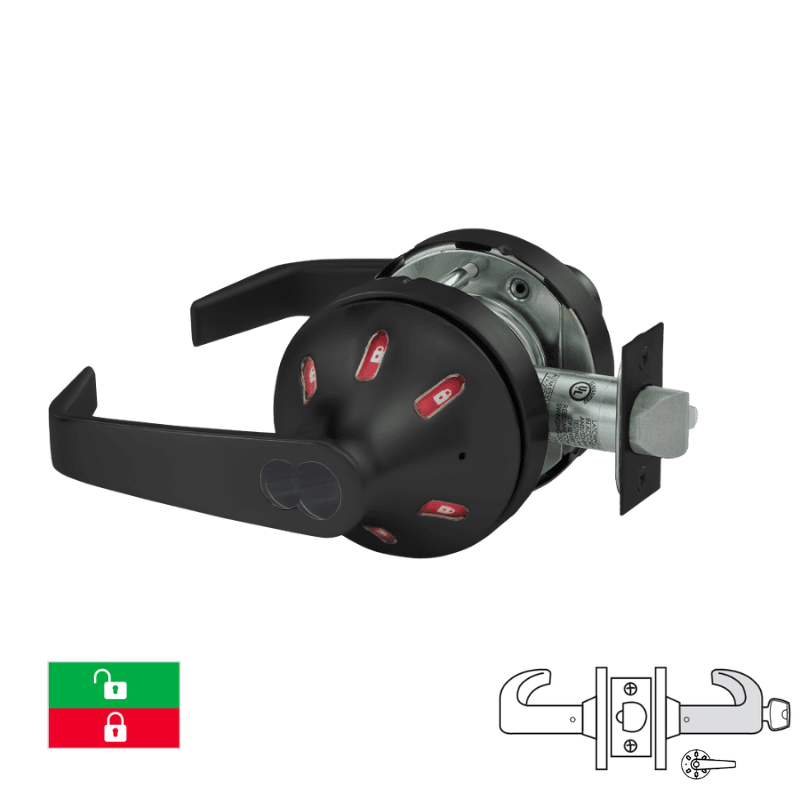

Sargent 60-V30-10XG04-VSLL-BSP

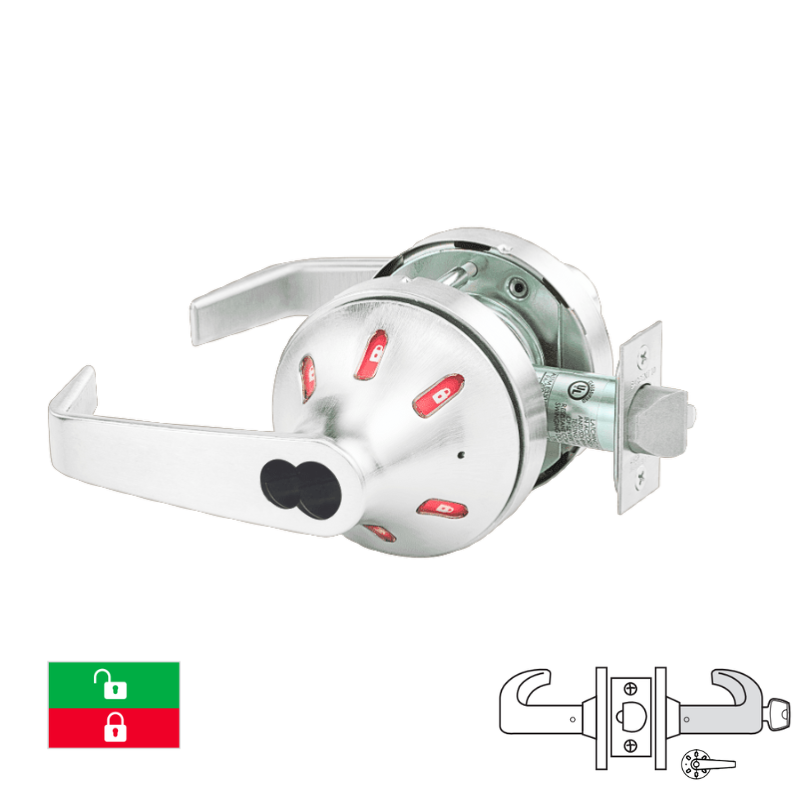

Sargent 60-V30-10XG04-VSLL-WSP
Sargent 60-V30-10XG04-VSLL-US26D
Sargent 60-V30-10XG04-VSLL Storeroom Function Cylindrical Lock, Visual Indicator Trim Outside Only, Green/Red, LFIC Less Core
Sargent 60-V30-10XG04-VSLL Storeroom Function Cylindrical Lock, Visual Indicator Trim Outside Only, Green/Red, LFIC Less Core
Sargent 60-V30-10XG04-VSLL-US3
Sargent 60-V30-10XG04-VSLL-US4
Sargent 60-V30-10XG04-VSLL-US10
Sargent 60-V30-10XG04-VSLL-US10
Sargent 60-V30-10XG04-VSLL-US10BE
Sargent 60-V30-10XG04-VSLL-US15
Sargent 60-V30-10XG04-VSLL-US26
Sargent 60-V30-10XG04-VSLL-BSP
Sargent 60-V30-10XG04-VSLL-WSP
All SARGENT Products

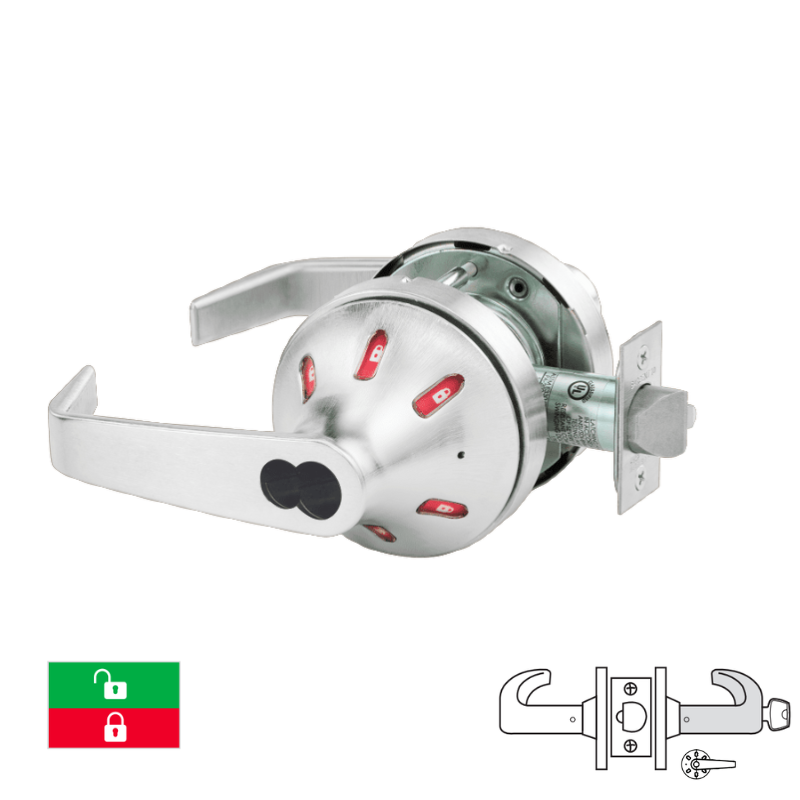

Sargent 60-V30-10XG04-VSLL Storeroom Function Cylindrical Lock, Visual Indicator Trim Outside Only, Green/Red, LFIC Less Core

  • SKU: 60V3010XG04VSLLUS26D
$574.57/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 60-V30-10XG04-VSLL Storeroom ...
Quantity
–
+
From $574.57
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
From $384.60
Total

Sargent 60-V30-10XG04-VSLL Storeroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, LFIC, Less Core, Grade 1

The Sargent 60-V30-10XG04-VSLL is a Grade 1 cylindrical lock designed for storeroom applications. It features a "VSL" rose and an "L" style lever, with a visual indicator trim on the exterior showing green and red status. The lock includes a 2 3/4" backset, 4 7/8" strike, and is provided less core with LFIC compatibility.

Storeroom or Closet Function:

  • Deadlocking latch
  • Latch by lever inside or key outside
  • Outside lever locked at all times

Single Indicator:

Option Code Outside Inside  Color
V30 Indicator Trim Standard Trim Green/Red - Icon
V60 Indicator Trim Standard Trim White/Red - Icon
V03 Standard Trim Indicator Trim Green/Red - Icon
V06 Standard Trim Indicator Trim White/Red - Icon

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.

Manufacturer Sargent
SKU 60-V30-10XG04 VSLL
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Application Indicator with Icons
Function 04-Storeroom or Closet
Function Family Privacy
Lever/Knob Design L Lever
Rose/Escutcheon Design VSL Rose
Cylinder Type LFIC Disposable Construction Core
Handing Non-handed
Door Thickness 1-3/4" to 2"
Bore Hole Diameter 2-1/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
