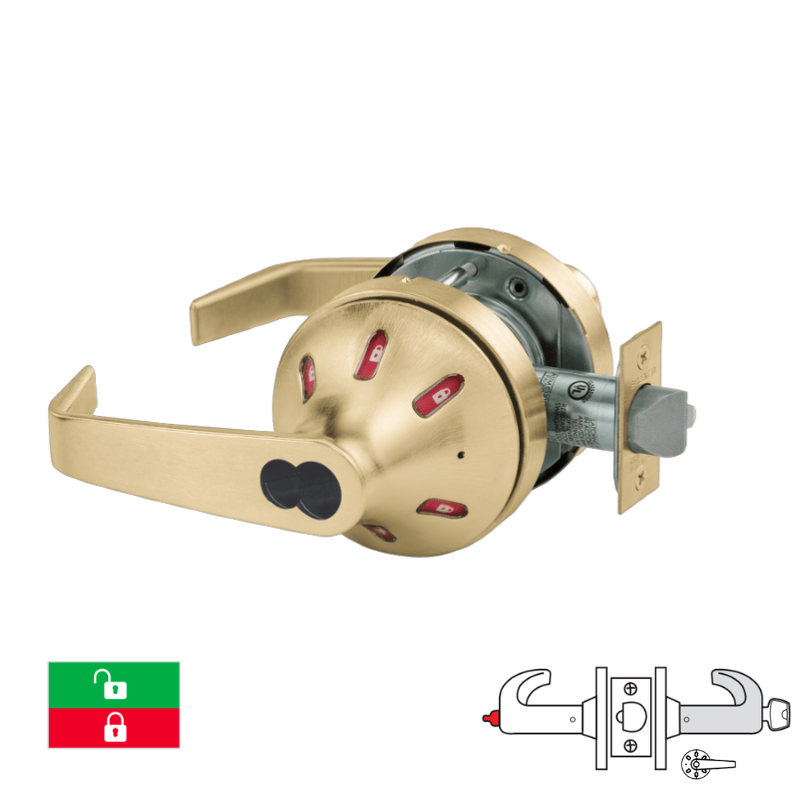

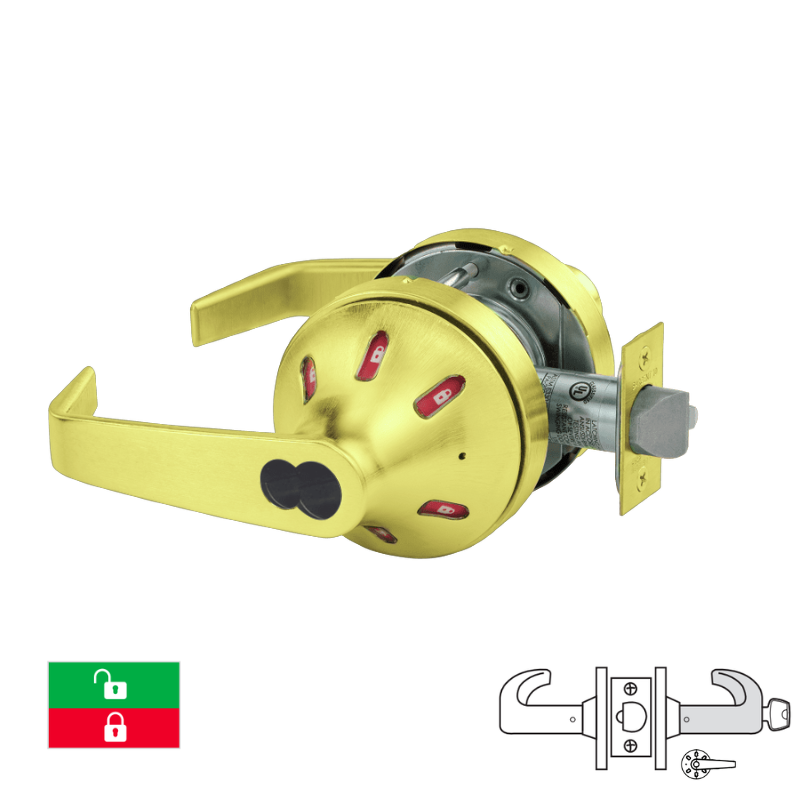

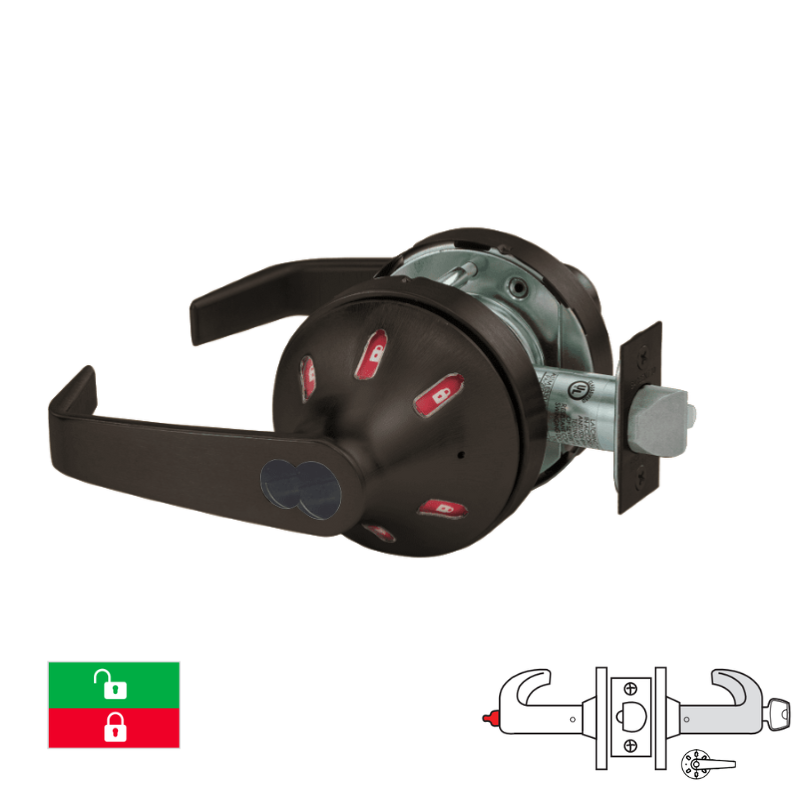

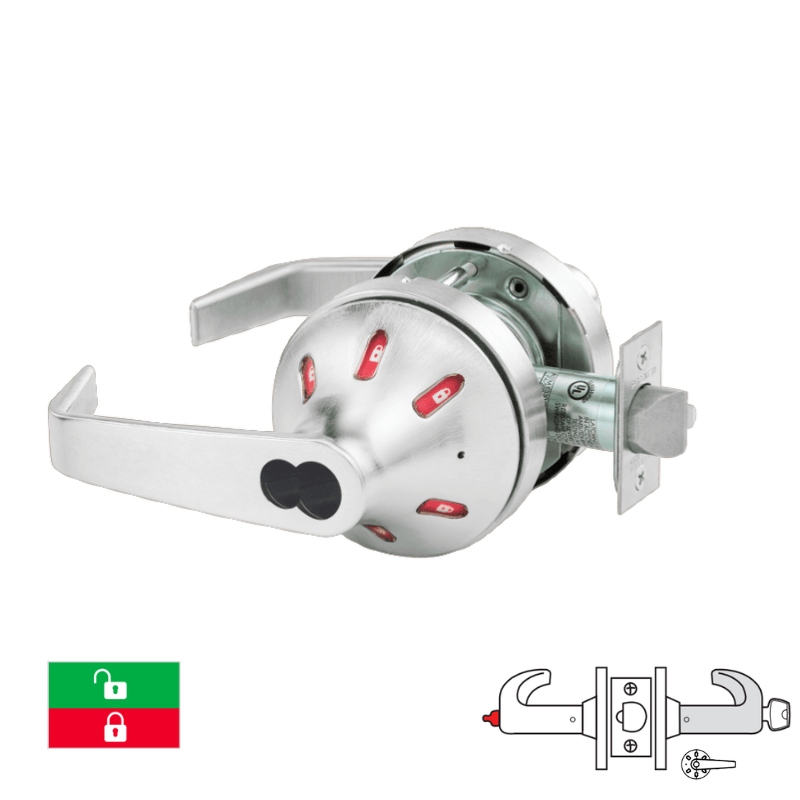

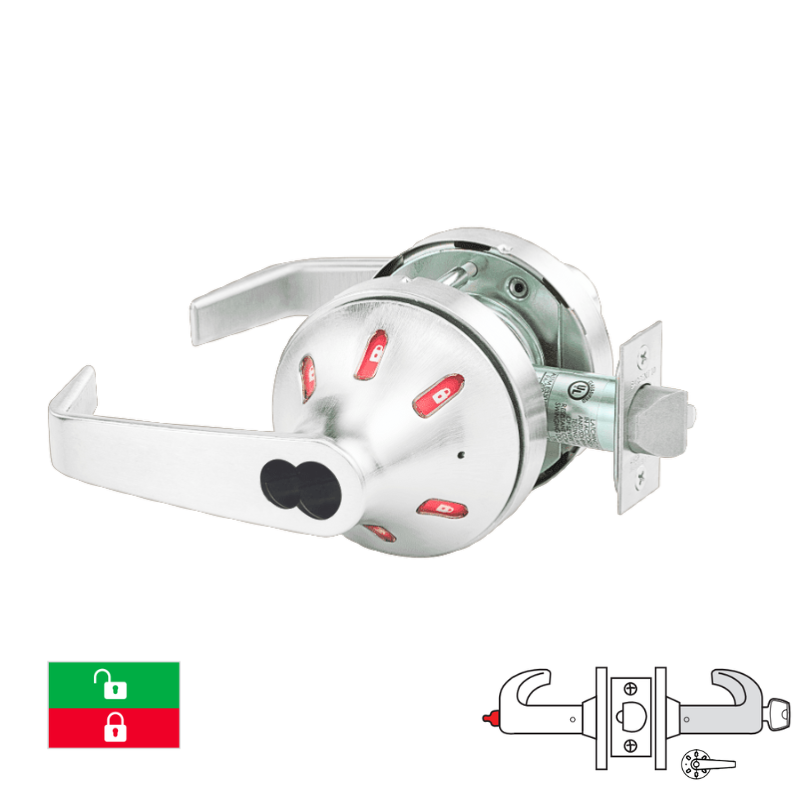

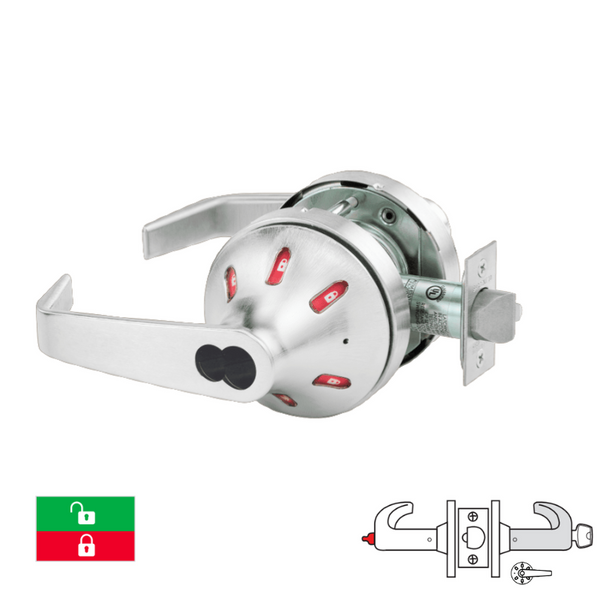

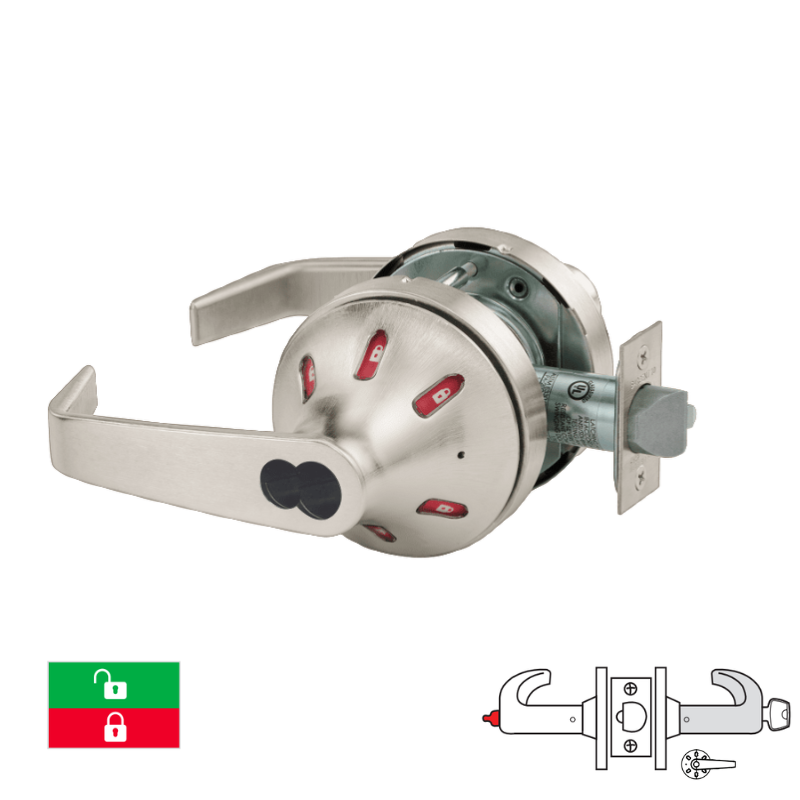

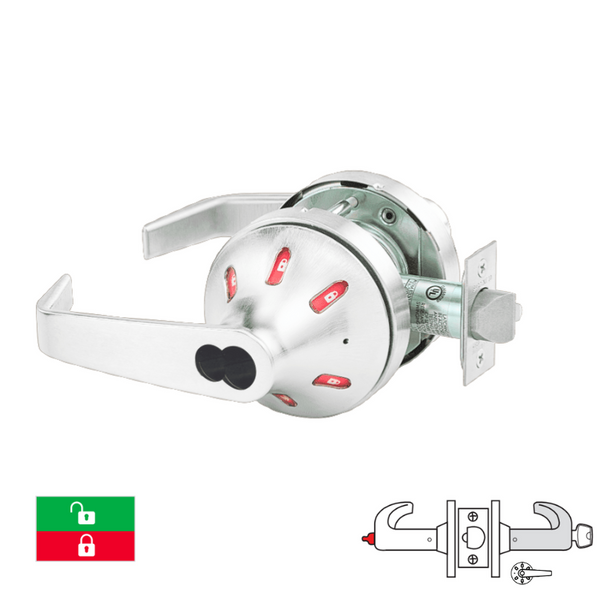

Sargent 60-V30-10XG05-VSLL Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, LFIC, Less Core, Grade 1
The Sargent 60-V30-10XG05-VSLL is a Grade 1 cylindrical lock with an office function, featuring a "VSL" rose and an "L" lever design. It is equipped with a visual indicator trim on the outside only, displaying green and red. This lock has a 2 3/4-inch backset, a 4 7/8-inch strike, and comes as LFIC less core.
Entrance or Office Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push/turn button in inside lever
- Push button released by key outside or lever inside
- Turn button must be released manually
- Key retracts latch when outside lever is locked
- ANSI/BHMA F109
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
