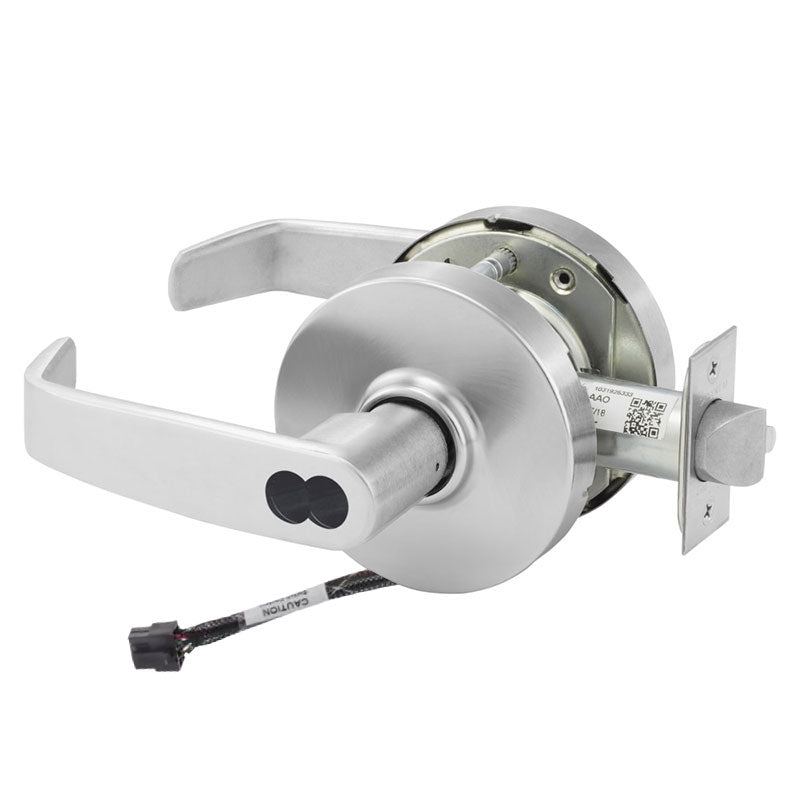

Sargent 70-10XG70-LL Fail Safe Cylindrical Electromechanical Lock, SFIC Less Core, L Rose, L Lever, Grade 1

  • SKU: 7010XG70LLUS26D

Sargent 70-10XG70-LL Fail Safe Cylindrical Electromechanical Lock, SFIC Less Core, L Rose, L Lever, Grade 1

  • SKU: 7010XG70LLUS26D
Sale price$734.76/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time
Finish: US26D Satin Chrome (626)

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 70-10XG70-LL Fail Safe Cylind...
Quantity
+
Sale priceFrom $734.76
KSP 206-A-KD SFIC Combinated Core - A...
Quantity
+
Sale price$52.00
KSP 206A Control Key Blank For KSP 20...
Quantity
+
Sale price$9.79
Total

The Sargent 70-10XG70-LL is a Cylindrical Electromechanical Lock with a Fail Safe Function, enabling the outside lever to unlock during a power failure. The 70 Option is 7SFIC Small Format Interchangeable core, less core. It features an L-shaped rose, a L-shaped lever, a 2-3/4" backset, and a 4-7/8" strike, and is available in voltage options of 12VDC or 24VDC. Sargent 70-10XG70-LL Locks are field-selectable, fail-safe, and fail-secure.

Sargent 10XG70 Function

Key Features:

  • 70 Function - Fail Safe
  • 70 Option - SFIC Less Core
  • 2 3/4" Backset
  • 4 7/8" Strike

10X-Line Bored Lever Locks

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.

Features

  • Compatible with several security key systems (Degree, Signature, KESO, etc.)
  • Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
  • Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
  • Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
  • Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
  • Innovative push/turn button design prevents damage from door stops and walls
  • 26 mechanical functions offered
  • Available in 14 finishes with multiple lever designs
  • Optional Microshield ® antimicrobial coating available
  • Lockbody design supports all cylinder formats - from fixed to interchangeable core
  • Provides maximum resistance to vandalism and other malicious attacks
  • Certified above & beyond testing to withstand high volume traffic
  • Complements the look of any design style
  • Minimizes inventory stocking requirements
  • Simplifies installation in new and retrofit applications
  • Integrates with new or existing facility key systems



Manufacturer Sargent
SKU 70-10XG70 LL
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No






Function 70-Electromechanical (Fail Safe)
Lever/Knob Design L Lever
Rose/Escutcheon Design L Rose
Cylinder Type SFIC Prep, Disposable Core
Hand Non-handed
Door Thickness 1-3/4" to 2"
Latch Number Oct-00
Latch Type Deadlatch
Latch Backset Dim 2-3/4"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Strike Number 808
Strike Type ANSI Curved Lip Strike
Strike Height 4-7/8"
Strike Width 1-1/4"
Screws Wood/Machine Screws
Operating Voltage 12 or 24 VAC/DC
Amp Draw 250 mA @ 12VAC/VDC or 150mA @ 24VAC/VDC
Product Type Electric Cylindrical Lock
