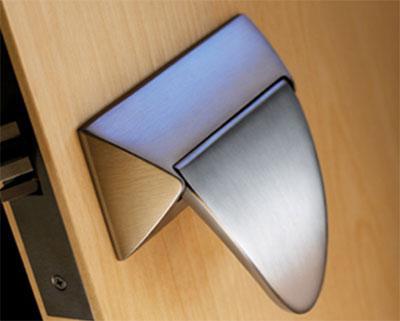

The Sargent 70-8267-ALP-US32D is a Grade 1 Heavy Duty Ligature Resistant Institutional Privacy function Mortise Lock with ALP Push/Pull Trim and comes in US32D Satin Stainless Steel Finish.
Sargent 70-8267-ALP-US32D has a 2-3/4" backset, for doors 1-3/4" to 1-7/8" thickness, and can be mounted horizontal (up or down) and vertical (sideways) orientations in the field.
8200 Series Overview
The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block. Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.
Manufacturer | Sargent |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
Application | Ligature Resistant |
Base Material | Stainless Steel |
BAA Qualified | Yes |
Limited Warranty | 10 Years |
Fire Rated | 2 Hours {B} |
Function | 67 Institutional Privacy |
ANSI Function |
F26 - Institutional Privacy |
Lever/Knob Design |
ALP |
Cylinder Type | SFIC Less Core |
Handing | Field Reversible |
Door Thickness | 1-3/4 In. |
Std. Latch Type | Dead Latch (Guarded) |
Std. Latch Backset Dim | 2-3/4 In. |
Lock Face Size | 8 In. x 1-1/4 In. |
Bolt Projection | 3/4 In. Latch |
Std. Strike Number | 82-0110 |
Std. Strike Type | ASA Strike |
Std. Strike Height | 4-7/8 In. |
Std. Strike Width | 1-1/4 In. |
Screws | Combination |
Product Type | Mortise Lock |
