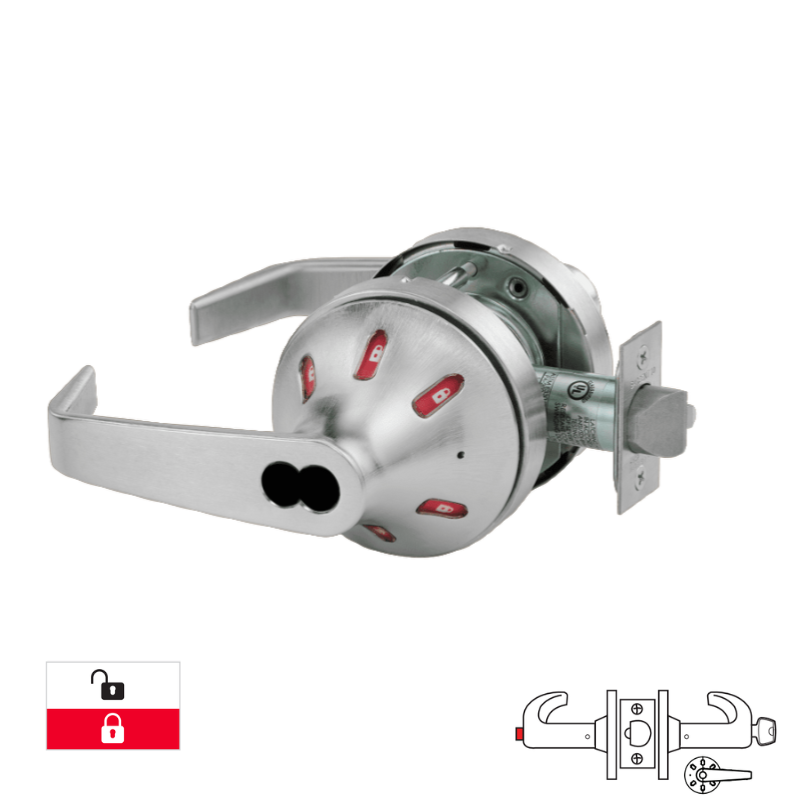

Sargent 70-V60-10XG44-VSLL Service Station Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1

The Sargent 70-V60-10XG44-VSLL Service Station Cylindrical Indicator Lock is a Grade 1 commercial lockset designed for restroom and service area applications, featuring a deadlocking latch with pushbutton locking from the inside and key override from the outside for secure and reliable operation. This model includes an exterior visual occupancy indicator only with white/red icon status, paired with standard interior trim, and is configured with an L lever and VSLL rose for a clean, durable appearance. Built to ANSI/BHMA A156.2 F82A standards, it fits 1-3/4" to 2" thick doors, includes a 2-3/4" backset and 4-7/8" strike, accepts an SFIC core (less core), and is UL listed with a 3-hour fire rating, making it ideal for high-traffic commercial and institutional environments requiring clear exterior occupancy indication and long-term durability.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F82A

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
