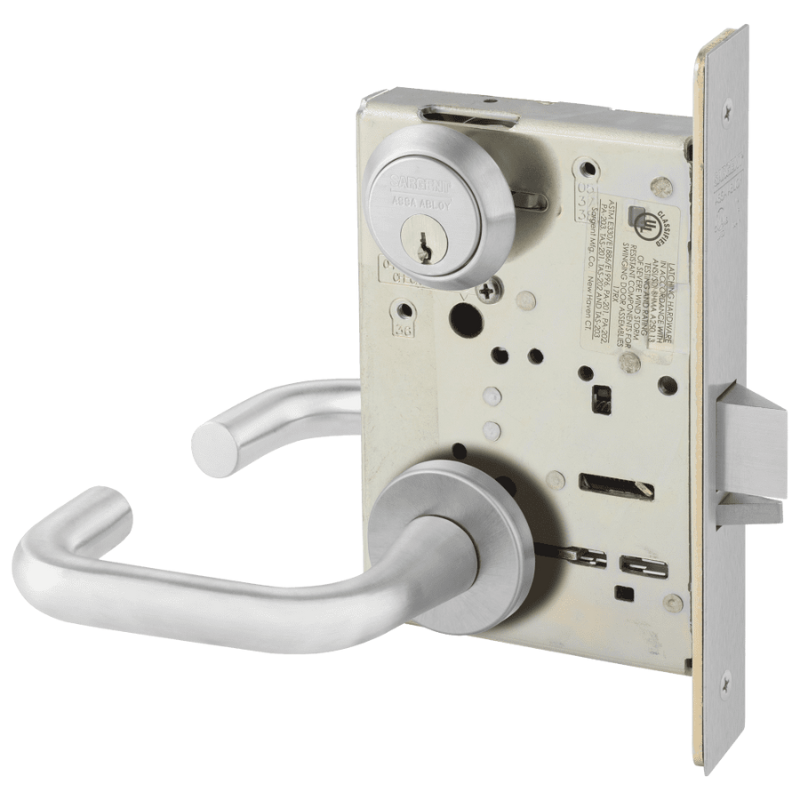

Sargent 8204-LNJ-26D Storeroom or Closet Function Mortise Lock, LA Keyway, LN Rose, J Lever, Satin Chrome

  • SKU: 8204LNJUS26D

Sargent 8204-LNJ-26D Storeroom or Closet Function Mortise Lock, LA Keyway, LN Rose, J Lever, Satin Chrome

  • SKU: 8204LNJUS26D
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$659.43/ea
0% Net 30 Days: Apply Now

Sargent 8204-LNJ-US26D Storeroom or Closet Mortise Lock, Key Retracts Latch, LN Rose, J Lever, LA Keyway, Keyed Different, [2] Keys, Grade 1, Field Reversible, 626 Satin Chrome

Manufacturer Sargent
Grade Grade 1
Origin USA
Unit of Measure Each
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}

Function 04 Storeroom Function
ANSI Function
F07 - Storeroom/Exit

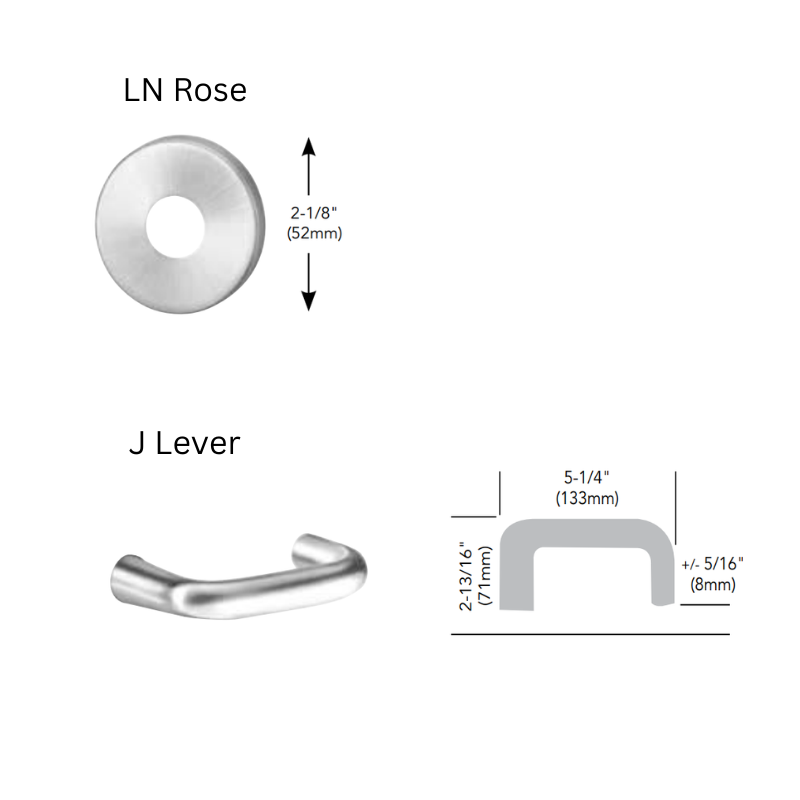

Lever/Knob Design
J - Lever
Rose/Escutcheon Design
LN - Rose
Cylinder Type
Conventional Cylinder
Num Pins 6
Std. Keyway LA
Keying Keyed Different
Key(s) Cut
Num of Keys 2
Handing Field Reversible
Door Thickness 1-3/4 In.
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4 In.
Lock Face Size 8 In. x 1-1/4 In.
Bolt Projection 3/4 In. Latch
Std. Strike Number 82-0110
Std. Strike Type ASA Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Mortise Lock

Cylinder Mortise Handing Chart
