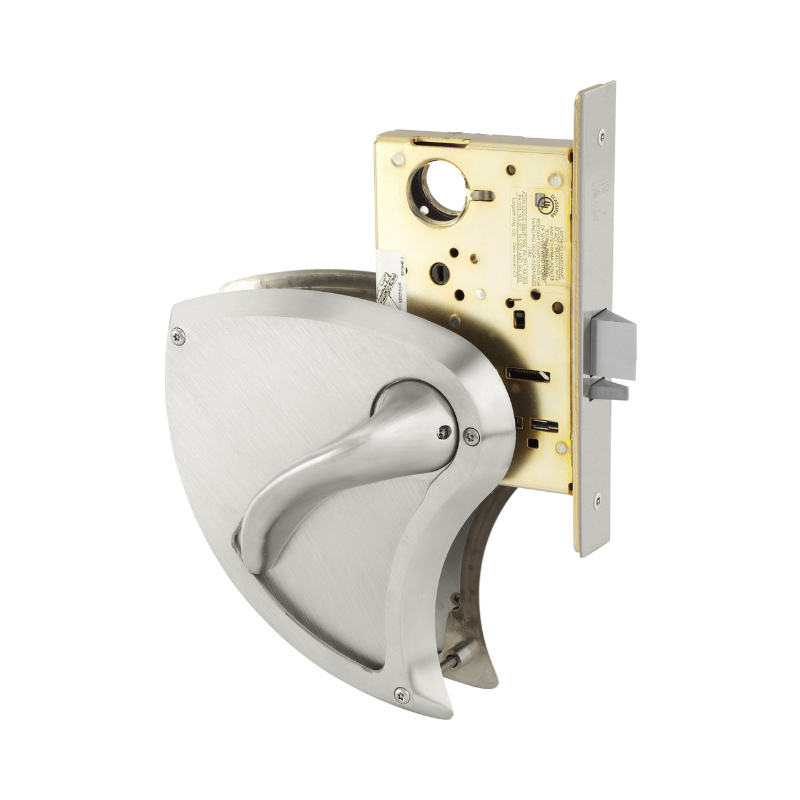

Sargent 8205-BHW-US32D-LC Behavioral Health Mortise Lock, Office or Entry Function, BHW Trim, Less Cylinder, Satin Stainless Steel

  • SKU: 8205BHWUS32DLHLC
Sargent 8205-BHW-US32D-LC
Sargent 8205-BHW-US32D-LC Behavioral Health Mortise Lock, Office or Entry Function, BHW Trim, Less Cylinder, Satin Stainless Steel
Sargent 8205-BHW-US32D-LC
Sargent 8205-BHW-US32D-LC Behavioral Health Mortise Lock, Office or Entry Function, BHW Trim, Less Cylinder, Satin Stainless Steel
All SARGENT Products

Sargent 8205-BHW-US32D-LC Behavioral Health Mortise Lock, Office or Entry Function, BHW Trim, Less Cylinder, Satin Stainless Steel

  • SKU: 8205BHWUS32DLHLC
$1,593.38/ea
Available (2 Weeks)
2 Weeks Lead Time
Handing: LH - Left Hand

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 8205-BHW-US32D-LC Behavioral ...
Quantity
–
+
$1,593.38
Sargent Mortise Cylinders - Multiple ...
Quantity
–
+
From $117.39
Total

Sargent 8205-BHW-US32D-LH Behavioral Health Office or Entry Function Mortise Lock, Key Retracts Latch, BHW Trim, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent 8205-BHW-US32D-LC Behavioral Health Mortise Lock is designed for office or entry applications. Featuring BHW trim and a key-retractable latch, this Grade 1 lock is field reversible for versatile installation. It comes without a cylinder and is finished in satin stainless steel.

  • Office or Entry Function:
    • Key outside retracts latchbolt, also locks & unlocks outside trim
    • Trim inside always retracts latchbolt, trim outside remains locked
    • Thumbturn inside locks & unlocks outside trim
    • Auxiliary deadlatch
  • Uses standard mortise prep
  • Less Cylinder
  • ANSI/BHMA Grade 1
  • Tapered surfaces on all components
  • Handed
  • ADA Compliant
  • 6 Lobe head security screws (Torx® type)
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Ligature Resistant
Base Material Stainless Steel
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}

Function 05 Office or Entry Function
Lever/Knob Design BHW Lever
Cylinder Type Less Cylinder
Handing Field Reversible
Door Thickness 1-3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latch
Std. Strike Number 82-0110
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Mortise Lock
Product Cut Sheet

Cylinder Mortise Handing Chart
