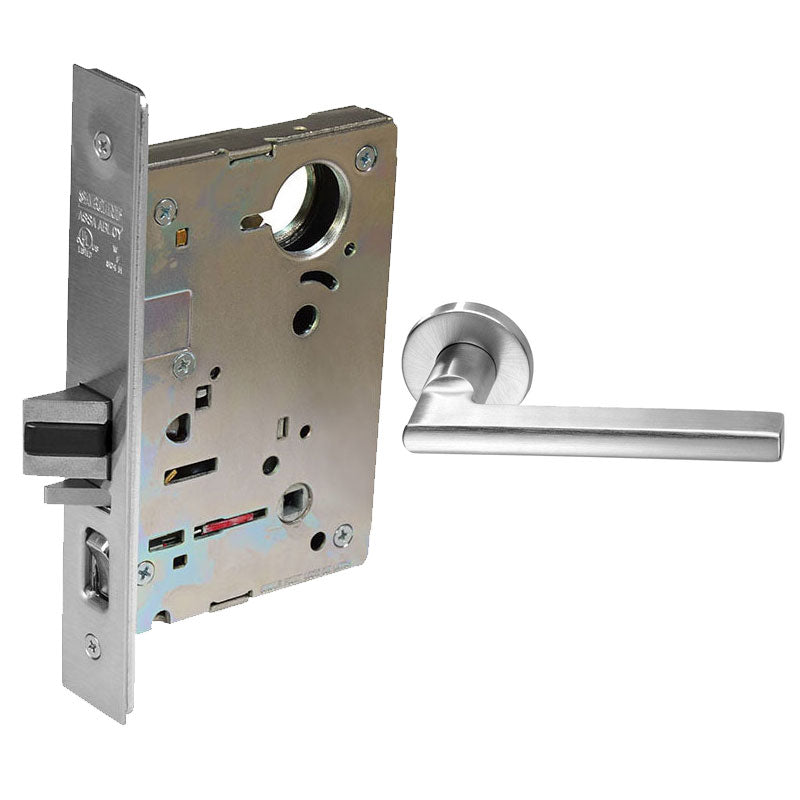

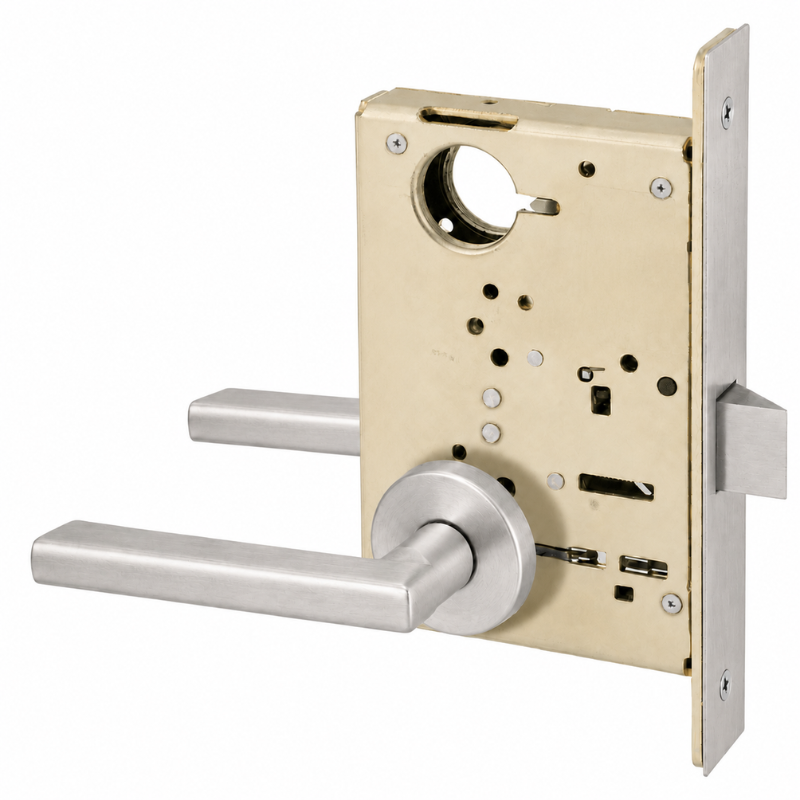

Sargent 8215-LNMD Passage or Closet Mortise Lock, MD Lever, LN Rose, Field Reversible

  • SKU: 8215LNMDUS26D

Sargent 8215-LNMD Passage or Closet Mortise Lock, MD Lever, LN Rose, Field Reversible

  • SKU: 8215LNMDUS26D
  • Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$625.05/ea
0% Net 30 Days: Apply Now
Finish: US26D Satin Chrome (626)

Sargent 8215-LNMD Mortise Lock, Passage-Closet Function, LN Rose, MD Studio Collection, Field Reversible

The Sargent 8215-LNMD is a Grade 1 mortise lock built for the demands of commercial and institutional openings where reliable, everyday performance matters. Configured for passage or closet duty, it operates freely with no locking function, making it ideal for corridors, storage rooms, and interior doors that require latching without security. This model pairs the sculpted MD lever from Sargent's Studio Collection with the clean, contemporary LN rose, delivering a refined look that works across modern architecture. The lock is fully field reversible, allowing installers to adapt handing on site and reduce inventory. As part of the trusted 8200 Series, it offers the durability Sargent is known for.

Features

  • Passage or closet function operates the latch from either side at all times with no locking capability.
  • MD lever design from the Studio Collection provides a modern, ergonomic grip.
  • LN rose offers a sleek, low-profile trim appearance.
  • Field reversible handing simplifies installation and stocking.
  • Grade 1 heavy-duty mortise construction for high-traffic environments.
  • Part of the proven Sargent 8200 Series mortise lock platform.

Functional Details

The passage/closet function (8215) allows the door to latch without any locking mechanism. The lever retracts the latchbolt from either side at all times, keeping the opening freely operable while still holding the door closed.

  • Latchbolt operated by lever from either side at all times.
  • No locking function.
Manufacturer Sargent
SKU 8215-LNMD
Series 8200 Series Mortise Lock
Function Passage or Closet
Lever Design MD (Studio Collection)
Rose Design LN
Grade ANSI/BHMA Grade 1
ANSI Number F01
Handing Field Reversible
Origin Made in USA
Unit of Measure Each
Limited Warranty Manufacturer's limited warranty
Latchbolt Throw 3/4"
Backset 2-3/4"
Door Thickness 1-3/4" standard (thicker available)
Lock Case Wrought steel, zinc dichromate finish
Faceplate 1-1/4" x 8" armored front
Strike ANSI curved lip strike, 1-1/4" x 4-7/8"
Lever Material Cast lever with return-to-door design
Rose Diameter 3-1/2" (LN escutcheon/rose)
Cycle Rating Grade 1 heavy-duty cycle tested
Latchbolt Material Stainless steel
Anti-Friction Latch Included on latchbolt
