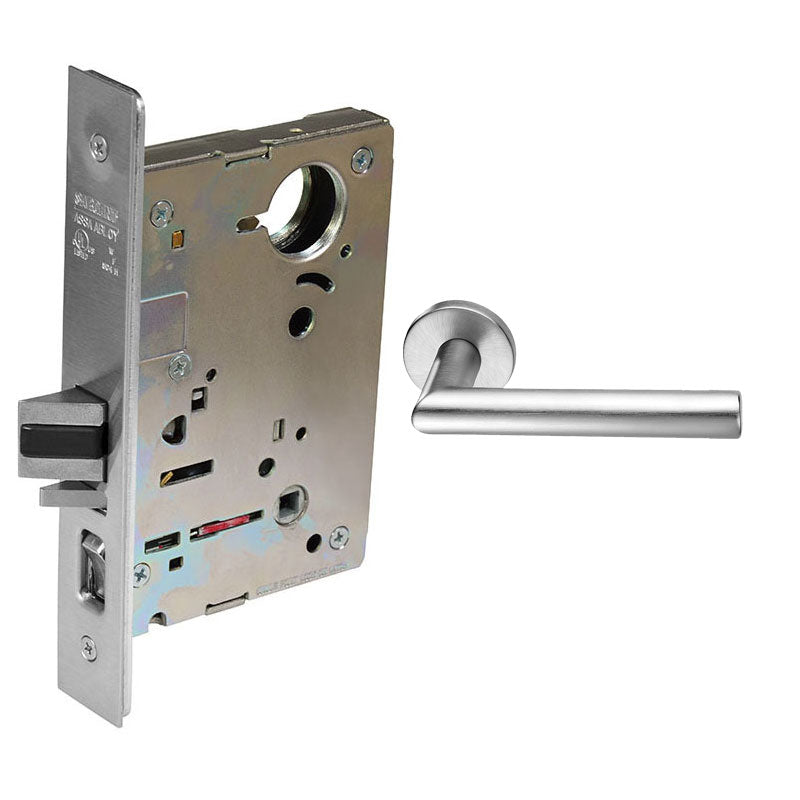

Sargent 8215-LNMI Passage or Closet Mortise Lock, MI - Lever, LN - Rose, Field Reversible

  • SKU: 8215LNMIUS26D

Sargent 8215-LNMI Passage or Closet Mortise Lock, MI - Lever, LN - Rose, Field Reversible

  • SKU: 8215LNMIUS26D
Sale price$567.39/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US26D Satin Chrome (626)
Visa Mastercard American Express Discover Shop Pay Apple Pay

The Sargent 8215-LNMI mortise lock features a Passage or Closet function with an MI Lever, LN Rose, comes Field Reversible and is Grade 1 Heavy Duty. The passage function is a non-keyed function that allows for free egress from both the outside and inside trim.

Passage or Closet Function - ANSI F01

  • Trim from either side retracts latch bolt at all times
    Sargent 8215 Function Chart

Sargent 8200 Series Overview

The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block. Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.

With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing for additional resistance against vandalism and unauthorized entry.

The electromechanical version of the 8200 Series Mortise Lock operates from 12 to 24VDC and can be used in stand-alone applications or as part of an integrated access control system. Featuring EcoFlex technology, the electromechanical version dramatically reduces power consumption by up to 96%, as certified by GreenCircle.

Features

  • ANSI/BHMA Grade 1 certified for cycle and strength requirements
  • UL-cUL listed for 3-hour fire doors and windstorm applications
  • Thru-bolted lever trim and strengthened cylinder retainer
  • Available with security key systems (Degree, Signature, KESO, and XC)
  • Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim), and monitoring
  • 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
  • Available with behavioral health trim
  • 10-year warranty
  • Patented design and construction
Manufacturer Sargent
Grade Grade 1
Installation
Origin USA
Unit of Measure Each
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}



Function 15-Passage or Closet
ANSI Function F01 - Passage
Lever/Knob Design MI - Lever
Rose/Escutcheon Design LN - Rose
Handing Field Reversible
Door Thickness 1 3/4 In.
Std. Latch Type Spring Latch (Unguarded)
Std. Latch Backset Dim 2 3/4 In.
Lock Face Size 8 In. x 1 1/4 In.
Bolt Projection 3/4 In. Latch
Std. Strike Number 82-0110
Std. Strike Type ASA Strike
Std. Strike Height 4 7/8 In.
Std. Strike Width 1 1/4 In.
Screws Combination
Product Type Mortise Lock

Cylinder Mortise Handing Chart
