Description

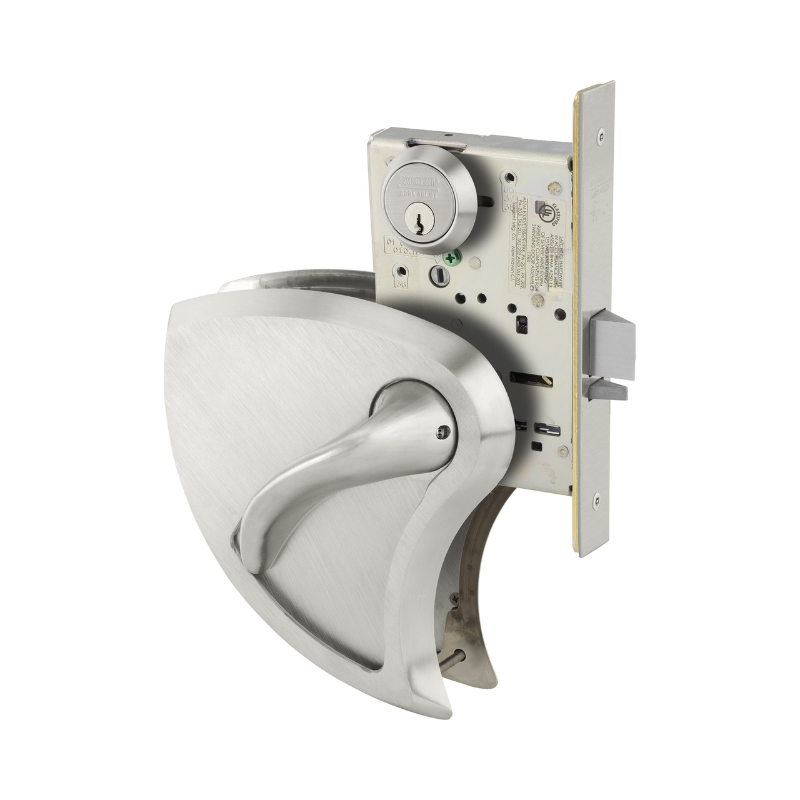

Sargent 8237-BHW-US32D-KD Behavioral Health Classroom Function Mortise Lock, Key Retracts Latch, BHW Trim, STD LA Keyway Keyed Different, Grade 1, Field Reversible, 630 Satin Stainless Steel
The Sargent 8237-BHW-US32D-KD Behavioral Health Mortise Lock is designed for classroom use with a latch retracted by key operation. Featuring BHW trim, standard LA keyway keyed different, Grade 1 durability, and field reversibility, it comes in a satin stainless steel finish (630).

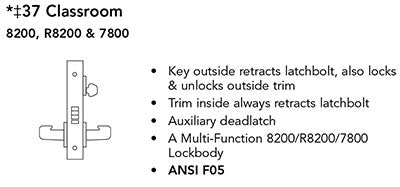

- Classroom Function:
- Key outside retracts latchbolt, also locks & unlocks outside trim
- Trim inside always retracts latchbolt
- Auxiliary deadlatch
- Key outside retracts latchbolt, also locks & unlocks outside trim
- Uses standard mortise prep
- STD LA Keyway Keyed Different
- ANSI/BHMA Grade 1
- Tapered surfaces on all components
- Handed
- ADA Compliant
- 6 Lobe head security screws (Torx® type)
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Liature Resistant |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
Technical Specs
| Function | 37 Classroom Function |
| Lever/Knob Design |
BHW Lever |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | LA |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
