Sargent 8238-BHW-US32D-LC Behavioral Health Mortise Lock, Classroom Security Intruder Latchbolt Function, BHW Trim, Less Cylinder, Satin Stainless Steel

  • SKU: 8238BHWUS32DRHLC

Sargent 8238-BHW-US32D-LC Behavioral Health Mortise Lock, Classroom Security Intruder Latchbolt Function, BHW Trim, Less Cylinder, Satin Stainless Steel

  • SKU: 8238BHWUS32DRHLC
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,553.50/ea
0% Net 30 Days: Apply Now
Handing: RH Right Hand

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 8238-BHW-US32D-LC Behavioral ...
Quantity
–
+
Sale price$1,553.50
Sargent Mortise Cylinders - Multiple ...
Quantity
–
+
Sale priceFrom $130.36
Total

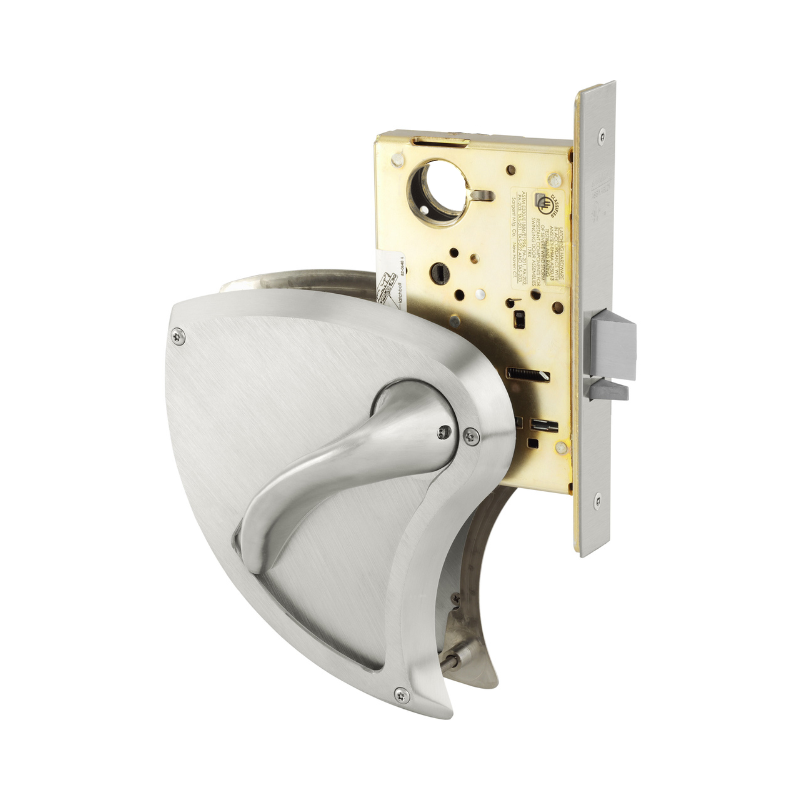

Sargent 8238-BHW-US32D-LC Classroom Security Intruder Mortise Lock, Outside Lever Locked or Unlocked by Key Either Side, Inside Lever Always Free, BHW Behavioral Health Trim, Less Cylinder, Grade 1, 630 Satin Stainless Steel

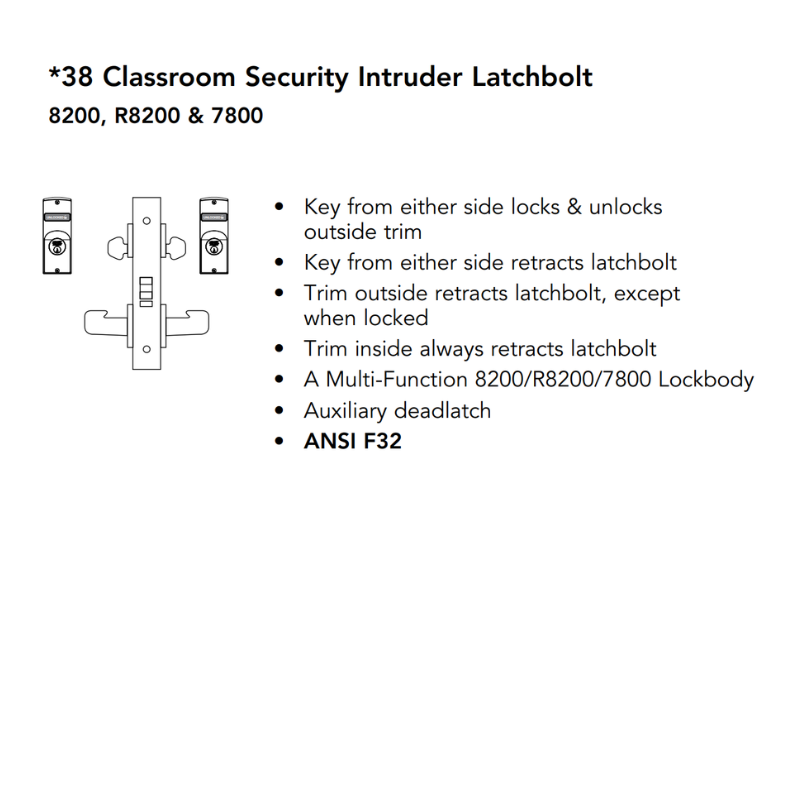

  • Classroom Security Intruder Latchbolt Function:
    • Key from either side locks & unlocks outside trim
    • Key from either side retracts latchbolt
    • Trim outside retracts latchbolt, except when locked
    • Trim inside always retracts latchbolt
    • A Multi-Function 8200/R8200/7800 Lockbody
    • Auxiliary deadlatch
  • Uses standard mortise prep
  • Less Cylinder
  • ANSI/BHMA Grade 1
  • Tapered surfaces on all components
  • Handed
  • ADA Compliant
  • 6 Lobe head security screws (Torx® type)
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Ligature Resistant
Base Material Stainless Steel
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}

Function 38 Classroom Security Intruder Latchbolt
Lever/Knob Design BHW Lever
Cylinder Type Less Cylinder
Handing Selected by Handing variant
Door Thickness 1-3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latch
Std. Strike Number 82-0110
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Mortise Lock

Cylinder Mortise Handing Chart
