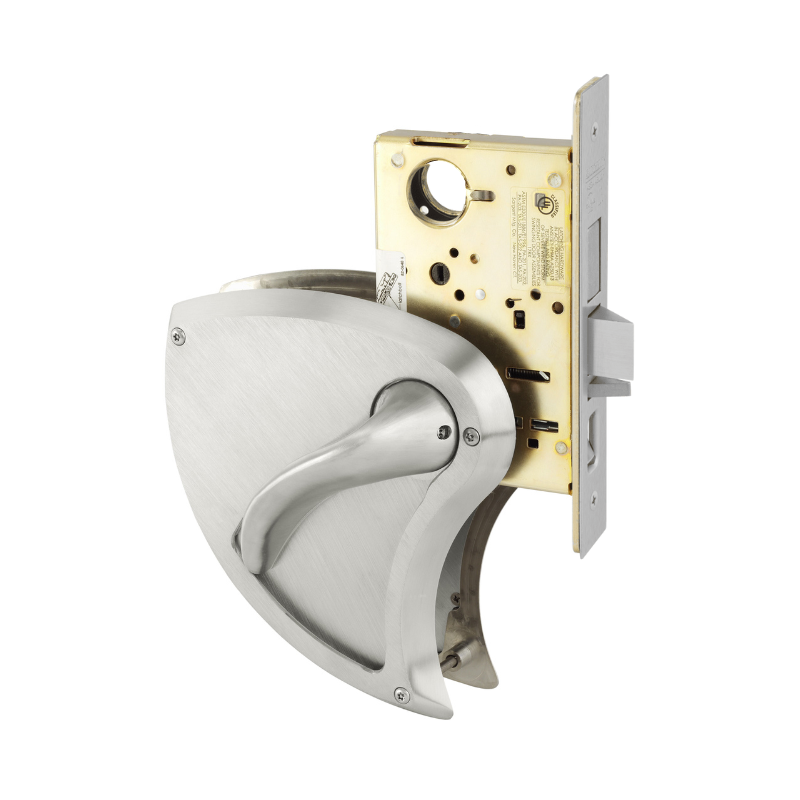

Sargent 8245-BHW-US32D-LC Behavioral Health Dormitory or Exit Function Mortise Lock, Key Retracts Latch, BHW Trim, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent 8245-BHW-US32D-LC Behavioral Health Mortise Lock features a dormitory or exit function with key retraction of the latch. It includes BHW trim, is supplied without a cylinder, and meets Grade 1 standards. Designed for ease of installation, it is field reversible and finished in satin stainless steel (630).

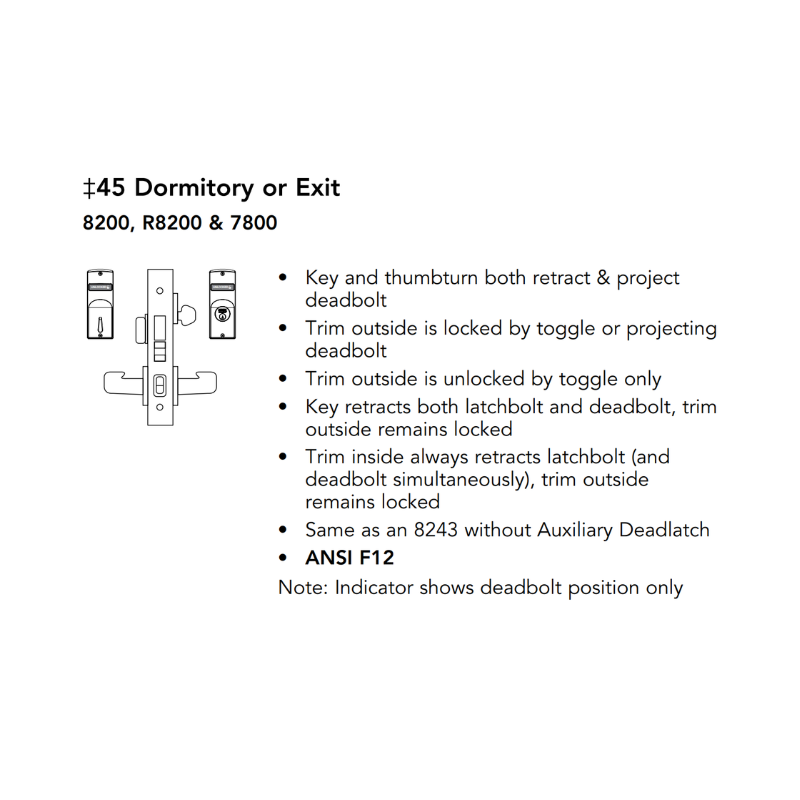

• Dormitory or Exit Function:
  • Key and thumbturn both retract & project deadbolt

  • Trim outside is locked by toggle or projecting deadbolt

  • Trim outside is unlocked by toggle only

  • Key retracts both latchbolt and deadbolt, trim outside remains locked

  • Trim inside always retracts latchbolt (and deadbolt simultaneously), trim outside remains locked
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
